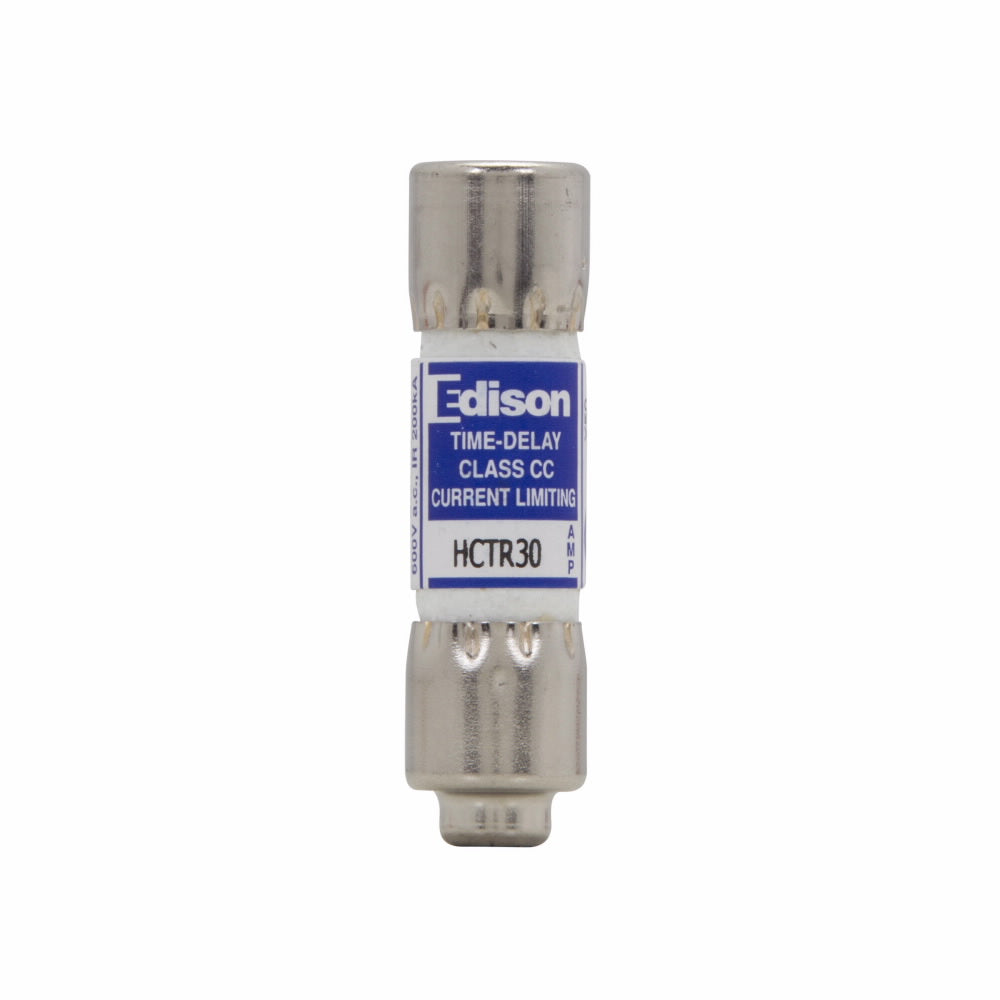

Edison Fuses HCTR30 - Class CC Fuse 30A 600V (200kA AIC)

Edison Fuses HCTR30 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC applications with a 30A current capacity, it features a compact cylindrical design measuring 1" (25.4mm) in length and 0.406" (10.3mm) in diameter with a single-barrel construction. This fuse meets industry standards with a 200kA interrupting capacity at 600V, providing reliable short-circuit protection. Its durable construction makes it suitable for motor control centers, industrial control panels, and power distribution equipment requiring Class CC protection.

Key Features & Specifications

• Type: Class CC time-delay fuse, single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 1" L × 0.406" W × 0.406" H (25.4 × 10.3 × 10.3mm)
• Weight: 1.02 lb
• Diameter: 0.41" (10.4mm)
• AIC Rating: 200kA@600V
• Standards: UL/CSA recognized
• Applications: Motor controls, industrial panels, power distribution

Product Identification

• UPC: 78263483901
• GTIN: 00782634839019
