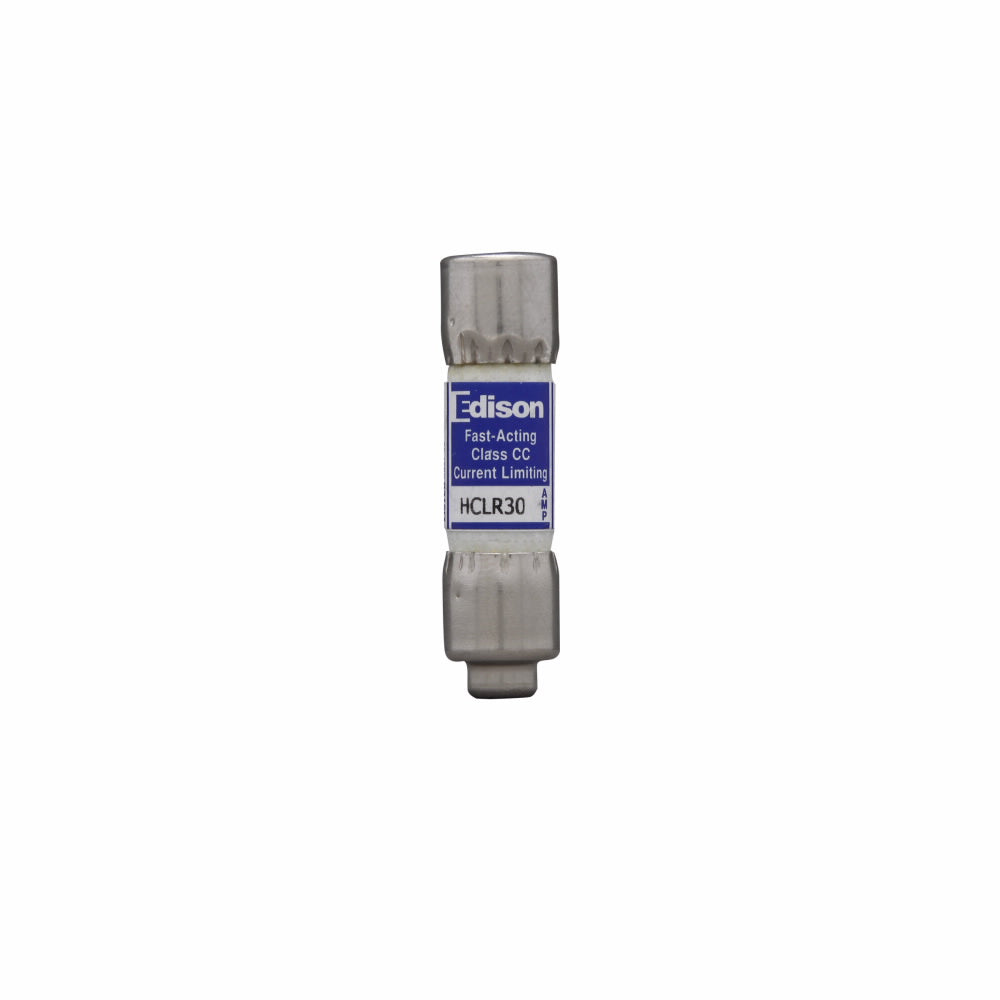

Edison Fuses HCLR30 - Class CC Fuse 30A 600V (200kA AIC Rating)

Edison Fuses HCLR30 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 30A current capacity with a high 200kA interrupting rating at 600V for reliable fault protection. The compact cylindrical design measures 1" x 0.406" x 0.406" (25.4mm x 10.3mm x 10.3mm) with a 0.41" (10.4mm) diameter, constructed with durable materials for harsh environments. This fuse meets industry standards for Class CC protection and is commonly used in control circuits, transformers, and motor branch circuits requiring precise overcurrent protection.

Key Features & Specifications

• Type: Class CC low-voltage current-limiting fuse
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 1" L x 0.406" W x 0.406" H (25.4mm x 10.3mm x 10.3mm)
• Diameter: 0.41" (10.4mm)
• Weight: 1.1 lb
• Barrels: 1
• AIC Rating: 200kA@600V
• Standards: UL/CSA Class CC
• Applications: Industrial control circuits, transformers, motor protection

Product Identification

• UPC: 78263442073
• GTIN: 00782634420736
