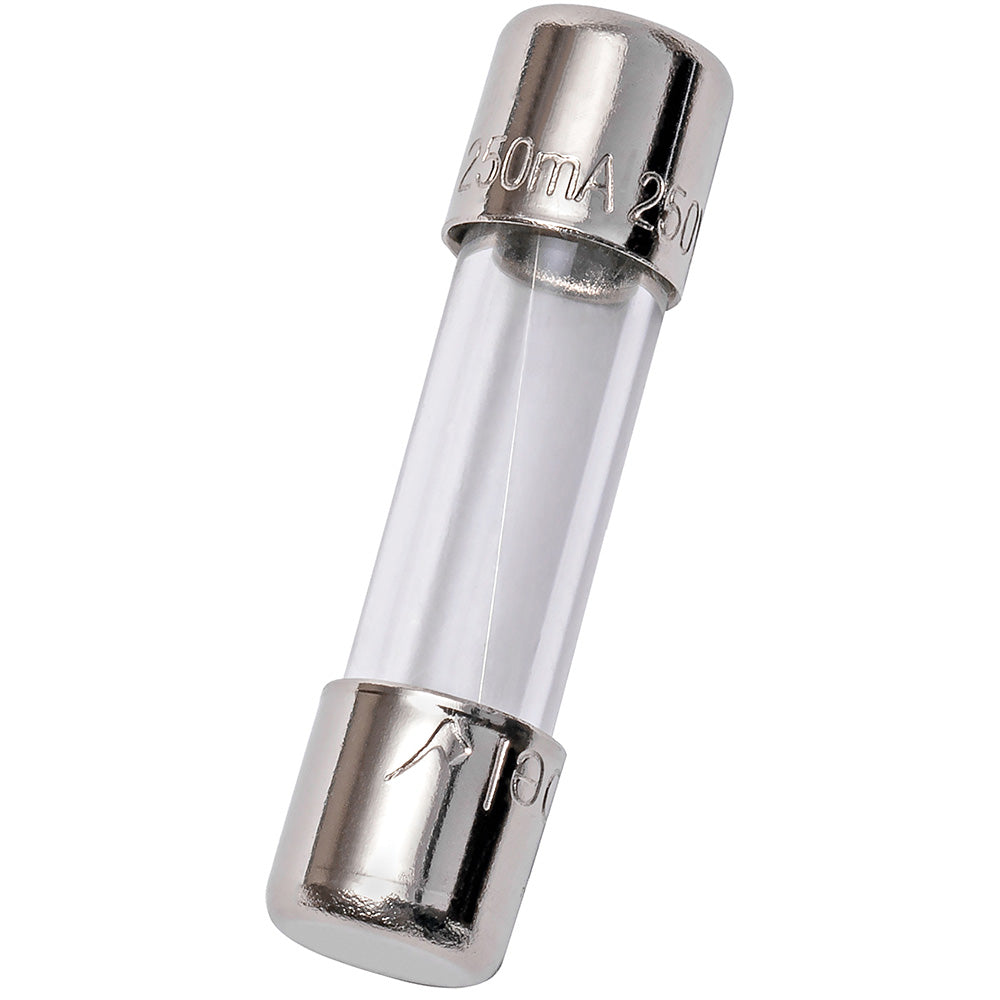

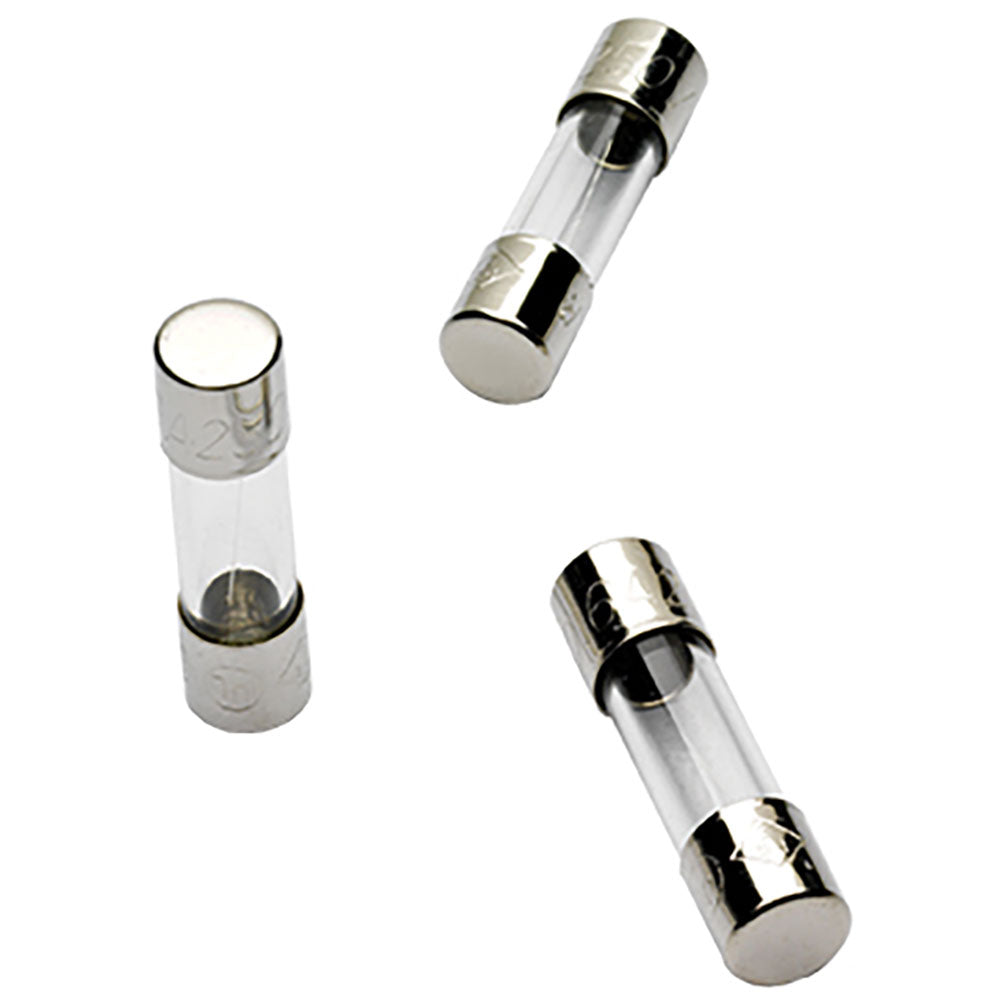

Ferraz Shawmut GGM25 - Low Voltage Fuse 25A@250V (100A AIC)

Ferraz Shawmut GGM25 is a low-voltage fuse designed for circuit protection in industrial applications, featuring a 25A current rating and 250V voltage rating. Its compact ferrule connection design measures 0.79 inches in length with a 5mm diameter, constructed for reliable performance in demanding environments. The fuse meets industry standards with a 100A interrupting capacity at 250V AC, providing robust short-circuit protection. Typical applications include motor control centers, power distribution panels, and industrial equipment requiring precise overcurrent protection.

Key Features & Specifications

• Type: GGM series ferrule-type low-voltage fuse
• Voltage Rating: 250V AC
• Current Rating: 25A
• Dimensions: 0.79 in length x 5mm diameter
• Weight: 0.01 lb
• Connection: Ferrule
• Barrels: 1
• AIC Rating: 100A@250Vac
• Standards: Industrial circuit protection
• Applications: Motor controls, power distribution, industrial equipment

Product Identification

• UPC: 78200136052
• GTIN: 00782001360528
