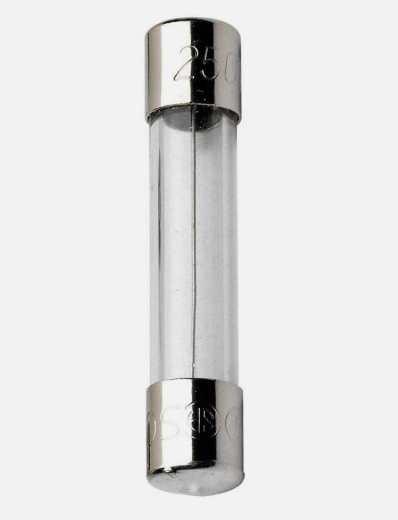

Cutler Hammer GGC6-3/10 - GGC Fuse 6A 250V (200kA AIC)

The Cutler Hammer GGC6-3/10 is a low-voltage current-limiting fuse designed to provide reliable overcurrent and short-circuit protection in electrical circuits. It features a 6A current rating and a 250V voltage rating, capable of interrupting faults with a 200kA AIC rating at 250V AC. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 1-1/2 inches in length with a 0.25-inch diameter, weighing 5.19 lb. It complies with UL and CSA certification standards, ensuring adherence to industry safety requirements. This fuse is typically applied in industrial control circuits, motor branch circuits, and other applications requiring precise current protection.

Key Features & Specifications

• Type: GGC Series current-limiting fuse, single barrel, ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 6A
• Dimensions: 1-1/2 inch length, 0.25 inch diameter
• Weight: 5.19 lb
• Standards: UL, CSA certified
• AIC Rating: 200kA @ 250V AC
• Connection: Ferrule
• Barrels: 1
• Family: GGC Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 782001769987
