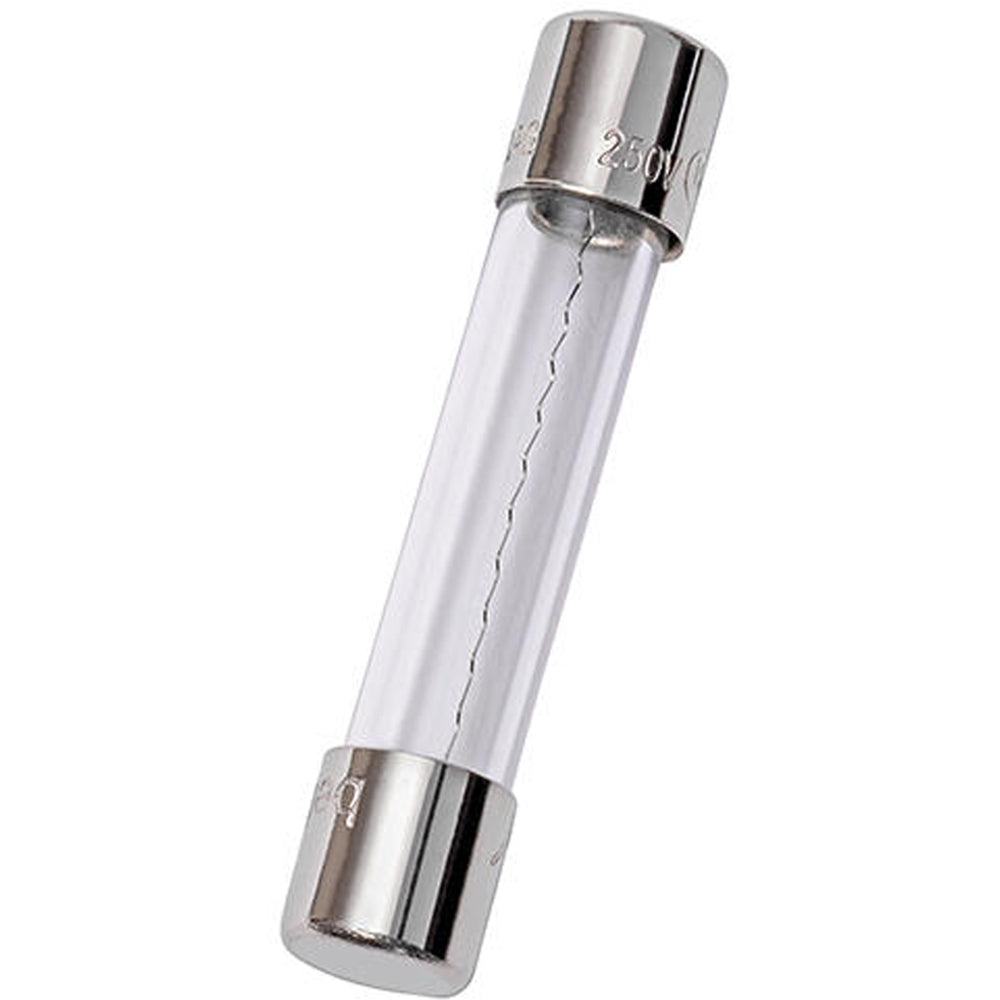

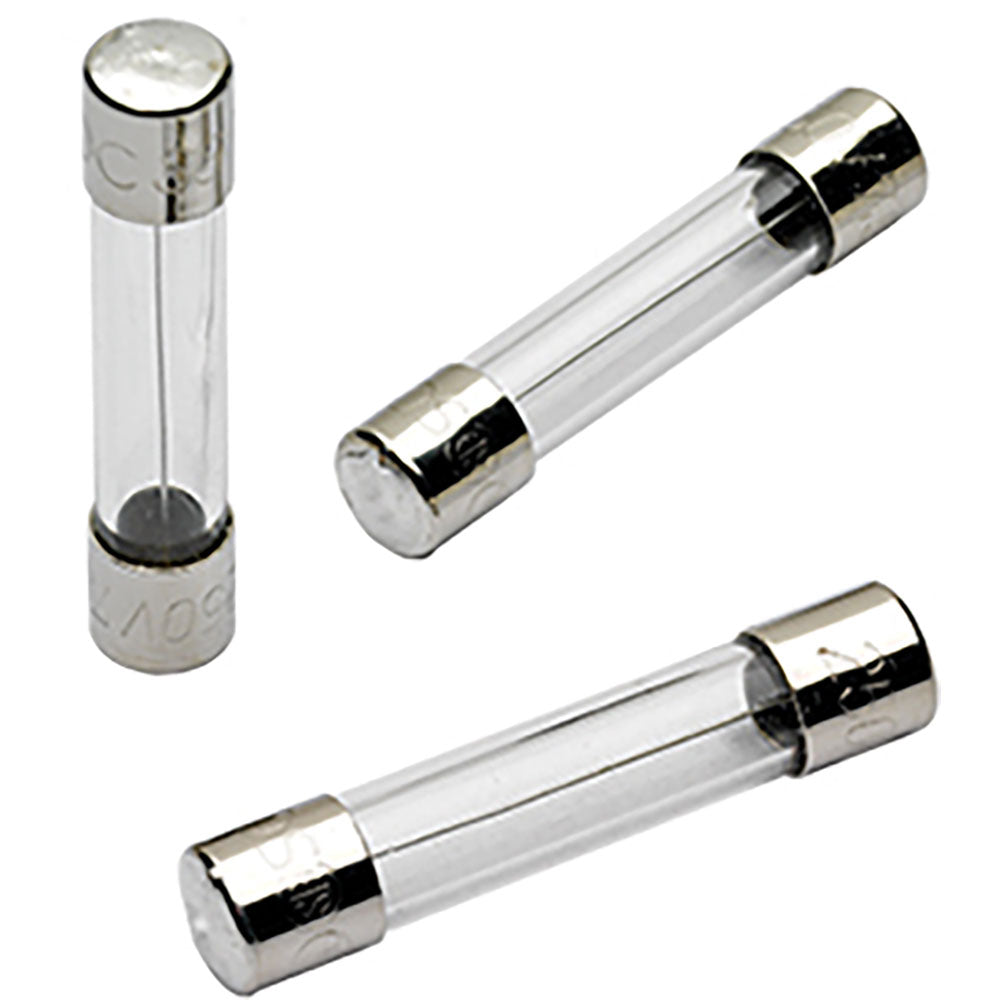

Cutler Hammer GGC5 - GGC Fuse 5A 250V (200kA AIC)

Cutler Hammer GGC5 is a low voltage current-limiting fuse designed for circuit protection in industrial applications. It provides reliable overcurrent protection with a 5A current rating and 250V voltage rating, featuring a compact ferrule connection design. The fuse measures 1-1/2 inches in length with 0.25-inch diameter construction and weighs 5 lb. It meets CSA and UL certification standards and offers 200kA interrupting capacity at 250V AC for robust fault protection in demanding industrial environments including motor control centers and power distribution systems.

Key Features & Specifications

• Type: GGC series current-limiting fuse with ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 5A
• Dimensions: 1-1/2 inch length x 0.25 inch diameter
• Weight: 5 lb
• Standards: CSA, UL certified
• Applications: Industrial circuit protection, motor control centers, power distribution
• AIC rating: 200kA@250Vac
• Connection: Ferrule
• Barrels: 1
• Family: GGC Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 782001760724
• GTIN: 00782001760724
