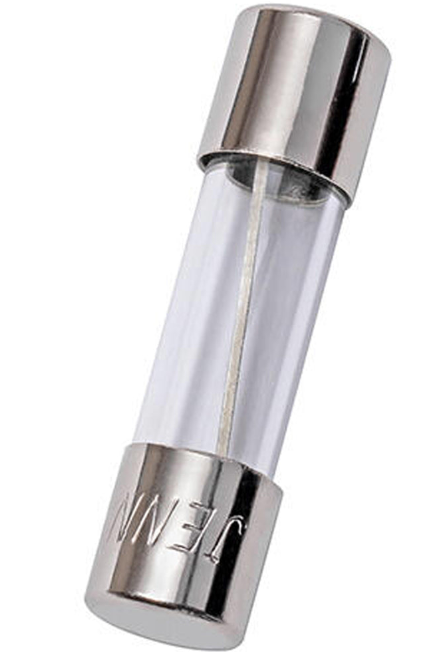

Cutler Hammer GGC3/4 - Low Voltage Fuse 3A 250V (200kA AIC Rating)

The Cutler Hammer GGC3/4 is a low-voltage current-limiting fuse designed to provide reliable overcurrent protection in industrial electrical systems. It features a 3A current rating and 250V voltage rating with a high 200kA interrupting capacity at 250V AC for superior short-circuit protection. The fuse is constructed with a single-barrel ferrule connection design, measuring 1-1/2 inches in length and 0.25 inches in diameter with a compact weight of 0.01 lb. This component complies with UL and CSA safety standards, ensuring industry-recognized reliability and performance. Typical applications include protection of control circuits, transformers, and other sensitive electrical equipment where precise current limitation is critical.

Key Features & Specifications

• Type: GGC Series current-limiting fuse with ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 3A
• Dimensions: 1-1/2 in length x 0.25 in diameter
• Standards: UL, CSA certified
• Applications: Control circuits, transformers, sensitive electrical equipment protection
• AIC rating: 200kA@250Vac
• Connection: Ferrule
• Barrels: 1
• Weight: 0.01 lb
• Family: GGC Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 78200176063
• GTIN: 00782001760632
