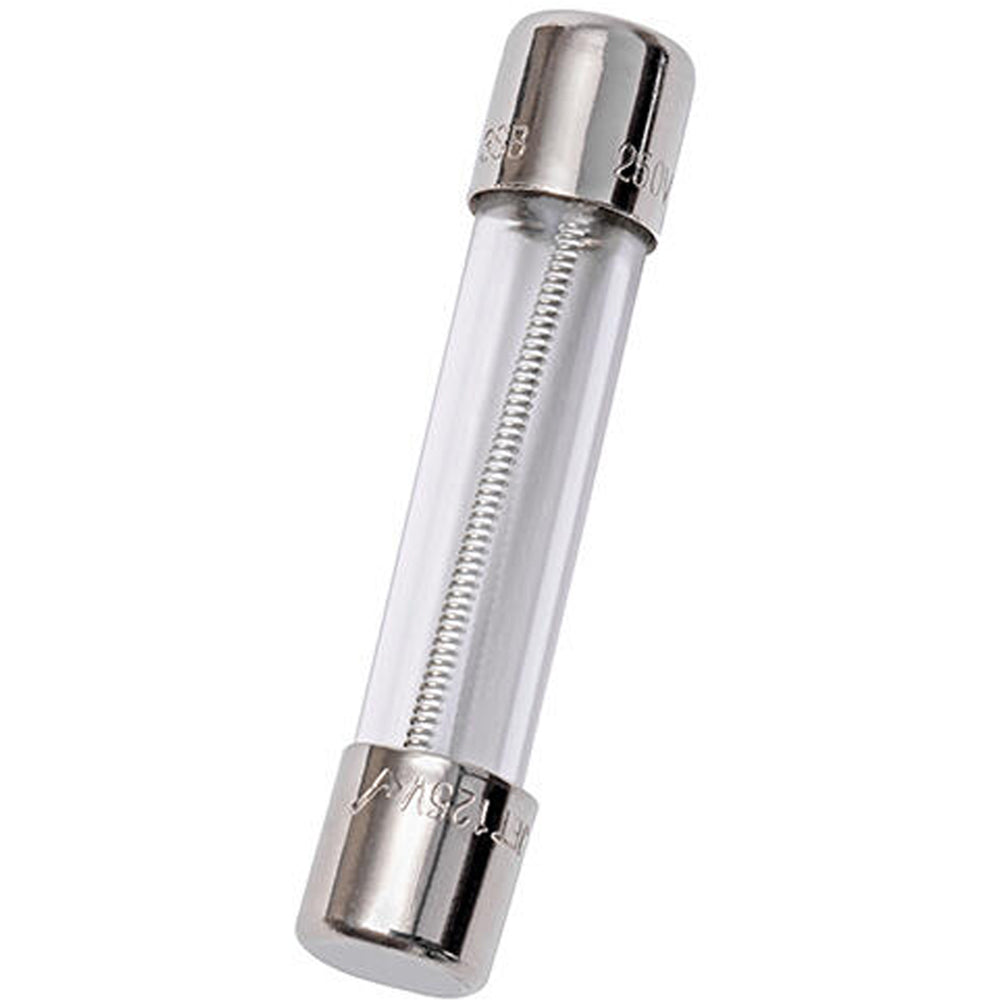

Mersen GDL2 - Time Delay Fuse 2A@250V (100kA AIC Rating)

Mersen GDL2 is a low-voltage time-delay fuse designed for circuit protection in industrial applications requiring sustained overload capability. The fuse operates at 250V AC with a 2A current rating and features a compact 1-1/4" body with 0.25" diameter construction. It carries UL and CSA certifications and provides 100kA interrupting rating at 250V AC for reliable protection. Typical applications include motor circuits, transformers, and power distribution systems where time-delay characteristics prevent nuisance blowing during temporary overloads.

Key Features & Specifications

• Type: GDL time-delay fuse with single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 2A
• Dimensions: 1-1/4" length x 0.25" diameter
• Standards: UL, CSA certified
• Applications: Motor protection, transformer circuits, power distribution
• AIC rating: 100,000A @ 250V AC
• Velocity: Time Delay
• Barrels: 1
• Weight: 5 lb
• Mounting: Standard fuse clip
• Certification: UL, CSA

Product Identification

• UPC: 782001763268
• GTIN: 00782001763268
