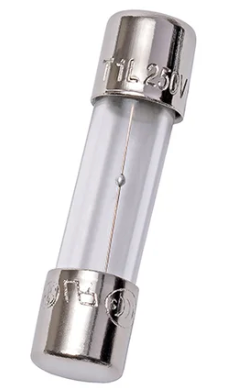

Cutler Hammer GDG8/10 - Low Voltage Fuse 8A 250V (35kA AIC Rating)

Cutler Hammer GDG8/10 is a low voltage current-limiting fuse designed for overcurrent protection in industrial electrical systems. It features a 250V AC voltage rating with an 8A current rating and provides high interrupting capacity of 35kA at 250V AC. The fuse employs a ferrule connection type and compact physical design measuring 5mm in diameter by 20mm in length with a weight of 0.005 lb. This GDG series fuse meets industry standards for reliable performance in demanding applications including motor protection, transformer circuits, and industrial control panels where precise overcurrent protection is required.

Key Features & Specifications

• Type: GDG current-limiting fuse with ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 8A
• Dimensions: 5mm diameter x 20mm length
• Weight: 0.005 lb
• AIC Rating: 35kA@250V AC
• Connection: Ferrule
• Family: GDG Series
• Item Subcategory: Low Voltage Fuse
• Country of Origin: China

Product Identification

• UPC: 78200176439
• GTIN: 00782001764395
