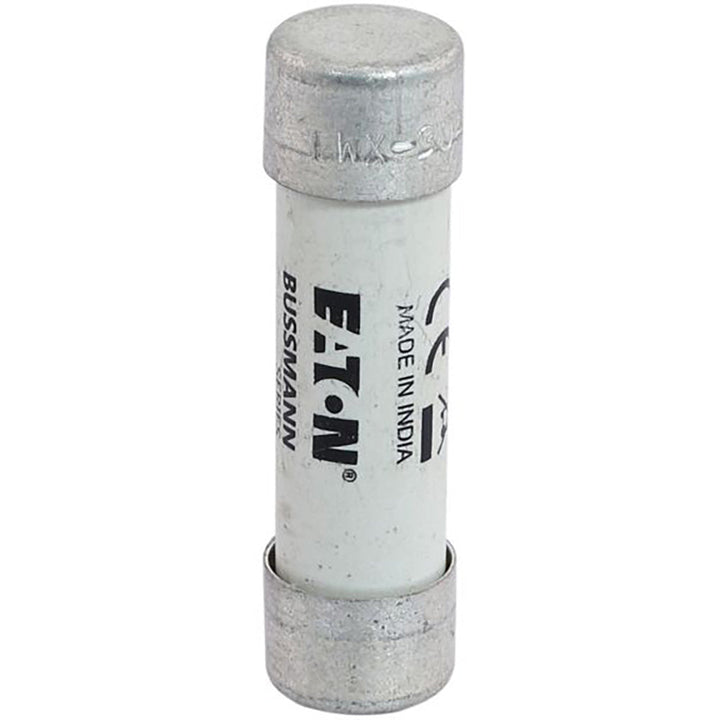

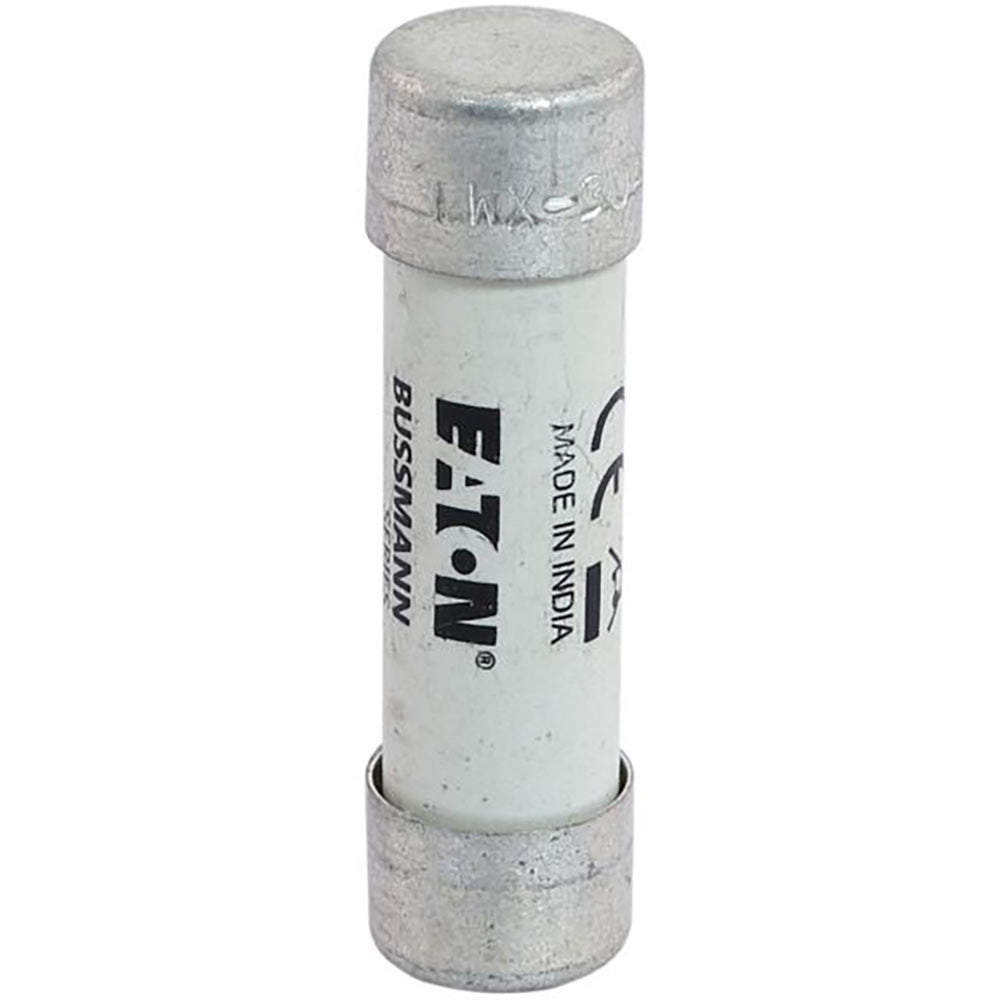

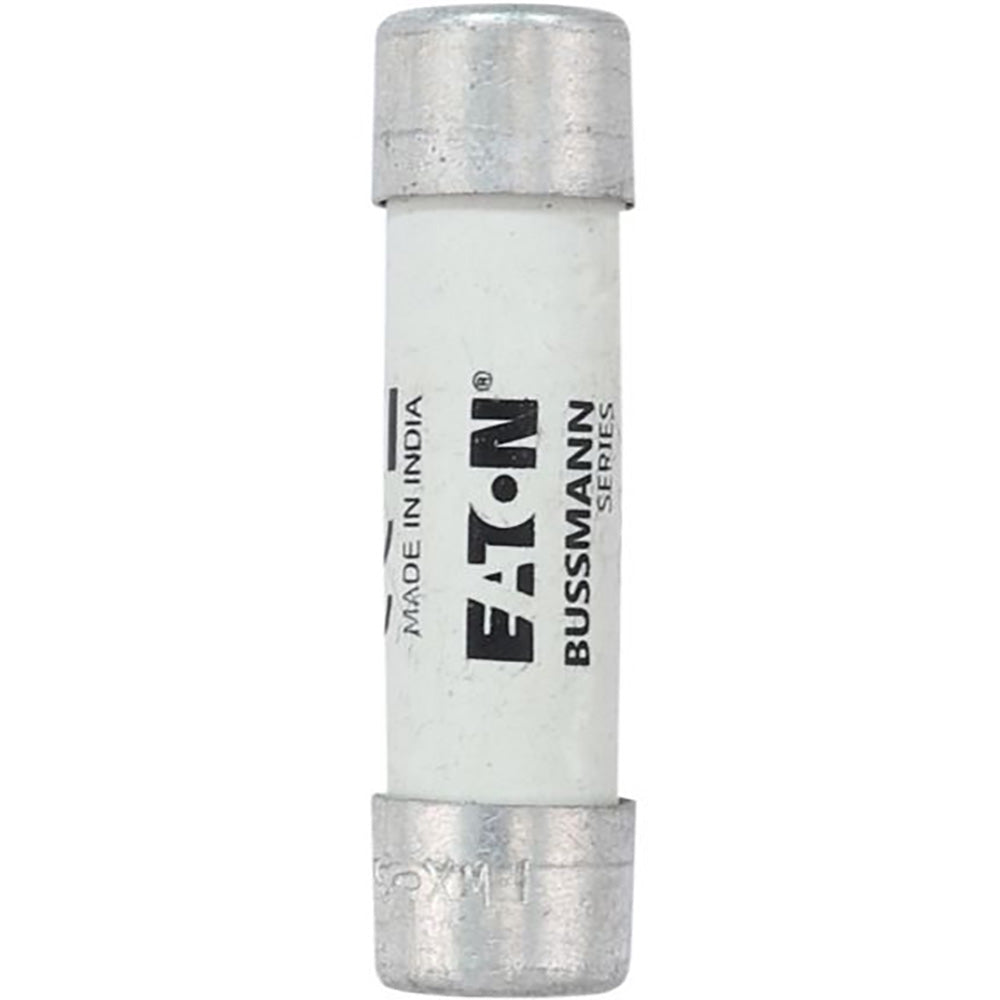

Cooper Bussmann FWX-30A14F - Class R Fuse 30A (200kA AIC @250V)

Cooper Bussmann FWX-30A14F is a Class R low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 250V AC/DC voltage rating and 30A current rating, with a compact ferrule connection design measuring 2 inches in length and 0.56 inches in diameter. The fuse meets CE, CSA, and UL standards with a 200kA interrupting capacity at 250V, constructed for reliable overcurrent protection in demanding environments. Typical applications include motor control centers, switchgear, and power distribution panels requiring Class R rejection capabilities.

Key Features & Specifications

• Type: Class R time-delay fuse with ferrule terminals
• Voltage Rating: 250V AC/DC
• Current Rating: 30A
• Dimensions: 2 in length x 0.56 in diameter
• Standards: CE, CSA Certified, UL Recognized
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@250V
• Connection: Ferrule
• Barrels: 1
• Class Rating: R
• Weight: 1 lb
• Country of Origin: India

Product Identification

• UPC: 05171279560
• GTIN: 00051712795609
