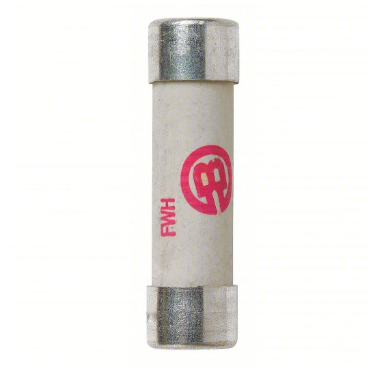

Bussmann FWH5-12-5A6FR - Current-Limiting Fuse 12.5A (50kA@500V Interrupting Rating)

Bussmann FWH5-12-5A6FR is a low-voltage current-limiting fuse designed for protecting sensitive electrical equipment and conductors from short-circuit faults. It features a 500V AC voltage rating with a 12.5A current rating and provides very fast-acting (VFA) interruption to clear high-level faults. The fuse construction utilizes a single-barrel design with ferrule connections, measuring 0.25 inches in diameter and weighing 5.19 lb, built to withstand industrial environments. This fuse meets industry standards for current-limiting performance with an interrupting rating of 50kA at 500V AC. Typical applications include protection of motor controllers, transformers, and power distribution components where rapid fault clearing is critical.

Key Features & Specifications

• Type: Current-limiting fuse, single barrel, ferrule connection, very fast-acting (VFA)
• Voltage Rating: 500V AC
• Current Rating: 12.5A
• Dimensions: 0.25 inches diameter
• Standards: Current-limiting fuse standards
• Applications: Motor controllers, transformers, power distribution components
• AIC rating: 50kA@500V
• Connection: Ferrule
• Barrels: 1
• Velocity: VFA - Very Fast Action
• Weight: 5.19 lb
