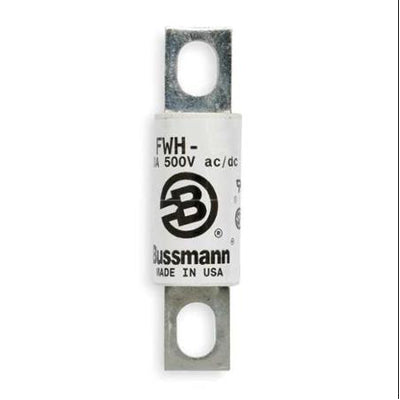

Bussmann FWH-60A - FWH Series Fuse 60A (200kA AIC @ 500V)

Bussmann FWH-60A is a low voltage fuse designed for industrial circuit protection applications requiring reliable overcurrent interruption. This fuse features a 60A current rating and 500V voltage rating with a high 200kA interrupting capacity at 500V AC for robust short-circuit protection. Constructed with a single barrel design and 0.75-inch diameter, it measures 3-3/16 inches in length and utilizes bolt-in connection terminals for secure installation. The fuse meets CE, CSA, and UL recognition standards, ensuring compliance with international safety requirements. Typical applications include industrial control panels, motor branch circuits, and power distribution systems where dependable overcurrent protection is critical.

Key Features & Specifications

• Type: FWH Series low voltage fuse, single barrel construction
• Voltage Rating: 500V AC
• Current Rating: 60A
• Dimensions: 3-3/16 inches length, 0.75 inches diameter
• Standards: CE, CSA Certified, UL Recognized
• Applications: Industrial control panels, motor circuits, power distribution
• Connection: Bolt-In
• AIC rating: 200kA@500Vac
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Certified, UL Recognized

Product Identification

• UPC: 051712150040
• GTIN: 00051712150040
