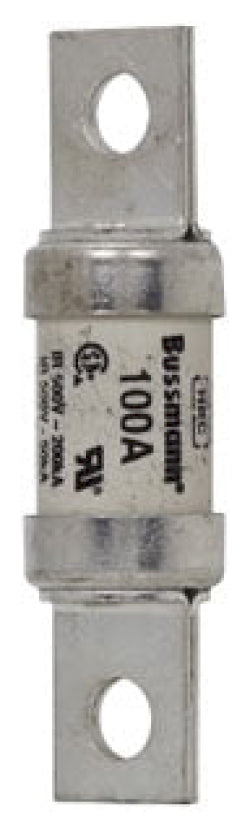

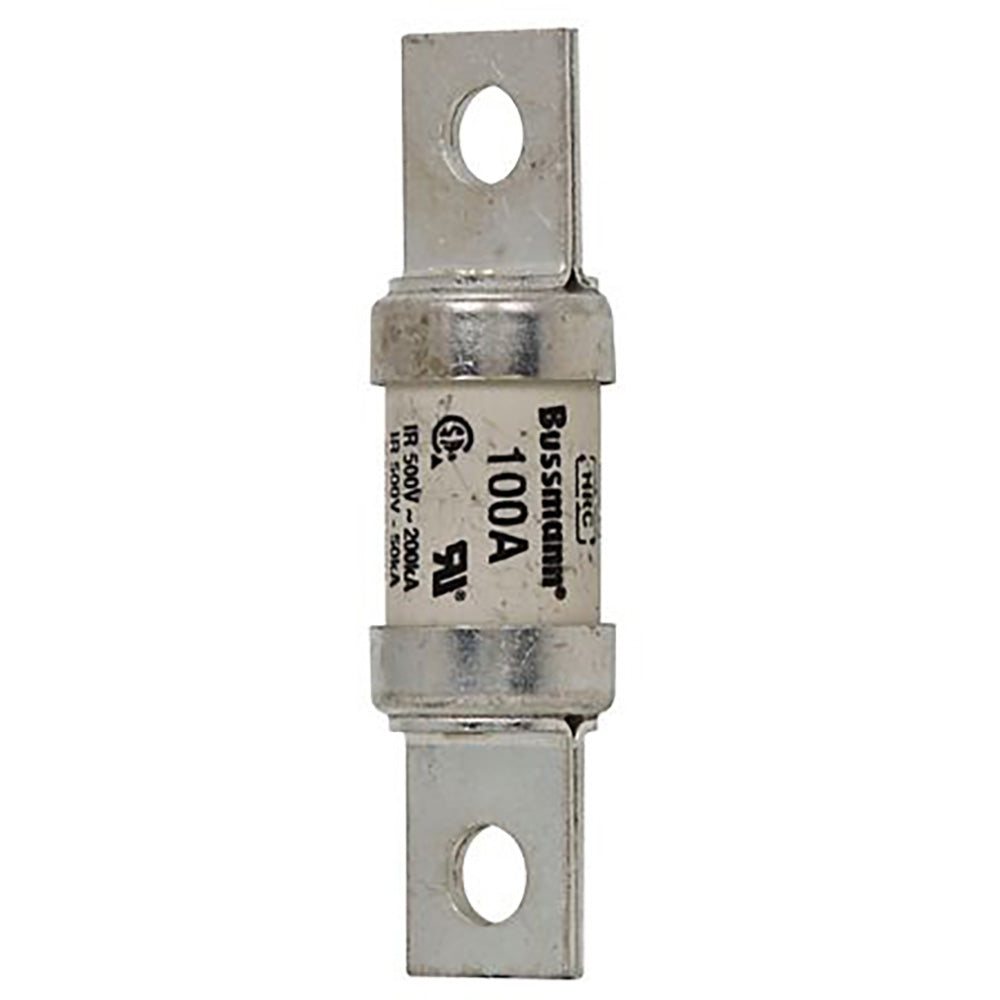

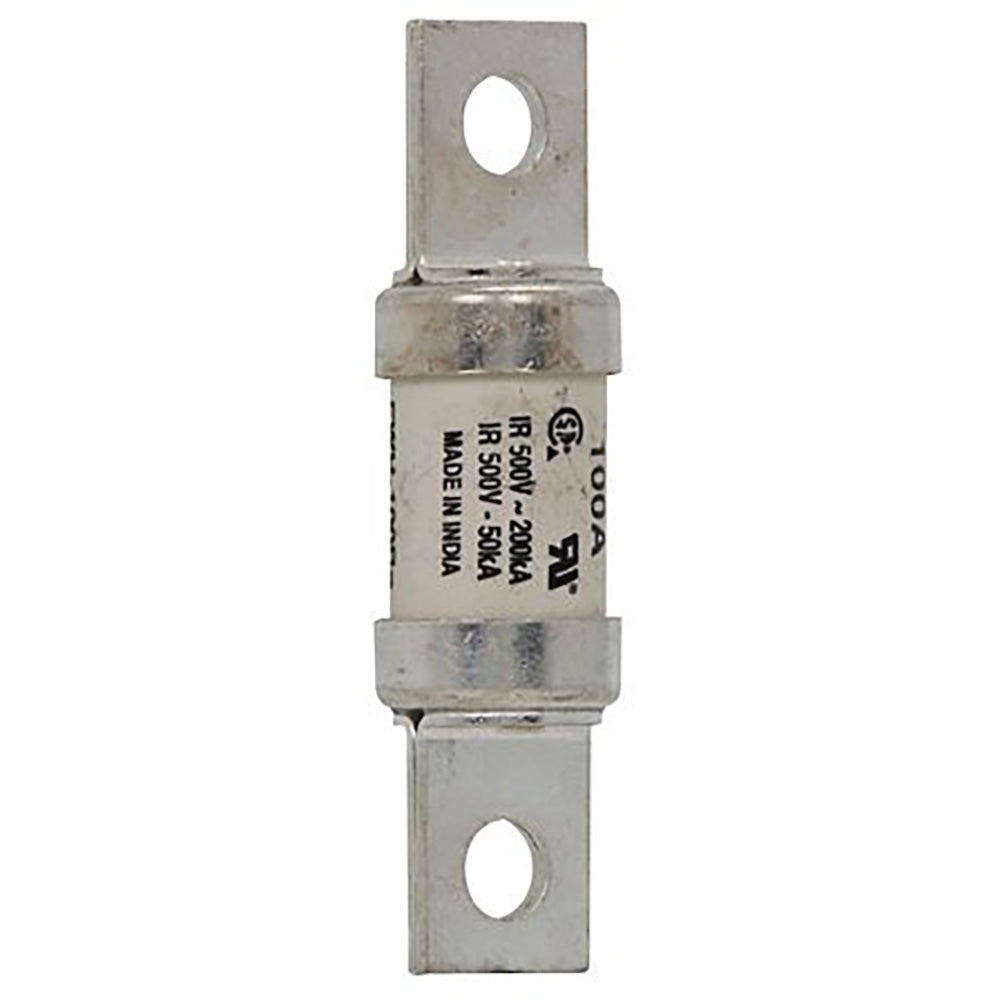

Bussmann FWH-100B - Class FWH Fuse 100A (200kA@500V AIC)

The Bussmann FWH-100B is a Class FWH low-voltage fuse designed to provide reliable overcurrent protection in industrial power distribution systems. It features a 100A current rating and 500V voltage rating with an impressive 200kA interrupting capacity at 500V for high-fault current protection. The fuse construction utilizes a single-barrel design with stud connections, measuring 0.94 inches in diameter and weighing 5 lb for robust industrial durability. Engineered to meet stringent industrial standards, this fuse is UL listed and certified for safe operation in demanding environments. Typical applications include motor control centers, industrial control panels, and power distribution equipment where high-interrupting capacity protection is required.

Key Features & Specifications

• Type: Class FWH low-voltage fuse, single-barrel construction with stud connection
• Voltage Rating: 500V AC
• Current Rating: 100A
• Dimensions: 0.94 inches diameter
• Standards: UL listed, industrial compliance
• Applications: Industrial power distribution, motor control centers, control panels
• AIC rating: 200kA@500V
• Connection: Stud
• Barrels: 1
• Weight: 5 lb
• Family: FWH Series

Product Identification

• UPC: 051712795821
• GTIN: 00051712795821
