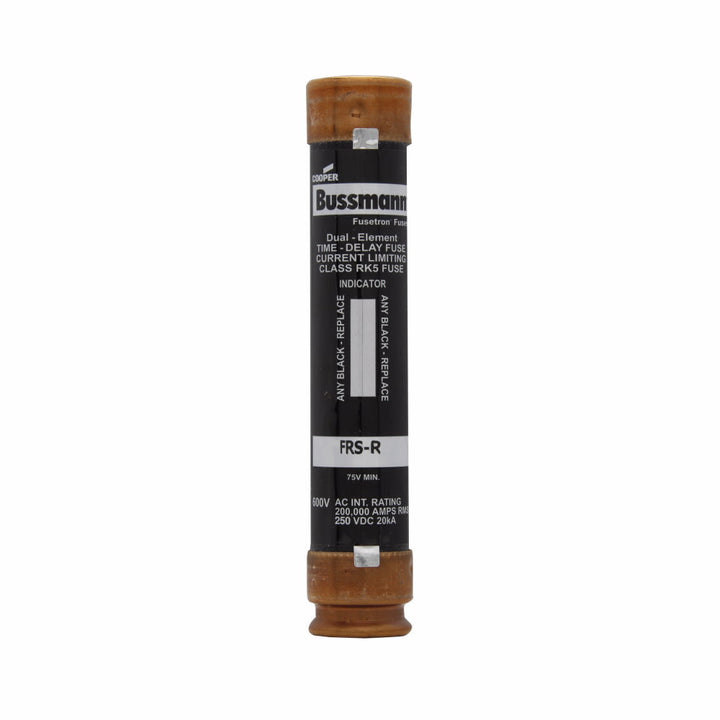

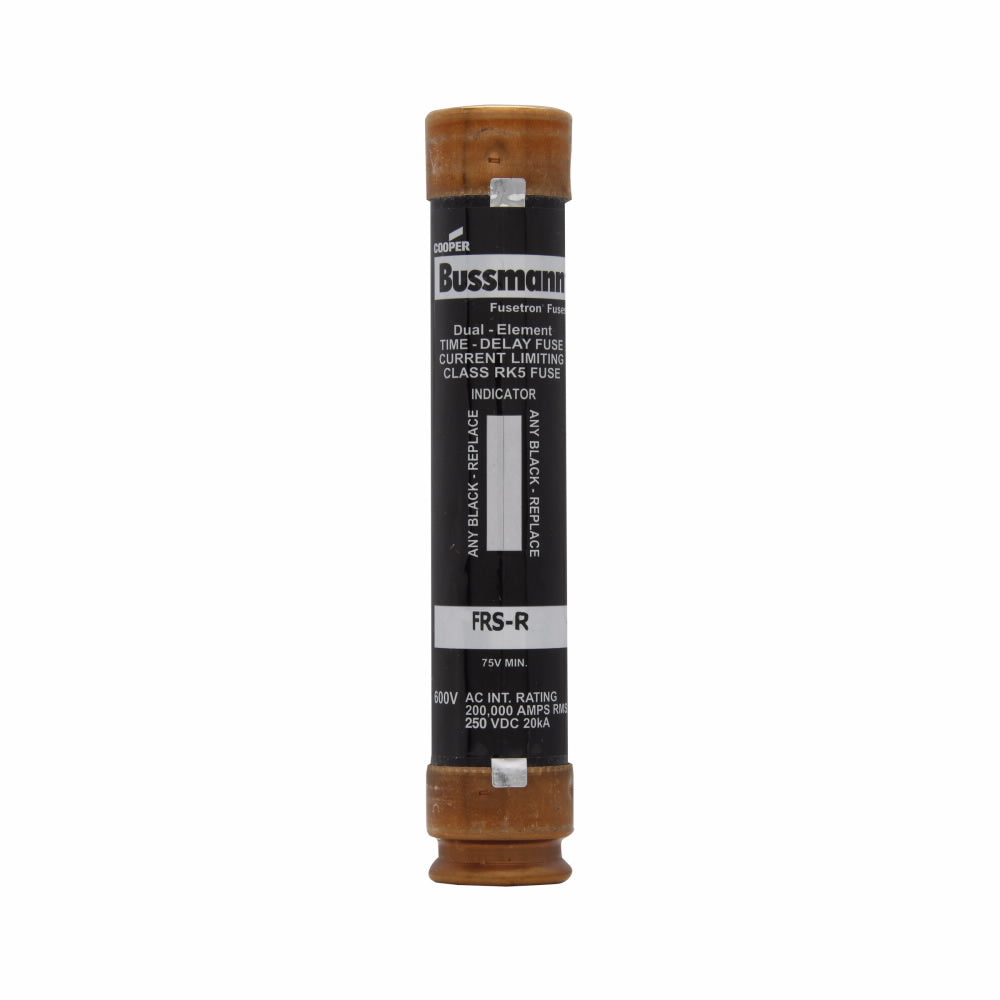

Cooper Bussmann FRS-R-35ID - RK5 Current-Limiting Fuse 35A 600V (200kA AIC)

Cooper Bussmann FRS-R-35ID is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class fuse features a 600V AC rating with a 35A current capacity and 200kA interrupting rating at 600V for robust short-circuit protection. The single-barrel design measures 5-1/2 inches in length with a 0.41-inch diameter, constructed to meet UL 248-12, CSA Class 1422-01, and CE standards. Its current-limiting characteristics make it suitable for protecting motor circuits, transformers, and feeder circuits in commercial and industrial power distribution systems.

Key Features & Specifications

• Type: Current-limiting fuse, RK5 class, single-element design
• Voltage Rating: 600V AC
• Current Rating: 35A
• Dimensions: 5-1/2 in length x 0.41 in diameter
• Weight: 2 lb
• Standards: UL 248-12 (Guide JDDZ), CSA Class 1422-01, CE
• AIC Rating: 200kA at 600V
• Construction: Single barrel design
• Applications: Motor circuit protection, transformer protection, feeder circuits
• Country of Origin: Mexico

Product Identification

• UPC: 05171220461
• GTIN: 00051712204613
