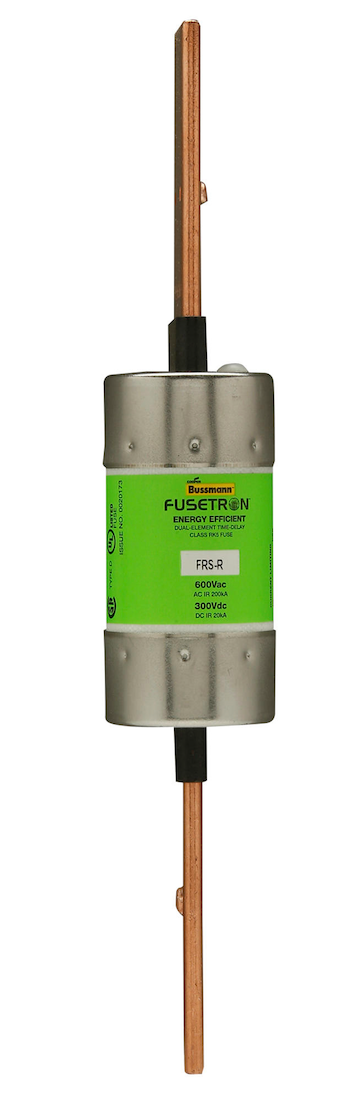

Bussmannn FRS-R-200 - Fusetron Time-Delay Fuse 200A (200kA@600V Interrupting Rating)
Regular price
$68.31
$68.31
Regular price
$359.86
$359.86
Sale price
$68.31
$68.31
Save $291.55
/
- In stock, ready to ship
- Backordered, shipping soon
Bussmannn FRS-R-200 is a Fusetron time-delay fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 200A current capacity and 200kA interrupting rating, housed in a 1.61-inch diameter, 9-5/8-inch long RK5-class barrel. The fuse meets CE, CSA Class 1422-01, and UL 248-12 standards, with construction optimized for motor circuits and transformer protection applications.
Key Features & Specifications
Key Features & Specifications
- Type: Time-delay low-voltage fuse (RK5 class)
- Voltage Rating: 600V AC
- Current Rating: 200A
- Dimensions: 9-5/8 in length, 1.61 in diameter
- Standards: CE, CSA Class 1422-01, UL 248-12 Guide JDDZ
- Applications: Motor circuits, transformer protection
- Class Rating: RK5
- AIC rating: 200kA@600V
- Barrels: 1
- Weight: 1 lb
- Country of Origin: Mexico
- UPC: 051712508483
- GTIN: 00051712508483
