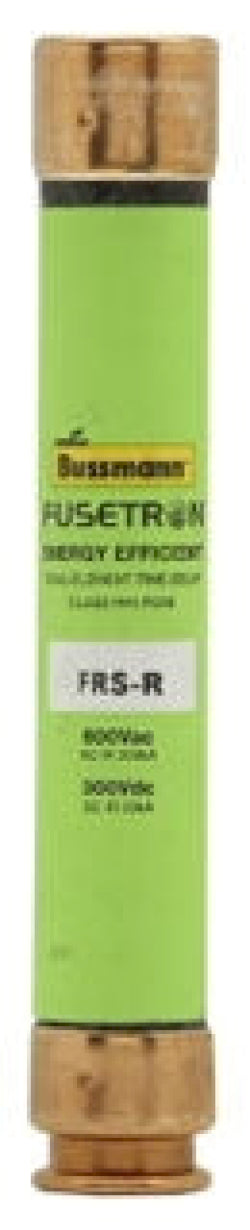

Bussmann FRS-R-2/10 - RK5 Time-Delay Fuse 2A 600V (200kA AIC)
Regular price
$15.29
$15.29
Regular price
$109.52
$109.52
Sale price
$15.29
$15.29
Save $94.23
/
- In stock, ready to ship
- Backordered, shipping soon
The Bussmann FRS-R-2/10 is a time-delay, low-voltage fuse from the Fusetron family designed to provide reliable circuit protection for motors and transformers against overloads and short-circuits. It features a 600V AC voltage rating and a 2A current rating, ensuring compatibility with a wide range of industrial control circuits. The fuse is constructed with a single-barrel design, measuring 5 inches in length and 0.81 inches in diameter, and has a weight of 1 lb. It complies with CE, CSA Certification Class 1422-01, and UL 248-12 Guide JDDZ standards, guaranteeing adherence to rigorous safety and performance requirements. This RK5 class fuse is typically applied in industrial settings for the protection of motor circuits, control transformers, and branch circuits where a high interrupting rating of 200kA at 600V is necessary.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Time-delay, low-voltage fuse, single barrel, Fusetron family
- Voltage Rating: 600V AC
- Current Rating: 2A
- Dimensions: 5 in length, 0.81 in diameter
- Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
- Applications: Motor circuit protection, control transformers, industrial branch circuits
- Class Rating: RK5
- AIC rating: 200kA @ 600V
- Barrels: 1
- Weight: 1 lb
- Country of Origin: Mexico
Product Identification
- UPC: 051712508025
- GTIN: 00051712508025
