Bussmann FRN-R-600 - Fusetron Time-Delay Fuse 600A RK5 Class (250V 20kA AIC)

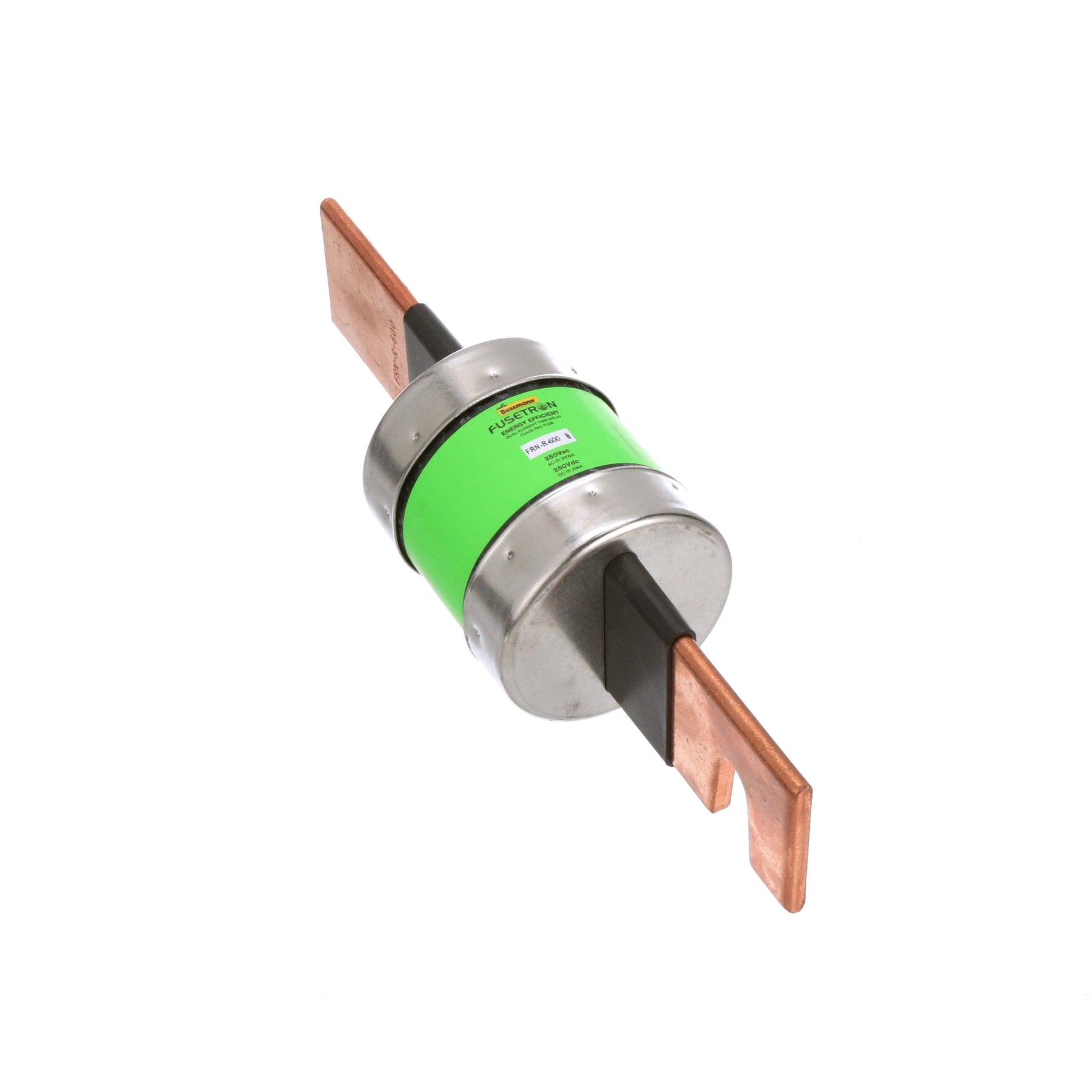

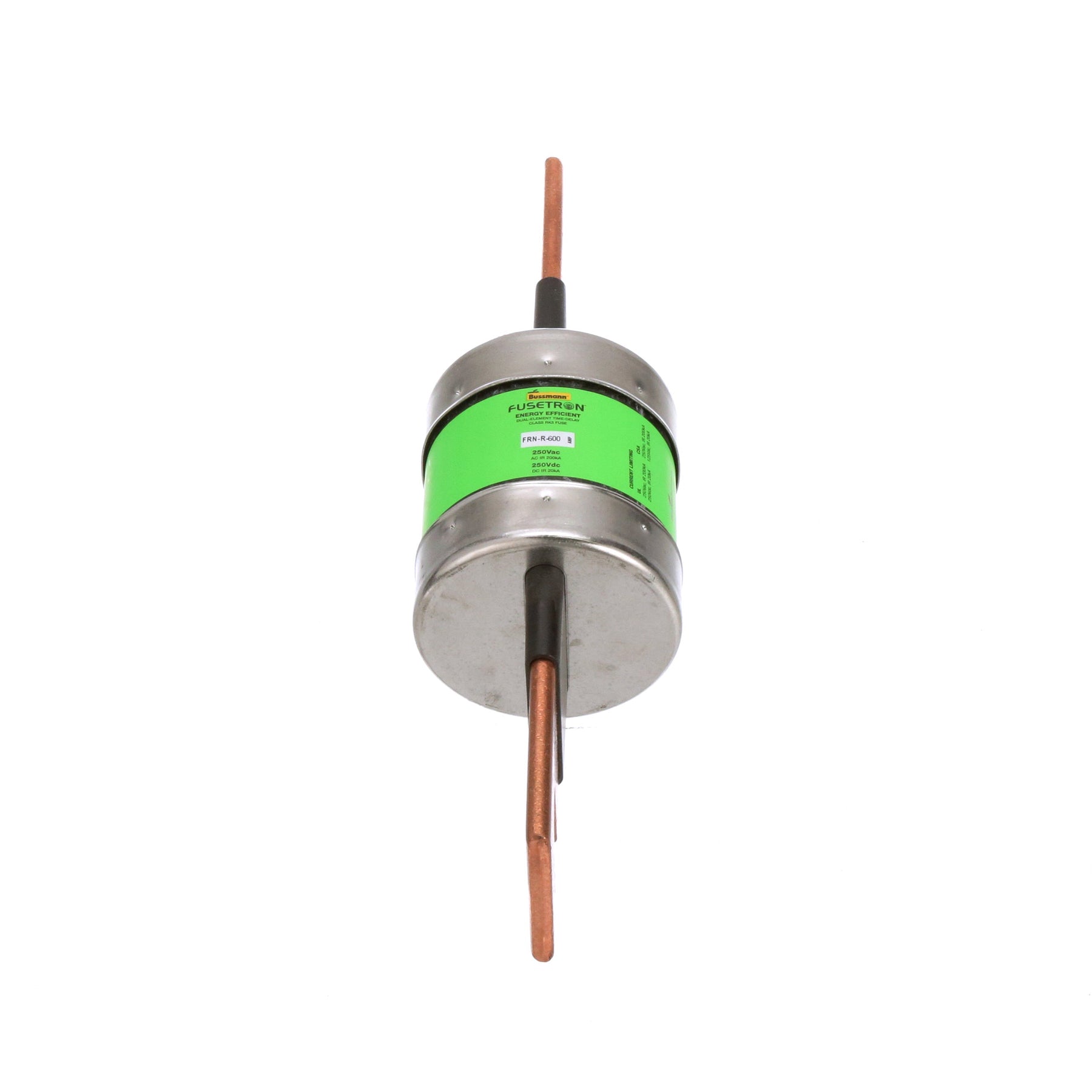

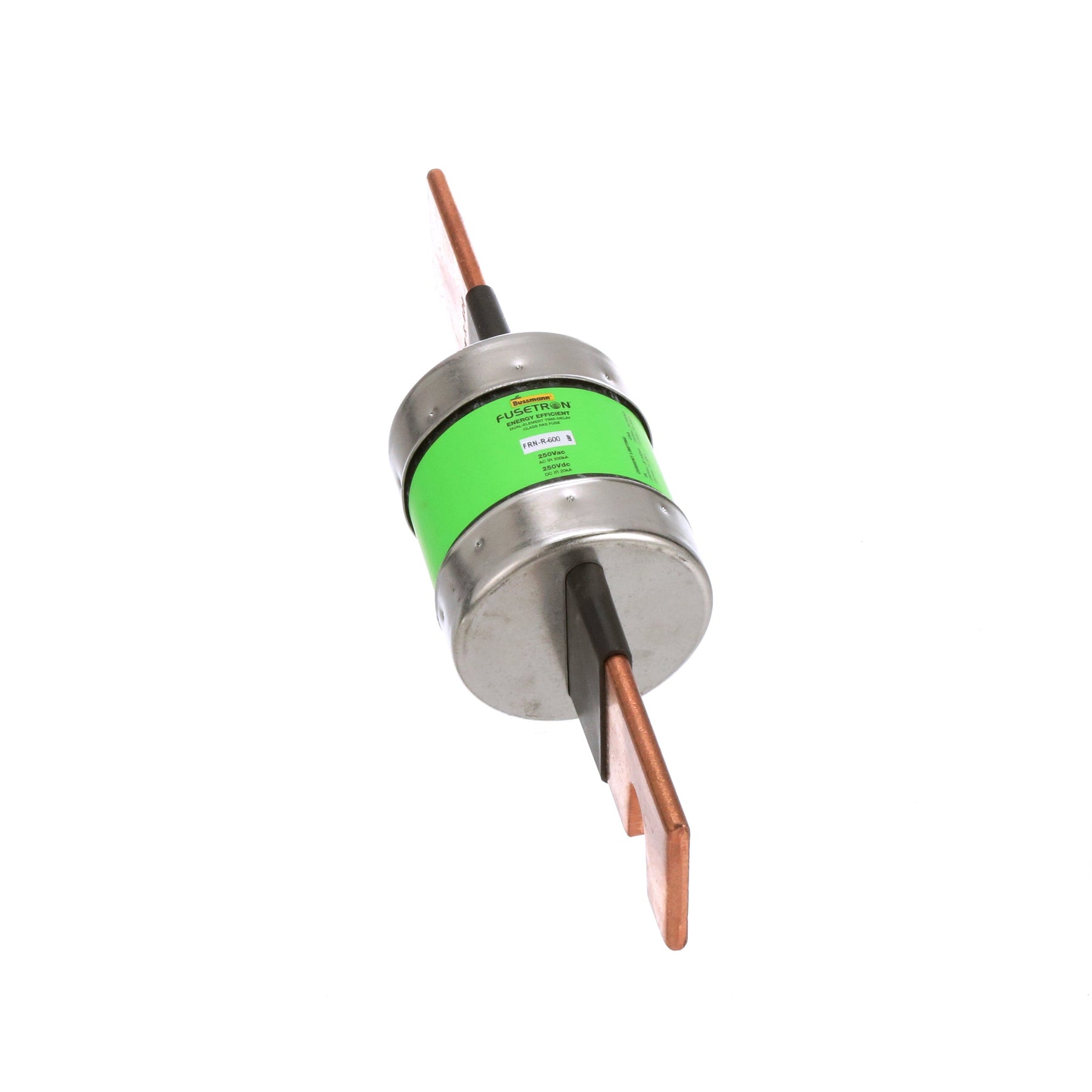

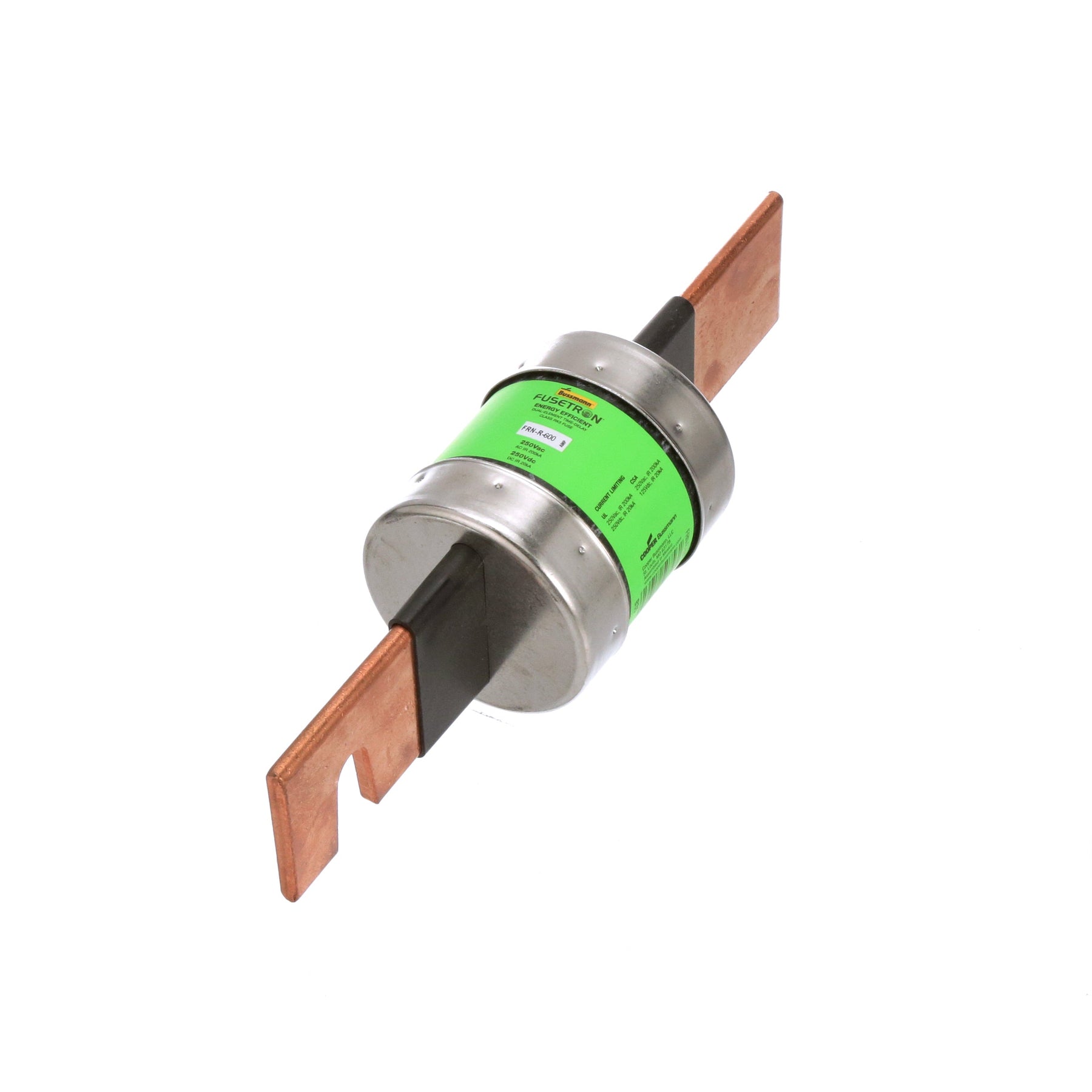

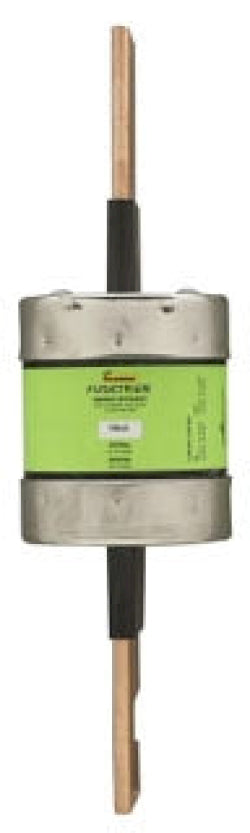

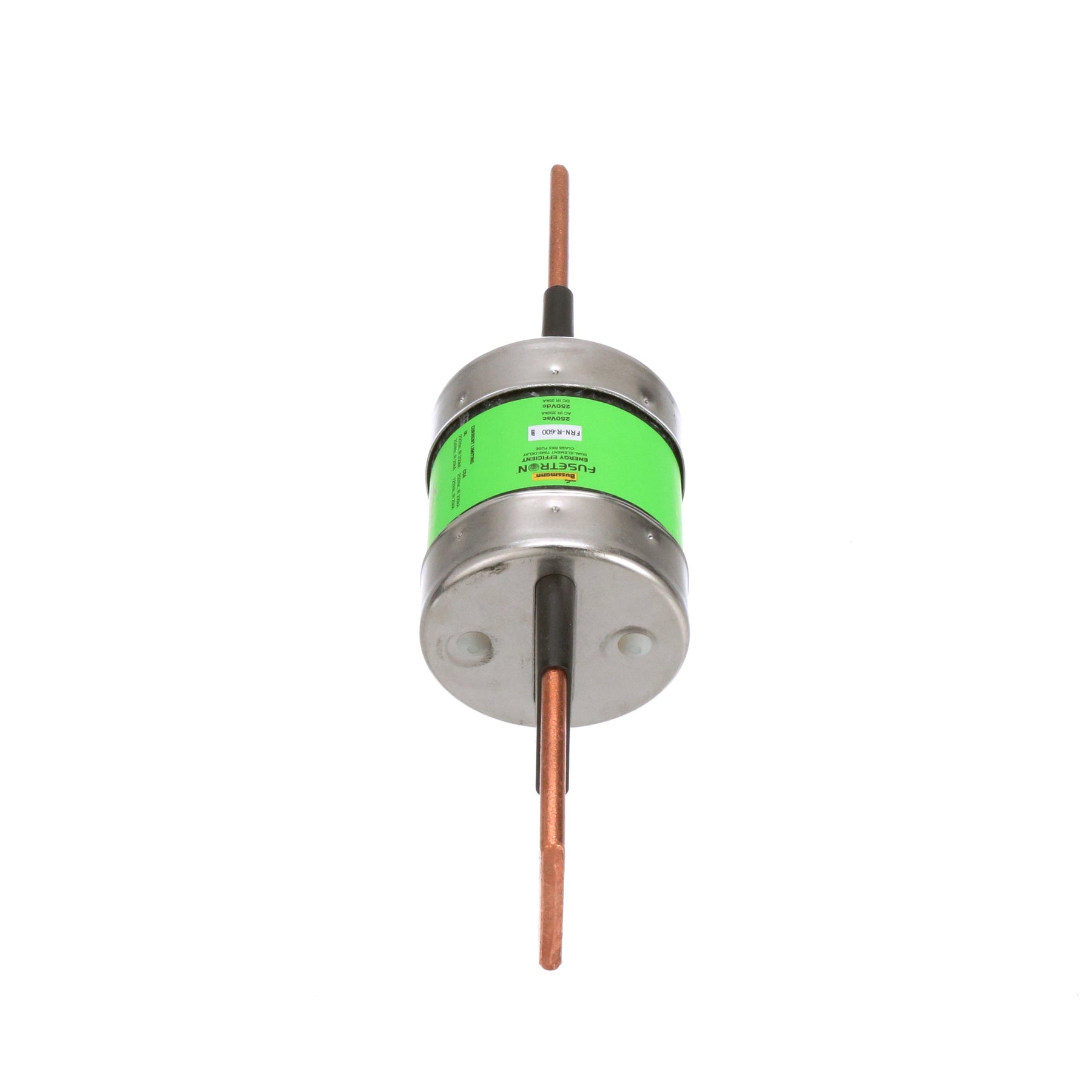

Bussmann FRN-R-600 is a time-delay, low-voltage fuse from the Fusetron family designed to provide reliable circuit protection for industrial power distribution systems. It features a 600A current rating and 250V voltage rating with a high interrupting capacity of 20kA at 250V DC, ensuring robust performance under fault conditions. The fuse construction includes a single-barrel design with a 2.88-inch diameter and 10-3/8-inch length, weighing 3 lb for durable industrial use. It meets CE, CSA Certification Class 1422-01, and UL 248-12 Guide JDDZ standards, ensuring compliance with rigorous safety requirements. Typical applications include motor branch circuits, feeders, and other industrial equipment requiring RK5 class protection with time-delay characteristics.

Key Features & Specifications

• Type: Time-delay, low-voltage fuse, single-barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 600A
• Dimensions: 10-3/8 inches length, 2.88 inches diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
• Applications: Industrial power distribution, motor branch circuits, feeders
• AIC rating: 20kA@250Vdc
• Class Rating: RK5
• Barrels: 1
• Weight: 3 lb
• Family: Fusetron
• Country of Origin: Mexico

Product Identification

• UPC: 051712507561
• GTIN: 00051712507561
