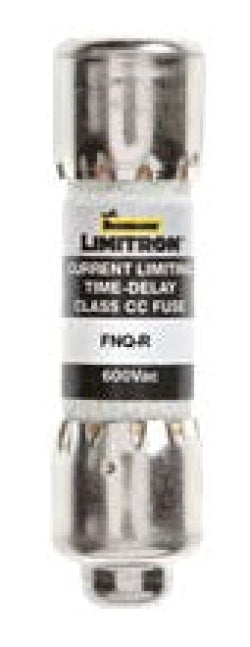

Bussmann FNQ-R-7-1/2 - Class CC Fuse 7A 600V (200kA AIC Rating)

The Bussmann FNQ-R-7-1/2 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems, providing reliable overcurrent protection for sensitive equipment. It features a 7A current rating and 600V voltage rating with an impressive 200kA interrupting capacity at rated voltage. The fuse construction includes a single-barrel design measuring 1-1/2 inches in length with a 0.41-inch diameter and weighs 1 lb. This component complies with CE/UL-248-4 Guide JDDZ and CSA Class 1422-01 standards, ensuring consistent performance across industrial applications including control circuits, motor branch circuits, and transformer protection.

Key Features & Specifications

• Type: Class CC low-voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 7A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: CE/UL-248-4 Guide JDDZ, CSA Class 1422-01
• Applications: Industrial control circuits, motor protection, transformer circuits
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Family: CC-Tron
• Certification: CE/UL-248-4 Guide JDDZ/CSA Class 1422-01

Product Identification

• UPC: 051712147118
• GTIN: 00051712147118
