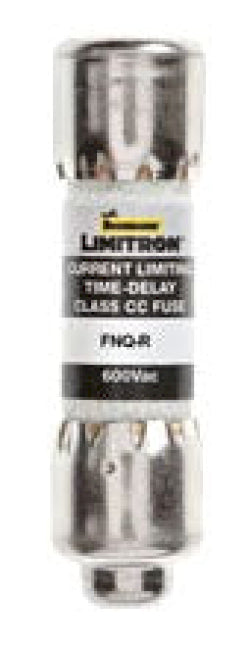

Bussmann FNQ-R-1-8/10 - Class CC Fuse 1A 600V (200kA AIC)

Bussmann FNQ-R-1-8/10 is a Class CC low-voltage fuse designed for circuit protection in industrial applications. It features a 600V AC rating with a 1A current capacity and 200kA interrupting rating at 600V for reliable overcurrent protection. The compact 1-1/2" x 0.41" diameter design with single-barrel construction meets UL 248-4 and CSA Class 1422-01 standards for safety compliance. Certified to CE/UL-248-4 Guide JDDZ requirements, this fuse is commonly used in control circuits, transformers, and motor branch circuits.

Key Features & Specifications

• Type: FNQ Class CC time-delay fuse with CC-Tron design
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: CE/UL-248-4 Guide JDDZ, CSA Class 1422-01
• Applications: Industrial control circuits, transformers, motor protection
• Class Rating: CC
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712147132
• GTIN: 00051712147132
