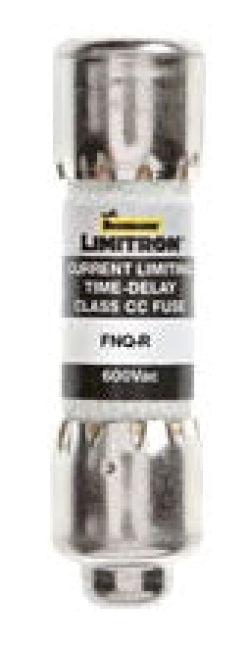

Eaton Bussmann FNQ-R-1-1/8 - Class CC Fuse 1.125A (200kA AIC, 600V)

The Bussmann FNQ-R-1-1/8 is a Class CC low-voltage fuse designed to provide reliable circuit protection in industrial applications. It features a 600V AC voltage rating and a precise 1.125A current rating for sensitive equipment protection. The fuse is constructed as a single-barrel unit with a compact 1-1/2 inch body length and a 0.41-inch diameter, weighing 1 lb for straightforward installation. It complies with CE, UL 248-4, and CSA Class 1422-01 standards, ensuring high-performance safety. This fuse is typically used in control circuits, transformer protection, and other applications requiring a 200kA interrupting rating at 600V AC.

Key Features & Specifications

• Type: Class CC, Low Voltage Fuse, Single Barrel
• Voltage Rating: 600V AC
• Current Rating: 1.125A
• Dimensions: 1-1/2 in Length, 0.41 in Diameter
• Standards: CE, UL-248-4 Guide JDDZ, CSA Class 1422-01
• Applications: Industrial Control Circuits, Transformer Protection
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Certification: CE/UL-248-4 Guide JDDZ/CSA Class 1422-01

Product Identification

• UPC: 051712497053
• GTIN: 00051712497053
