Bussmann FNQ-5 - Low Voltage Fuse 5A (10kA@500V Interrupt Rating)
Regular price
$10.95
$10.95
Regular price
$69.80
$69.80
Sale price
$10.95
$10.95
Save $58.85
/
- In stock, ready to ship
- Backordered, shipping soon

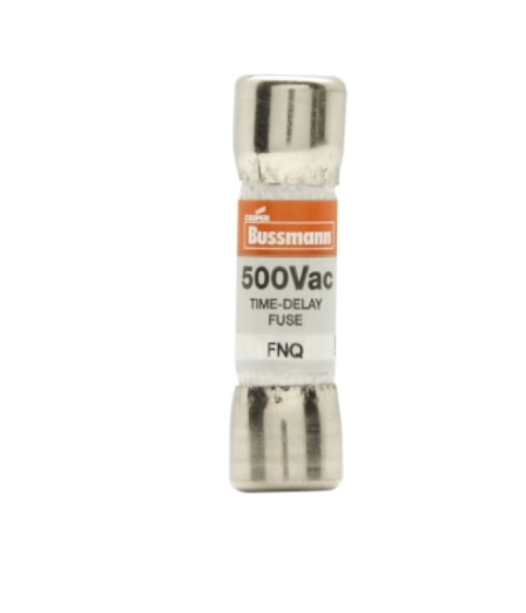

Bussmann FNQ-5 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. Rated for 500V AC/DC operation with a 5A current capacity, it features a compact 1-1/2" cylindrical design with 0.41" diameter and single-barrel construction. The fuse meets CE, CSA Class 1422-01, and UL-248-14 (Guide JDYX) standards, offering 10kA interrupting capacity at 500V for reliable overcurrent protection in motor control centers, transformers, and power distribution equipment.
Key Features & Specifications
Key Features & Specifications
- Type: FNQ series current-limiting fuse with ceramic body
- Voltage Rating: 500V AC/DC
- Current Rating: 5A
- Dimensions: 1-1/2" length x 0.41" diameter
- Weight: 1 lb
- Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
- AIC Rating: 10kA@500V
- Barrels: 1
- Family: FNQ Series
- Country of Origin: Mexico
- UPC: 051712786294
- GTIN: 00051712786294
