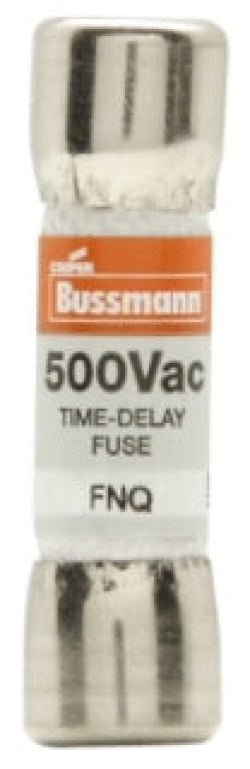

Bussmann FNQ-25 - Medium Voltage Fuse 25A (10kA AIC @500V)

Bussmann FNQ-25 is a medium-voltage fuse designed for circuit protection in industrial electrical systems, featuring a 25A current rating and 500V voltage capacity. Its compact 1-1/2-inch cylindrical design with a 0.41-inch diameter and single-barrel construction ensures reliable performance in space-constrained installations. The fuse meets CE, CSA Class 1422-01, and UL-248-14 Guide JDYX standards, with a 10kA interrupting capacity at 500V for robust short-circuit protection. Typical applications include motor control centers, transformers, and power distribution equipment requiring precise overcurrent protection.

Key Features & Specifications

• Type: FNQ series medium-voltage fuse with cylindrical design
• Voltage Rating: 500V AC/DC
• Current Rating: 25A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Weight: 1 lb
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• AIC Rating: 10kA@500V
• Barrels: 1
• Applications: Motor controls, transformers, power distribution

Product Identification

• UPC: 051712786652
• GTIN: 00051712786652
