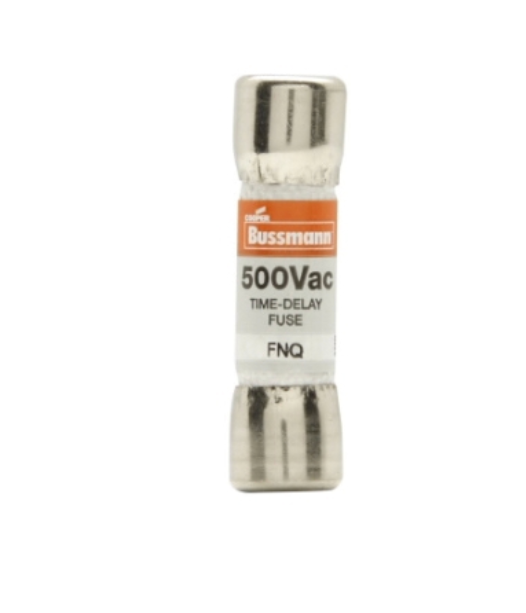

Bussmann FNQ-20 - Low Voltage Fuse 20A 500V (10kA AIC Rating)

Bussmann FNQ-20 is a low-voltage current-limiting fuse designed for branch circuit protection in industrial electrical systems. It features a 20A current rating and 500V AC voltage rating with a 10kA interrupting capacity at rated voltage. The fuse measures 1-1/2 inches in length with a 0.41-inch diameter single-barrel construction and weighs 1 lb. It complies with CE, CSA Class 1422-01, and UL-248-14 Guide JDYX standards for safety and performance. Typical applications include protection of motor circuits, transformers, and power distribution equipment in commercial and industrial facilities.

Key Features & Specifications

• Type: FNQ Series current-limiting fuse, single barrel construction
• Voltage Rating: 500V AC
• Current Rating: 20A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Applications: Motor circuit protection, transformers, power distribution
• AIC rating: 10kA@500V
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Family: FNQ Series
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 051712786355
• GTIN: 00051712786355
