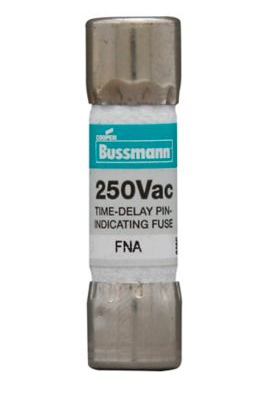

Bussmann FNA-1/2 - Midget Fuse 1A 250V (10kA AIC Rating)

Bussmann FNA-1/2 is a low voltage fuse designed for circuit protection in industrial applications. This midget fuse features a 1A current rating and 250V voltage rating with a 10kA interrupting capacity at rated voltage. The single-barrel construction measures 1-1/2 inches in length with a 0.41-inch diameter and weighs 1.1 lb. It complies with CE, CSA Class 1422-01, and UL-248-12 Guide JDYX standards for safety and performance. Typical applications include protection of control circuits, transformers, and other electrical equipment requiring reliable overcurrent protection.

Key Features & Specifications

• Type: Low Voltage Fuse, Midget Class, Single Barrel
• Voltage Rating: 250V AC
• Current Rating: 1A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: CE, CSA Class 1422-01, UL-248-12 Guide JDYX
• Applications: Control circuits, transformers, electrical equipment protection
• AIC rating: 10kA@250V
• Class Rating: Midget
• Barrels: 1
• Weight: 1.1 lb
• Family: FNA Series
• Country of Origin: Mexico

Product Identification

• UPC: 005171271340
• GTIN: 00051712713405
