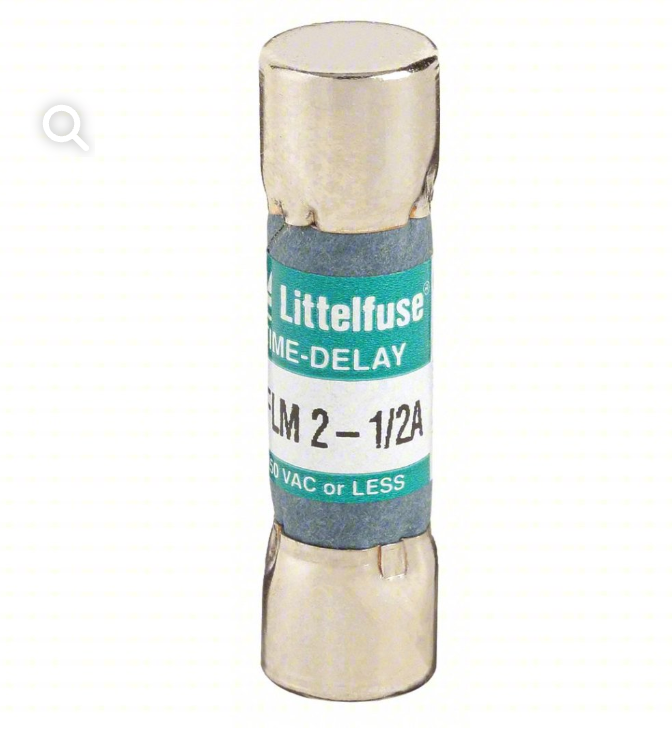

Littelfuse FLM2-1/2 - Midget Time-Delay Fuse 2.5A 250V (10kA AIC)

Littelfuse FLM2-1/2 is a midget time-delay fuse designed for overcurrent protection in low voltage circuits. It features a 250V AC voltage rating and a 2.5A current rating, providing reliable circuit interruption. The fuse is constructed with a single barrel and ferrule non-rejection end connections, housed in a compact 0.41-inch diameter body weighing 5.19 lb. It complies with industry standards for time-delay fuses and offers an interrupting rating of 10,000A at 250V AC. This component is typically applied in industrial control circuits, motor protection, and transformer applications where sustained overload conditions require delayed response.

Key Features & Specifications

• Type: Midget Time-Delay Fuse, Single Barrel, Ferrule Non-Rejection Connection
• Voltage Rating: 250V AC
• Current Rating: 2.5A
• Dimensions: 0.41" Diameter
• Standards: Class Rating Midget
• Applications: Industrial Control Circuits, Motor Protection, Transformer Circuits
• AIC Rating: 10kA @ 250V AC
• Velocity: TD - Time Delay
• Weight: 5.19 lb
• Barrels: 1
• Connection: Ferrule Non-Rejection
• Class Rating: Midget
