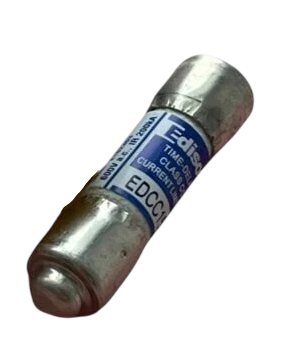

Edison Fuses EDCC4.5 - Class CC Fuse 4.5A (200kA AIC @600V)
Regular price
$27.50
$27.50
Regular price
$45.66
$45.66
Sale price
$27.50
$27.50
Save $18.16
/
- In stock, ready to ship
- Backordered, shipping soon
Edison Fuses EDCC4.5 is a Class CC low-voltage fuse designed for circuit protection in industrial and commercial applications. It features a 600V AC/DC voltage rating and a 4.5A current rating, with a compact cylindrical design measuring 1.5" in length and 0.41" in diameter. Constructed for high-performance protection, it offers a 200kA interrupting capacity at 600V and complies with industry standards for reliable operation in control circuits, transformers, and motor loads.
Key Features & Specifications
Key Features & Specifications
- Type: Class CC, one-time fuse, ceramic body
- Voltage Rating: 600V AC/DC
- Current Rating: 4.5A
- Dimensions: 1.5" L x 0.41" W x 0.41" H
- Weight: 1.19 lb
- Standards: UL/CSA recognized
- Applications: Control circuits, transformers, motor protection
- AIC Rating: 200kA @ 600V
- Class Rating: CC
- Barrels: 1
- Diameter: 0.41"
- UPC: 782634808169
