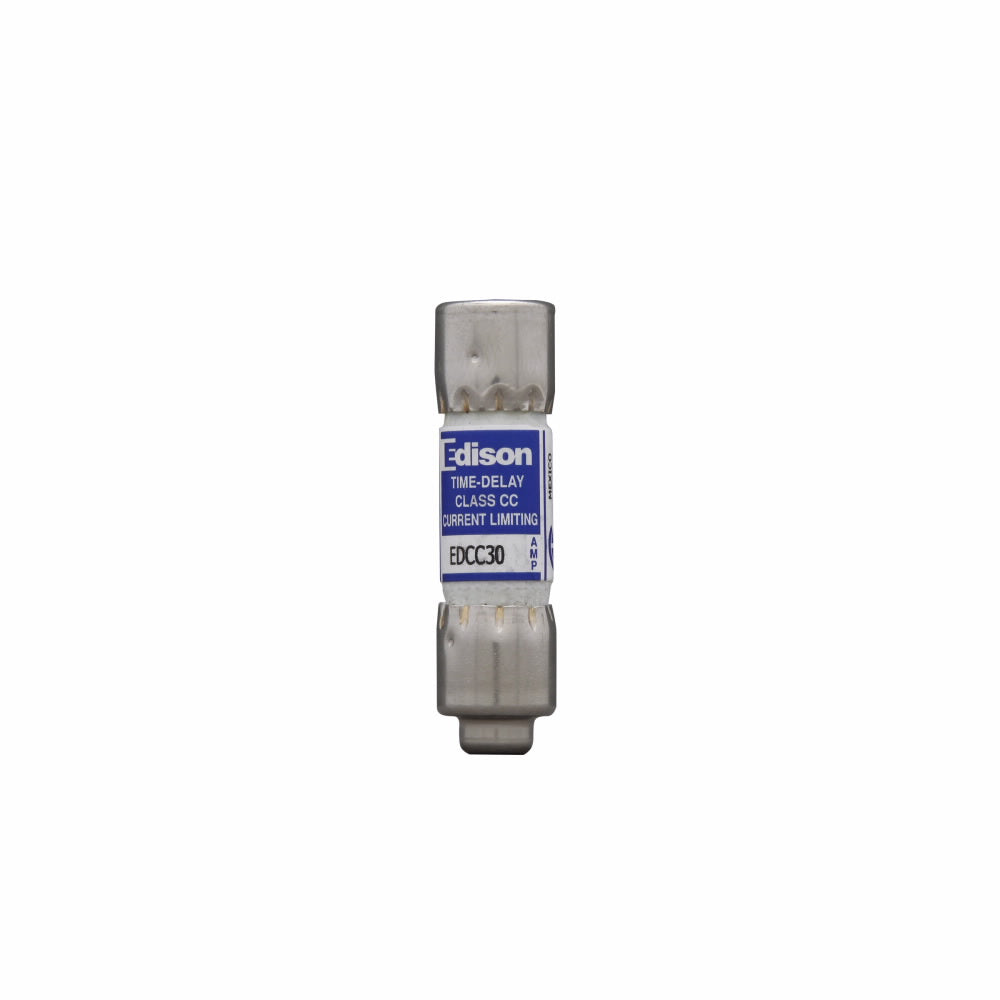

Edison Fuses EDCC30 - Class CC Fuse 30A 600V (200kA AIC)

Edison Fuses EDCC30 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 30A current rating with a compact cylindrical design measuring 1.5" in length and 0.41" in diameter. The single-barrel construction provides 200kA interrupting capacity at 600V, meeting industry standards for reliable overcurrent protection in demanding environments. Typical applications include motor control centers, panelboards, and industrial control equipment requiring Class CC fuse protection.

Key Features & Specifications

• Type: Class CC cylindrical fuse, single barrel design
• Voltage Rating: 600V AC/DC
• Current Rating: 30A
• Dimensions: 1.5"L × 0.41"W × 0.41"H
• Weight: 1.19 lb
• Diameter: 0.41"
• AIC Rating: 200kA@600V
• Class Rating: CC
• Standards: UL/CSA recognized
• Applications: Industrial control circuits, motor protection, panelboards

Product Identification

• UPC: 782634808305
• GTIN: 00782634808305
