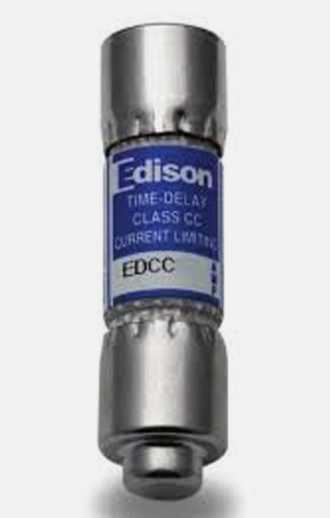

Bussmann EDCC3.5 - RK5 Class Fuse 3.5A 600V (200kA AIC)

Bussmann EDCC3.5 is a low-voltage current-limiting fuse designed to provide reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 3.5A current rating and a 600V AC voltage rating, housed in a compact 1.5-inch long by 0.41-inch square body with a 0.81-inch diameter. Constructed as a single-barrel RK5 class fuse, it offers a high 200kA interrupting rating at 600V AC and complies with industry standards for motor branch circuit and feeder protection. This fuse is typically applied in motor control centers, industrial control panels, and power distribution equipment where space-constrained installations require high-performance protection.

Key Features & Specifications

• Type: Low Voltage Fuse, Current-Limiting, RK5 Class, Single Barrel
• Voltage Rating: 600V AC
• Current Rating: 3.5A
• Dimensions: 1.5" L x 0.41" W x 0.41" H (38.1mm x 10.4mm x 10.4mm)
• Diameter: 0.81" (20.6mm)
• Weight: 1.19 lb
• Standards: UL/CSA Listed
• AIC Rating: 200kA @ 600V AC
• Class Rating: RK5
• Barrels: 1
• Applications: Motor Branch Circuit Protection, Feeder Circuit Protection, Industrial Control Panels

Product Identification

• UPC: 782634808145
