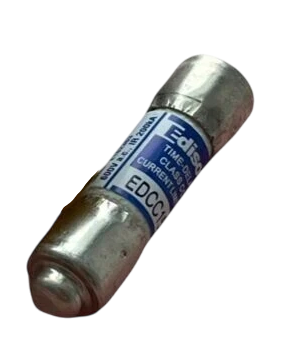

Edison Fuses EDCC1.6 - Class CC Fuse 1.6A (200kA AIC @600V)

Edison Fuses EDCC1.6 is a Class CC low-voltage fuse designed for circuit protection in industrial applications. It features a 600V AC/DC voltage rating and a 1.6A current rating with a 200kA interrupting capacity at 600V for reliable overcurrent protection. The compact cylindrical design measures 1.5" in length and 0.41" in diameter, constructed with a single barrel configuration for easy installation. Compliant with industry standards for Class CC fuses, it is suitable for protecting control circuits, transformers, and sensitive electronic equipment in commercial and industrial power distribution systems.

Key Features & Specifications

• Type: Class CC low-voltage fuse, single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 1.6A
• Dimensions: 1.5" L × 0.41" W × 0.41" H (38.1mm × 10.4mm × 10.4mm)
• Standards: Class CC fuse compliance
• Applications: Control circuits, transformers, electronics protection
• AIC Rating: 200kA @ 600V
• Diameter: 0.41" (10.4mm)
• Weight: 1.19 lb

Product Identification

• UPC: 782634808060
