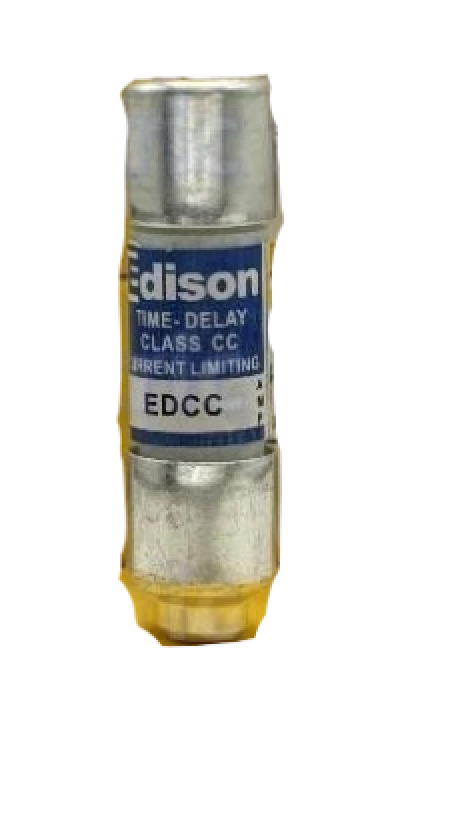

Edison EDCC0.5 - Class CC Fuse 0.5A 600V (200kA AIC)

Edison EDCC0.5 is a Class CC fuse designed for protecting control circuits, transformers, and small motors. It features a 0.5A current rating and a 600V AC voltage rating, providing reliable overcurrent protection. The fuse is constructed as a single-barrel device with a 0.41-inch diameter, ensuring compatibility with standard Class CC fuse holders. It meets industry standards for low-voltage applications and offers a high interrupting rating of 200kA at 600V AC. This fuse is typically used in industrial control panels, motor starter circuits, and transformer protection applications where precise current limitation is required.

Key Features & Specifications

• Type: Class CC, single-barrel, current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 0.5A
• Dimensions: 0.41" diameter
• Standards: Class CC compliance
• Applications: Control circuits, transformers, small motor protection
• AIC rating: 200kA@600V AC
• Class Rating: CC
• Barrels: 1
• Family: EDCC Series
• Item Subcategory: Low Voltage
