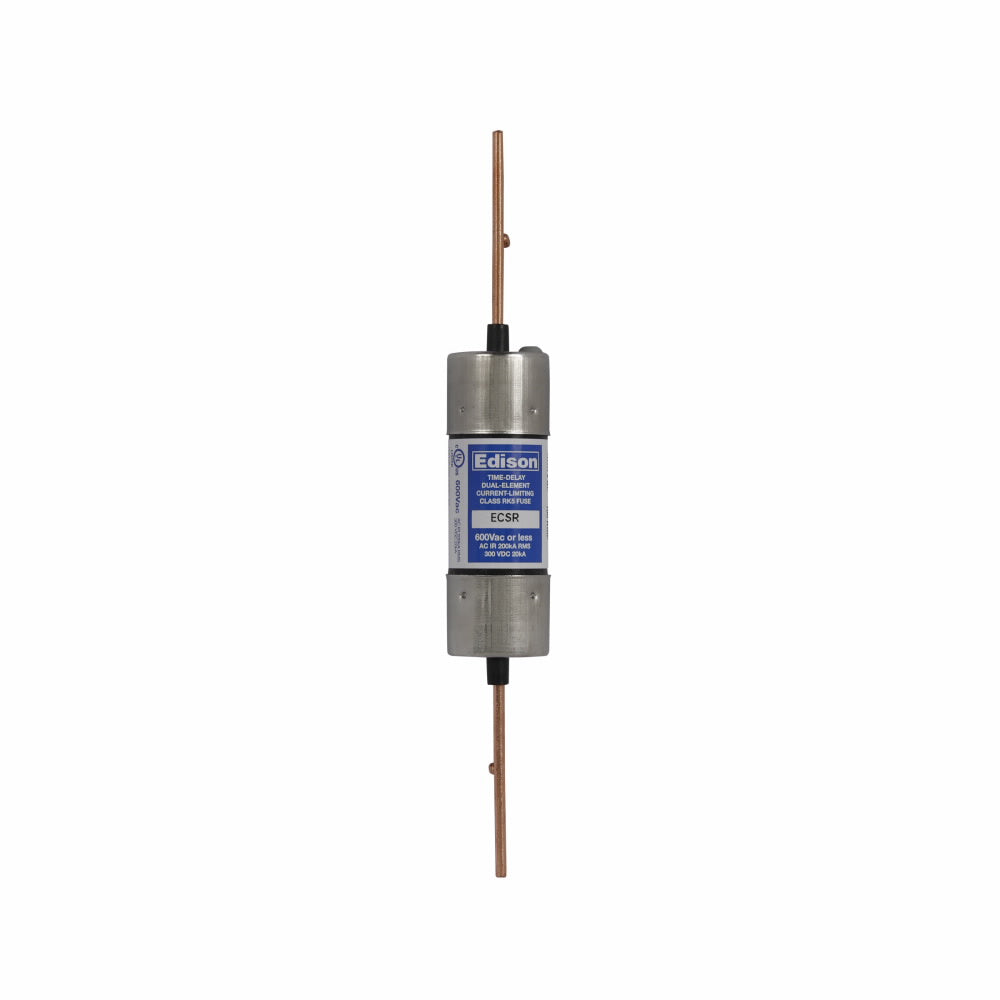

Edison Fuses ECSR80 - RK5 Fuse 80A (200kA@600V Interrupting Capacity)

Edison Fuses ECSR80 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with an 80A current capacity and 200kA interrupting rating at 600V for reliable overcurrent protection. The fuse measures 5" in length with a 0.56" diameter rejection blade connection in a compact 0.81" × 0.81" profile, constructed for durable performance in demanding environments. Compliant with industry standards for RK5 fuses, it's engineered for panelboards, switchgear, and motor control applications requiring high interrupting capacity.

Key Features & Specifications

• Type: RK5 current-limiting fuse with rejection blade connection
• Voltage Rating: 600V AC
• Current Rating: 80A
• Dimensions: 5"L × 0.81"W × 0.81"H (127mm × 20.6mm × 20.6mm)
• Standards: UL/CSA Listed RK5 class
• Applications: Industrial panelboards, motor controls, switchgear
• AIC rating: 200kA@600V
• Connection: Rejection blade
• Barrels: 1
• Diameter: 0.56" (14.2mm)
• Weight: 1.4 lb (0.64kg)

Product Identification

• UPC: 78263450841
• GTIN: 00782634508410
