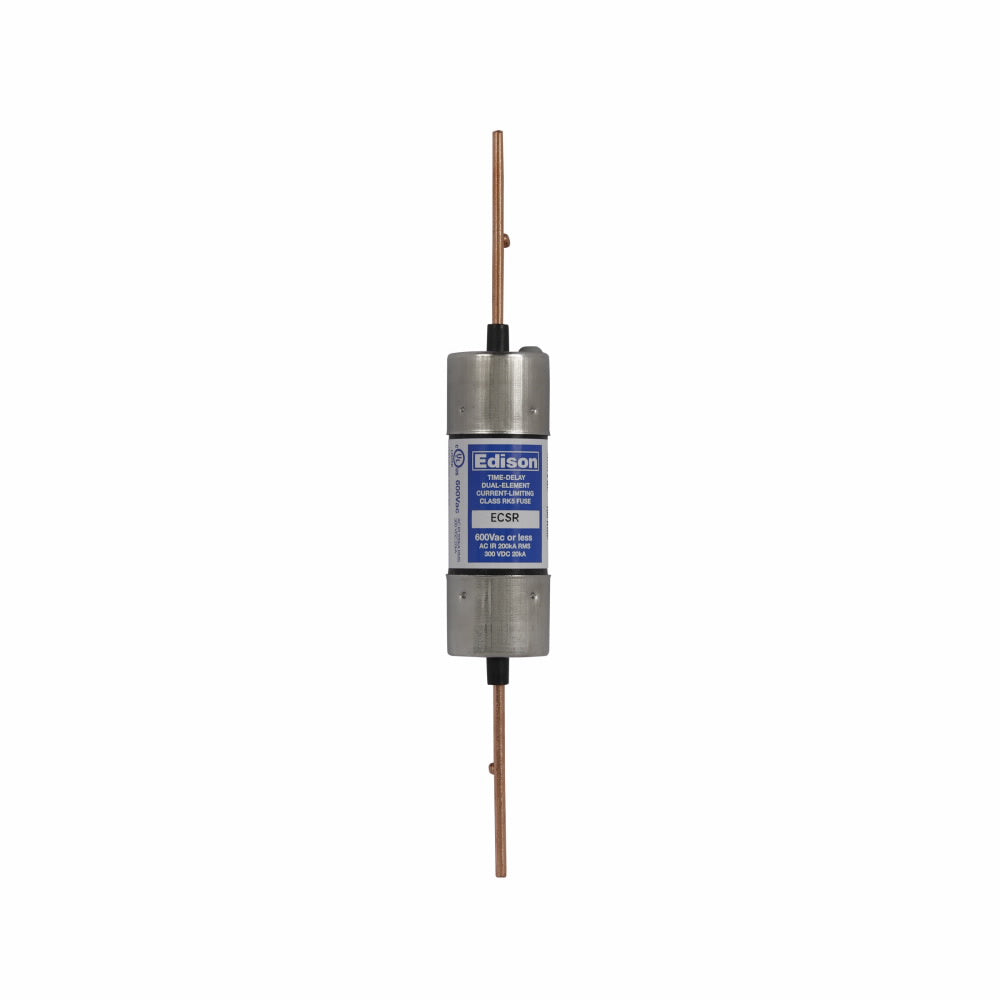

Edison Fuses ECSR70 - RK5 Fuse 70A (200kA@600V Interrupt Rating)

Edison Fuses ECSR70 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 70A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The fuse has a compact cylindrical design with rejection blade terminals, measuring 7.88in in length and 1.11in in diameter, constructed for durability in demanding environments. Compliant with industry standards for RK5 fuses, it provides time-delay characteristics for motor circuit protection. Typical applications include panelboards, switchgear, and industrial control equipment requiring high interrupting capacity.

Key Features & Specifications

• Type: RK5 time-delay fuse with rejection blade connection
• Voltage Rating: 600V AC
• Current Rating: 70A
• Dimensions: 7.88in (L) x 1.11in (D)
• Weight: 1.38 lb
• Standards: RK5 class compliant
• Applications: Industrial panelboards, motor circuits, switchgear
• Connection: Rejection blade
• Barrels: 1
• AIC rating: 200kA@600V
• Class Rating: RK5

Product Identification

• UPC: 782634508403
• GTIN: 00782634508403
