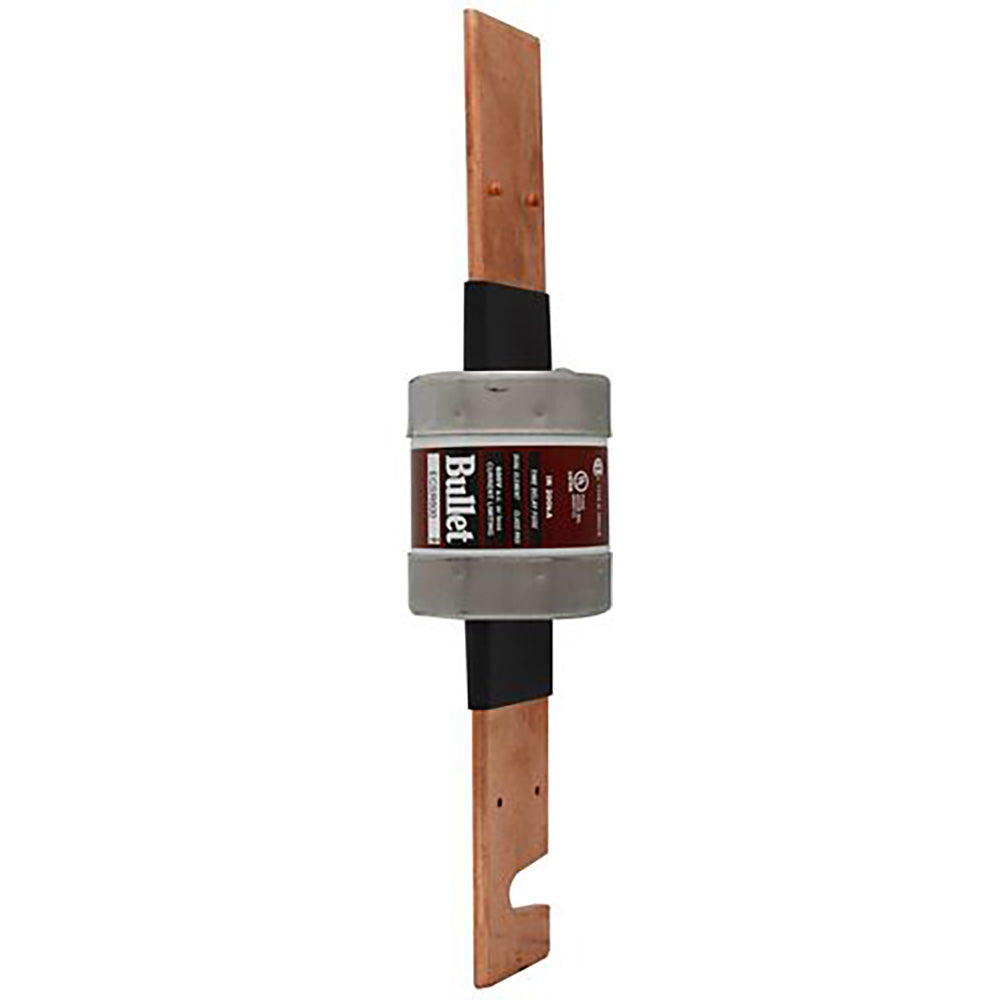

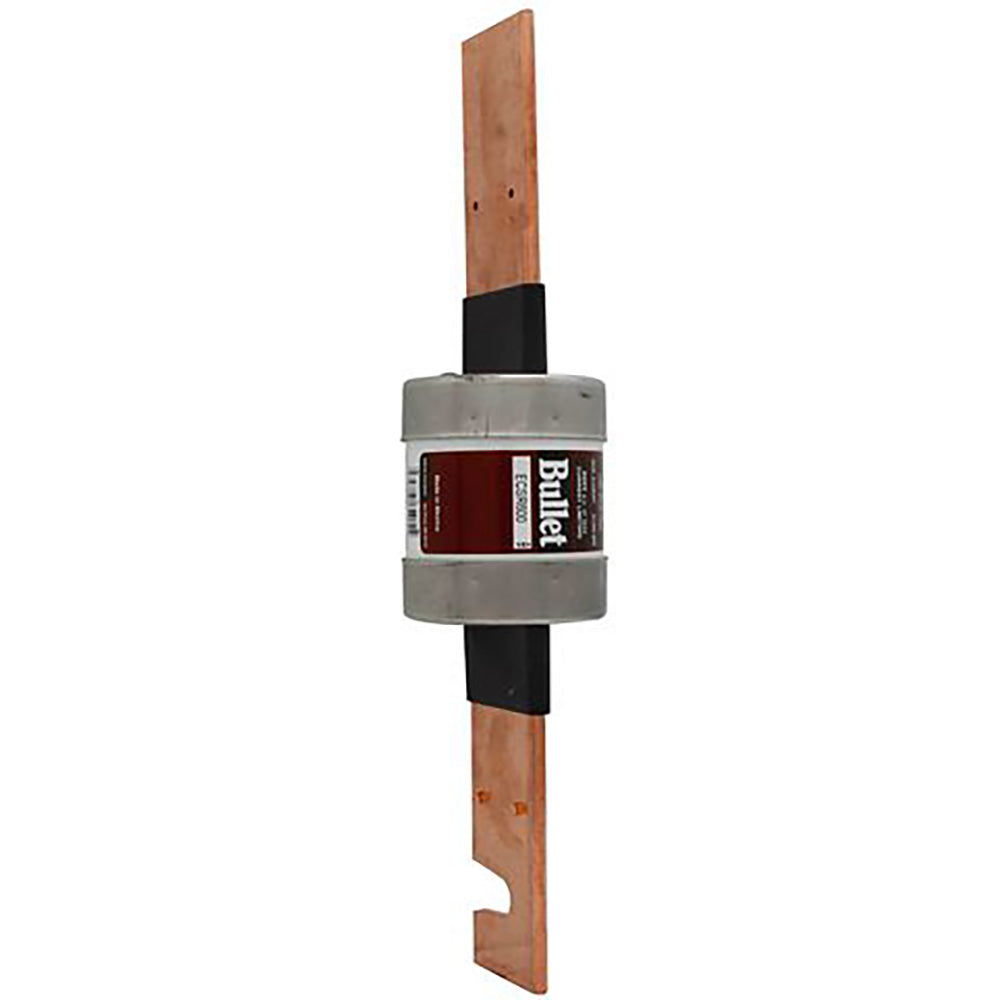

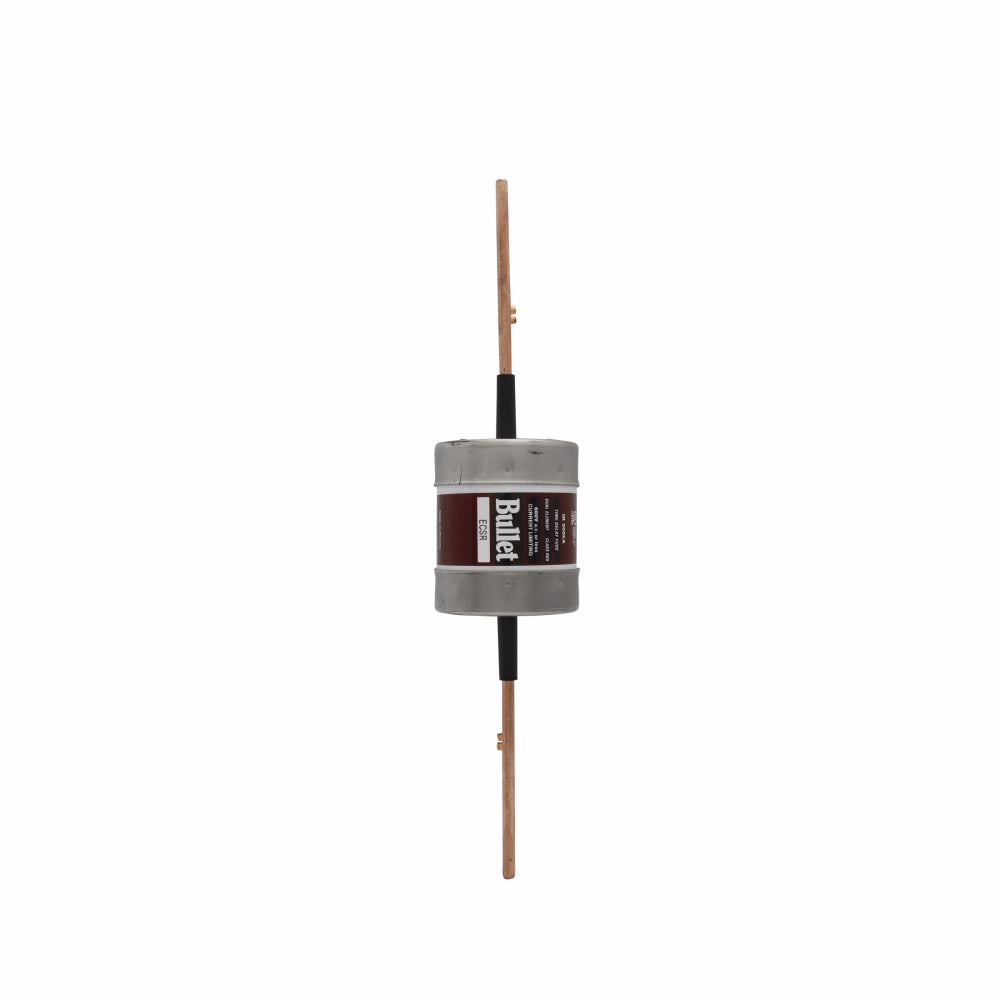

Edison Fuses ECSR600 - Current-Limiting Fuse 600A 600V (200kA AIC RK5 Class)

Edison Fuses ECSR600 is a low-voltage current-limiting fuse designed for industrial circuit protection with a 600A current rating and 600V voltage capacity. Its RK5 class construction features a single-barrel design with 200kA interrupting capacity at 600V, housed in a compact 5" x 0.81" x 0.81" (127mm x 20.6mm x 20.6mm) ceramic body weighing 5 lb. The fuse meets industry standards for high-performance protection in demanding electrical environments, typically deployed in motor control centers, switchgear, and industrial power distribution systems.

Key Features & Specifications

• Type: ECSR Series current-limiting fuse (RK5 class)
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 5"L x 0.81"W x 0.81"H (127mm x 20.6mm x 20.6mm)
• Standards: UL/CSA listed
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@600V
• Barrels: 1
• Diameter: 2.88" (73.1mm)
• Weight: 5 lb (2.27kg)
• Class Rating: RK5

Product Identification

• UPC: 78263450856
• GTIN: 00782634508564
