Edison Fuses ECSR6.25 - RK5 Current-Limiting Fuse 6.25A 600V (200kA AIC)
Regular price
$38.33
$38.33
Regular price
$789.10
$789.10
Sale price
$38.33
$38.33
Save $750.77
/
- In stock, ready to ship
- Backordered, shipping soon

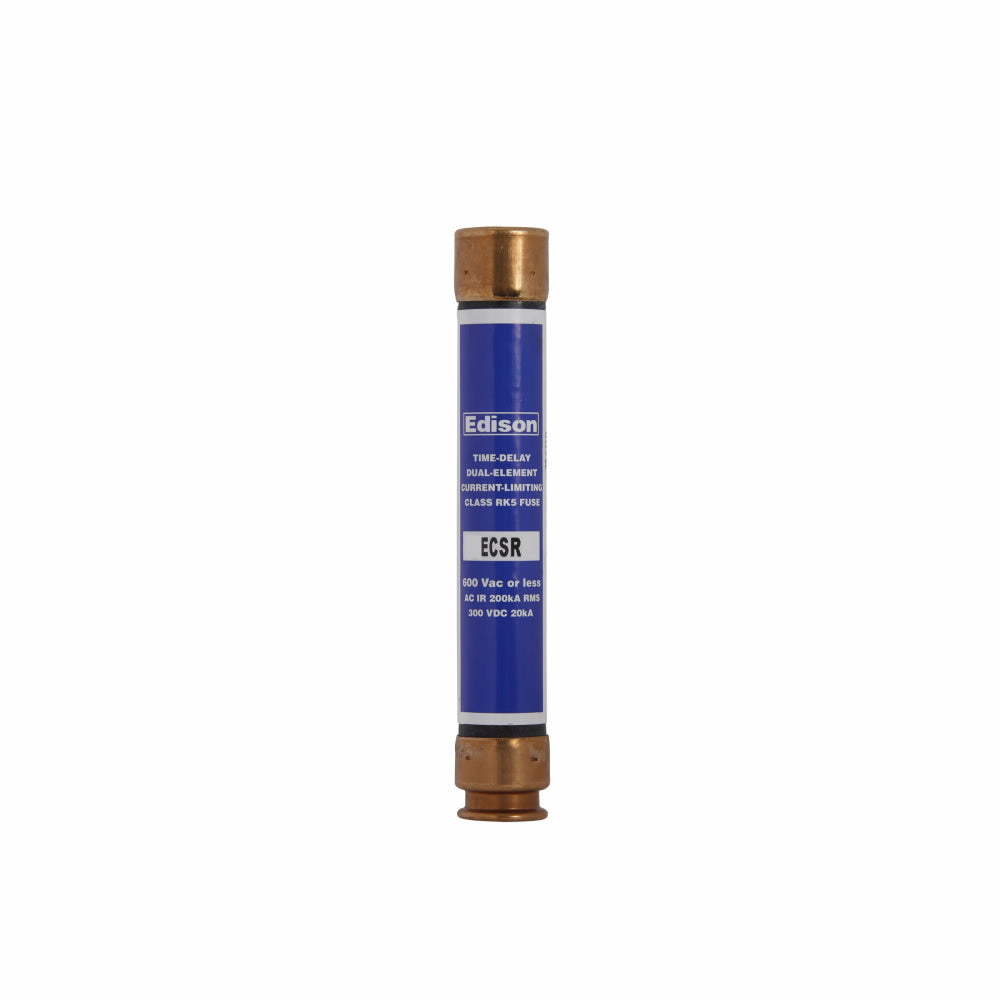

Edison Fuses ECSR6.25 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. Rated for 600V AC with a 6.25A current capacity, this RK5-class fuse features a ferrule connection and single-barrel construction with a 200kA interrupting rating at 600V. The cylindrical fuse measures 5.5in in length with a 0.81in diameter, constructed to UL/CSA standards for reliable overcurrent protection. Its current-limiting design makes it suitable for motor control centers, panelboards, and other applications requiring high fault current interruption.
Key Features & Specifications
Key Features & Specifications
- Type: ECSR Series current-limiting fuse with ferrule termination
- Voltage Rating: 600V AC
- Current Rating: 6.25A
- Dimensions: 5.5" L × 1.06" W × 1.06" H (139.7 × 26.9 × 26.9mm)
- Standards: UL/CSA listed, RK5 class
- Applications: Motor protection, panelboards, industrial controls
- AIC rating: 200kA@600V AC
- Connection: Ferrule
- Barrels: 1
- Diameter: 0.81in (20.6mm)
- Weight: 1.5 lb (0.68kg)
- UPC: 782634508243
- GTIN: 00782634508243
