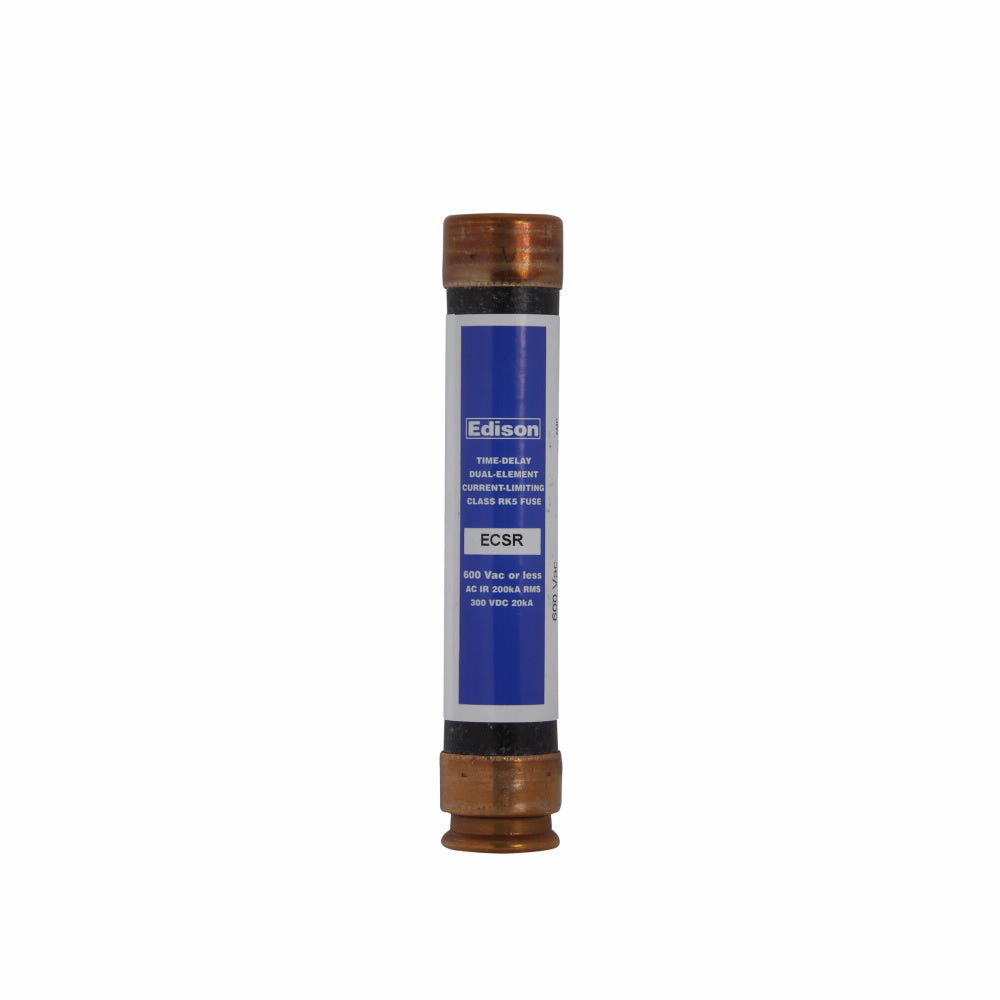

Edison Fuses ECSR50 - RK5 Current-Limiting Fuse 50A@600V (200kA AIC)

Edison Fuses ECSR50 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class fuse features a 600V AC rating with a 50A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The cylindrical design measures 13.38" in length with a 1.06" diameter, constructed with durable materials for harsh environments. Compliant with industry standards for low-voltage fuses, it's commonly used in motor control centers, panelboards, and industrial power distribution systems where high fault current interruption is critical.

Key Features & Specifications

• Type: ECSR Series current-limiting fuse (RK5 class)
• Voltage Rating: 600V AC
• Current Rating: 50A
• Dimensions: 13.38"L x 2.88"W x 2.88"H
• Weight: 4.6 lb
• Diameter: 1.06"
• Barrels: 1
• AIC Rating: 200kA@600V
• Standards: Industry-compliant low-voltage protection
• Applications: Industrial power distribution, motor control centers, panelboards

Product Identification

• UPC: 782634508380
• GTIN: 00782634508380
