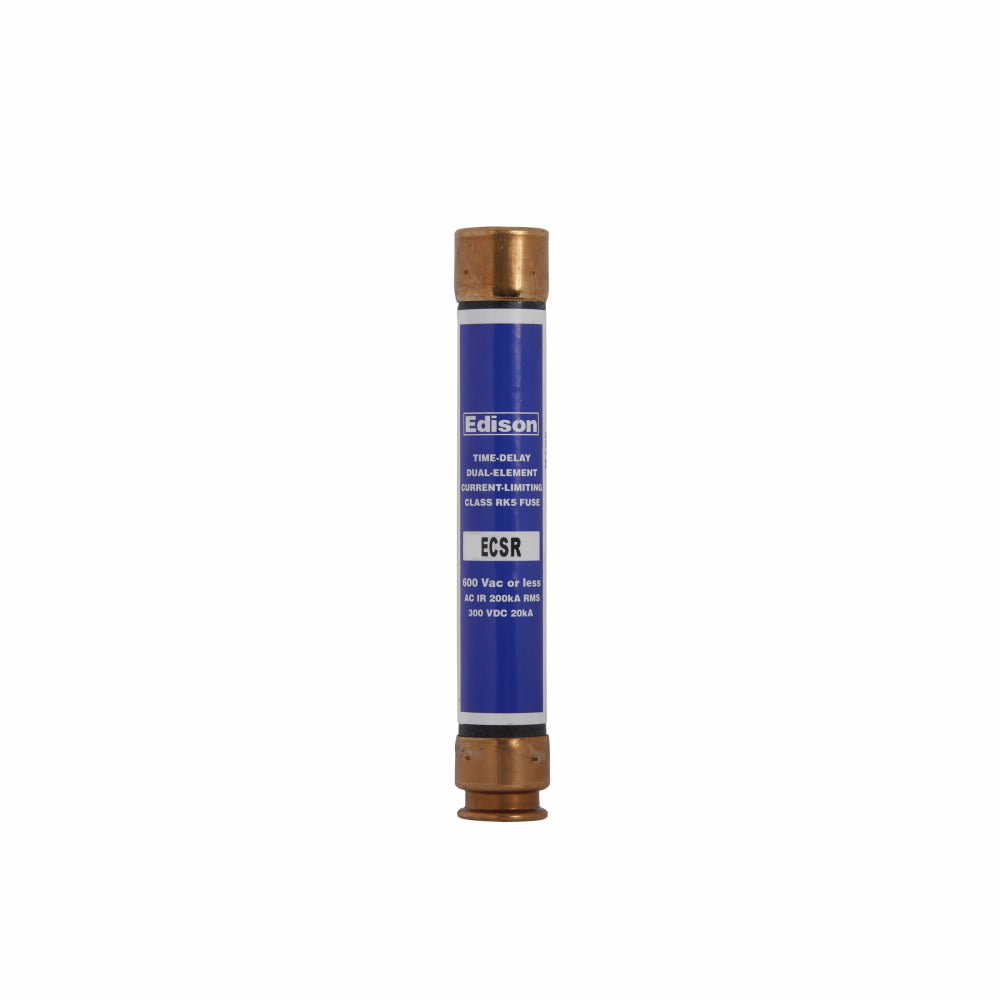

Edison Fuses ECSR5 - RK5 Current-Limiting Fuse 5A 600V (200kA AIC)

Edison Fuses ECSR5 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC voltage rating and 5A current rating with a 200kA interrupting capacity at 600V AC, housed in a compact ferrule-connected RK5-class cylindrical body measuring 5" in length and 0.81" in diameter. Constructed with durable materials, this Mexico-manufactured fuse meets industry standards for reliable overcurrent protection in motor control centers, transformers, and power distribution equipment.

Key Features & Specifications

• Type: ECSR Series RK5 current-limiting fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 5A
• Dimensions: 5" L × 0.81" W × 0.81" H (127mm × 20.6mm × 20.6mm)
• Standards: Class RK5 compliant
• Applications: Motor controls, transformers, industrial power distribution
• AIC rating: 200kA@600V AC
• Connection: Ferrule
• Barrels: 1
• Diameter: 0.81" (20.6mm)
• Weight: 1 lb (0.45kg)

Product Identification

• UPC: 782634508229
• GTIN: 00782634508229
