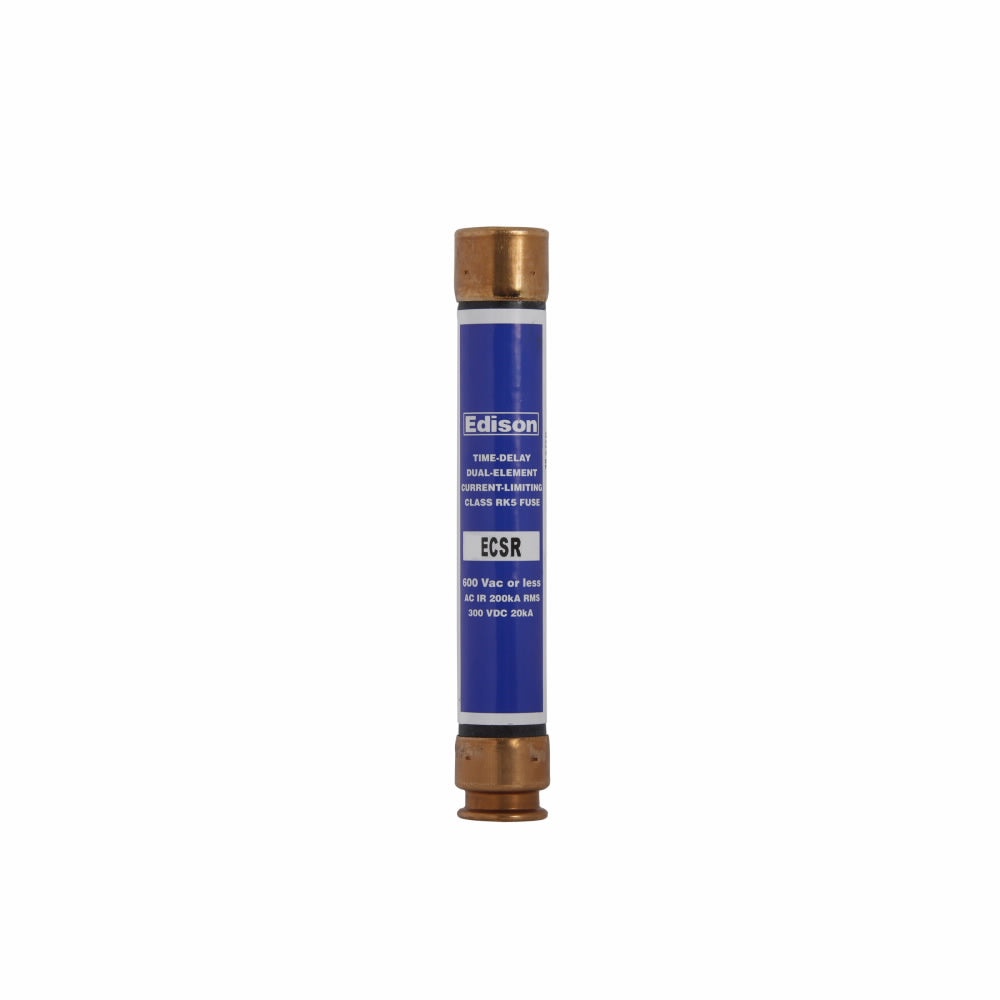

Edison Fuses ECSR30 - RK5 Class Fuse 30A 600V (200kA AIC)

Edison Fuses ECSR30 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class fuse features a 600V AC rating with a 30A current capacity and a high interrupting rating of 200kA at 600V for reliable short-circuit protection. The compact 5-inch ferrule-style fuse has a 0.81-inch diameter and weighs 3.35 lb, constructed with durable materials meeting industry standards. Compliant with UL/CSA requirements, this ECSR series fuse is engineered for motor branch circuits, transformers, and power distribution panels requiring robust overcurrent protection.

Key Features & Specifications

• Type: Current-limiting RK5 class fuse with ferrule connection
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 5 in length x 0.81 in diameter
• Standards: UL/CSA compliant
• Applications: Motor circuits, transformers, panel protection
• Class Rating: RK5
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 3.35 lb

Product Identification

• UPC: 782634508342
• GTIN: 00782634508342
