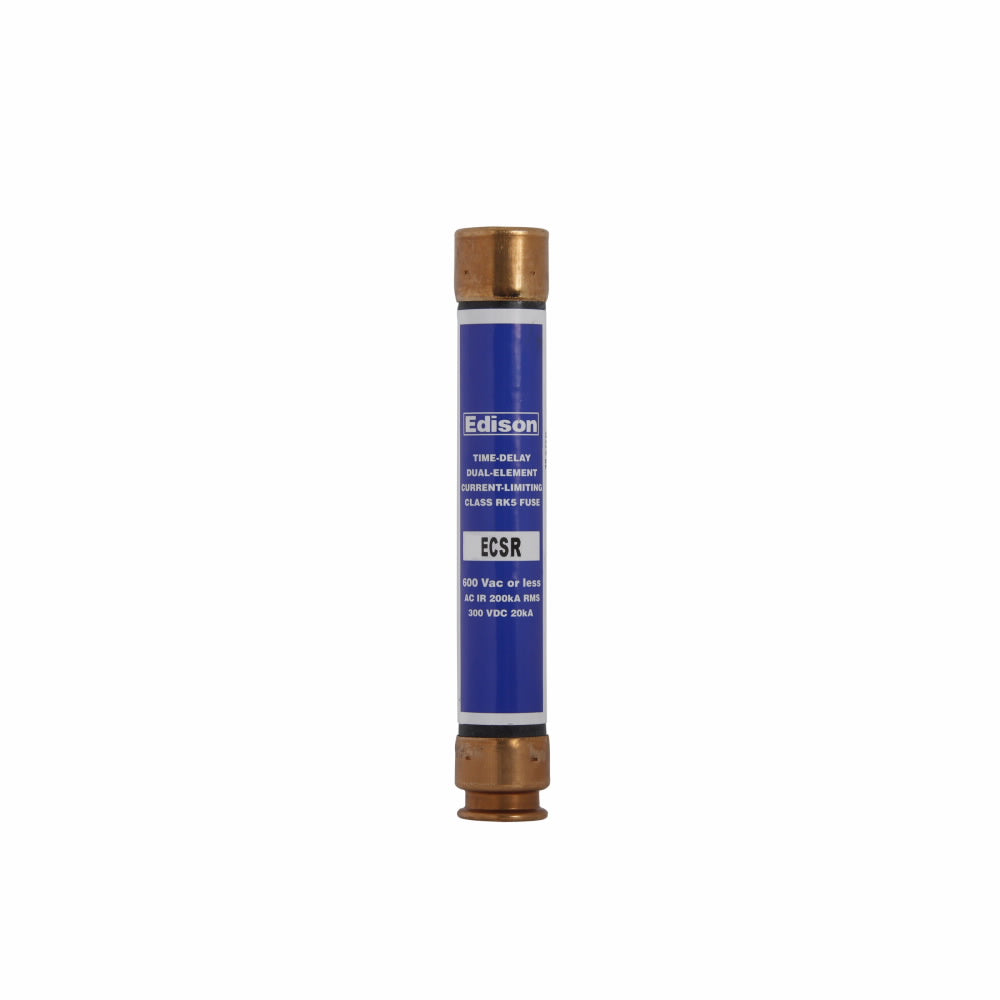

Edison Fuses ECSR25 - Class E Fuse 25A@600V (200kA AIC Rating)

Edison Fuses ECSR25 is a Class E low-voltage fuse designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC operation with a 25A current capacity, it features a ferrule connection type and dual-barrel construction with a 3-inch diameter for secure mounting. The fuse meets industry standards with a 200kA interrupting rating at 600V, housed in a compact 11.63" x 2.34" x 2.34" enclosure weighing 0.19 lb. Its robust design makes it suitable for motor protection, transformer circuits, and heavy-duty power distribution applications requiring high fault current interruption.

Key Features & Specifications

• Type: Class E dual-barrel ferrule fuse
• Voltage Rating: 600V AC/DC
• Current Rating: 25A
• Dimensions: 11.63" L x 2.34" W x 2.34" H
• Weight: 0.19 lb
• Diameter: 3 inches
• Connection: Ferrule
• Barrels: 2
• AIC Rating: 200kA@600V
• Standards: UL/CSA compliant
• Applications: Motor circuits, transformers, industrial power distribution

Product Identification

• UPC: 78263450833
• GTIN: 00782634508335
