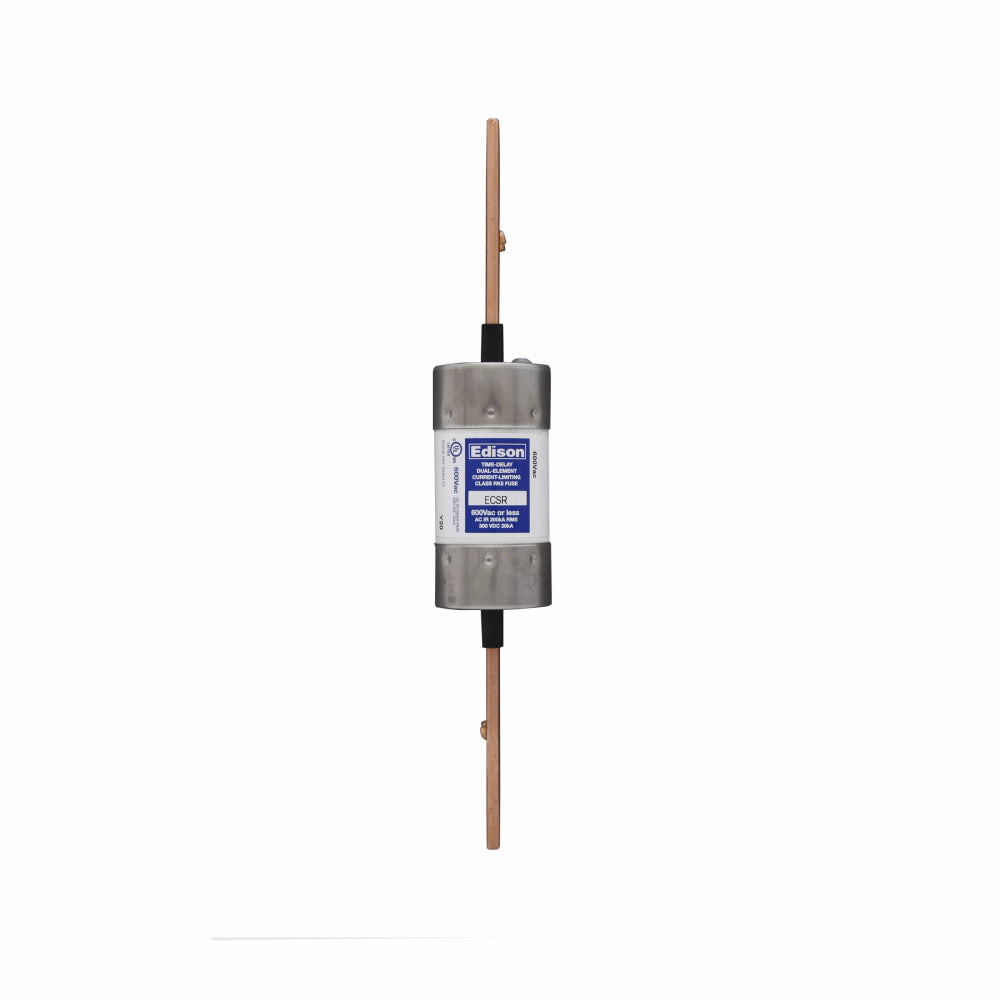

Edison Fuses ECSR200 - RK5 Class Fuse 600V/200A (200kA AIC Rating)

Edison Fuses ECSR200 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 200A current capacity and 200kA interrupting rating, housed in a compact 9.63" x 2.34" x 2.34" RK5-class cylindrical body with 1.61" diameter. The unit meets CE, CSA, and UL safety standards for reliable overcurrent protection in motor control centers, switchgear, and power distribution equipment.

Key Features & Specifications

• Type: ECSR Series current-limiting fuse with single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 9.63" L x 2.34" W x 2.34" H (244.5mm x 59.4mm x 59.4mm)
• Standards: CE, CSA, UL Listed
• Applications: Motor protection, switchgear, industrial power distribution
• Class Rating: RK5
• AIC rating: 200kA@600V
• Diameter: 1.61" (40.9mm)
• Weight: 1 lb (0.45kg)
• Barrels: 1

Product Identification

• UPC: 782634508489
• GTIN: 00782634508489
