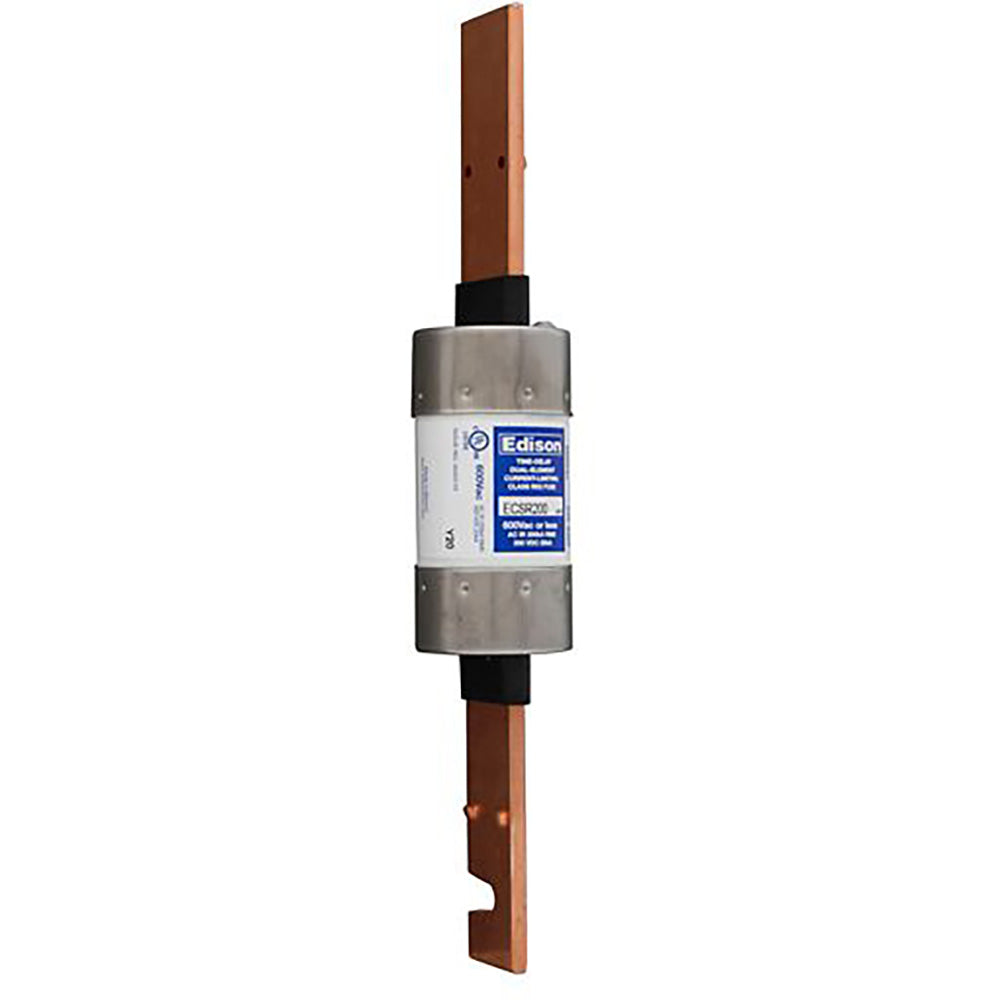

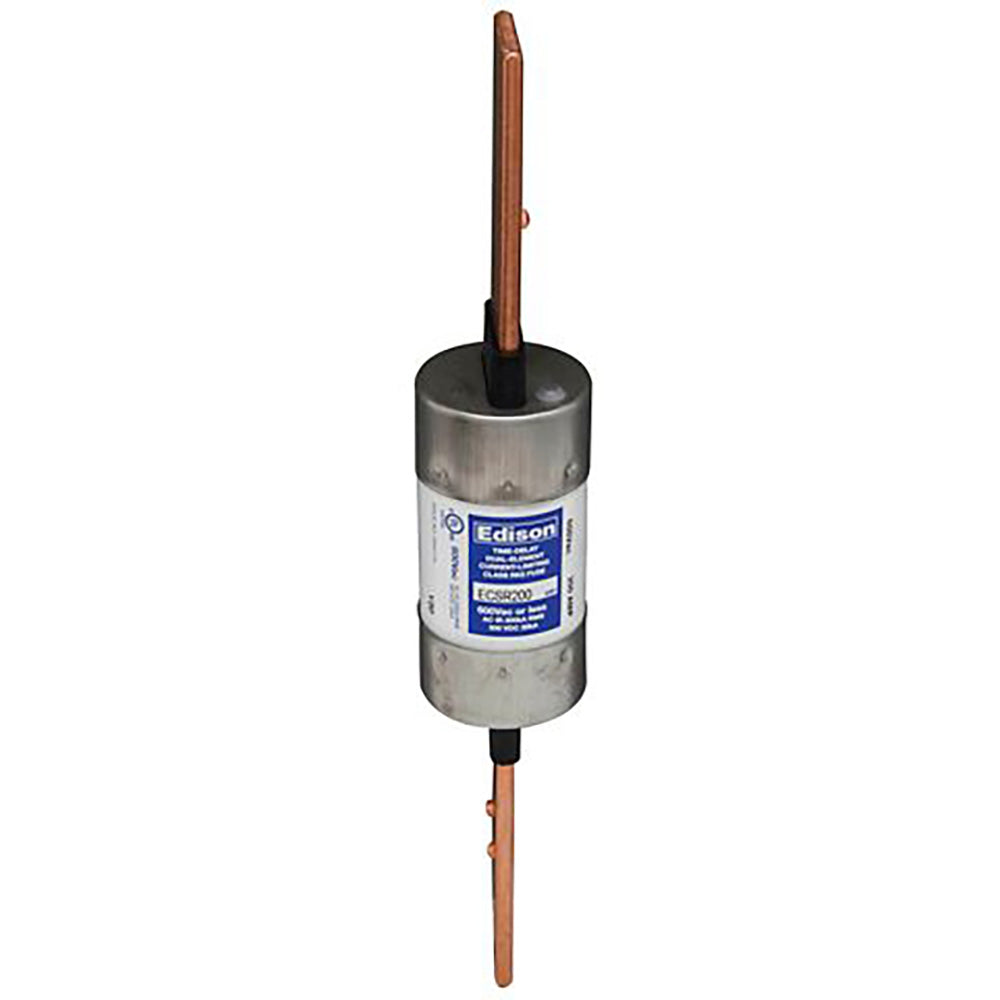

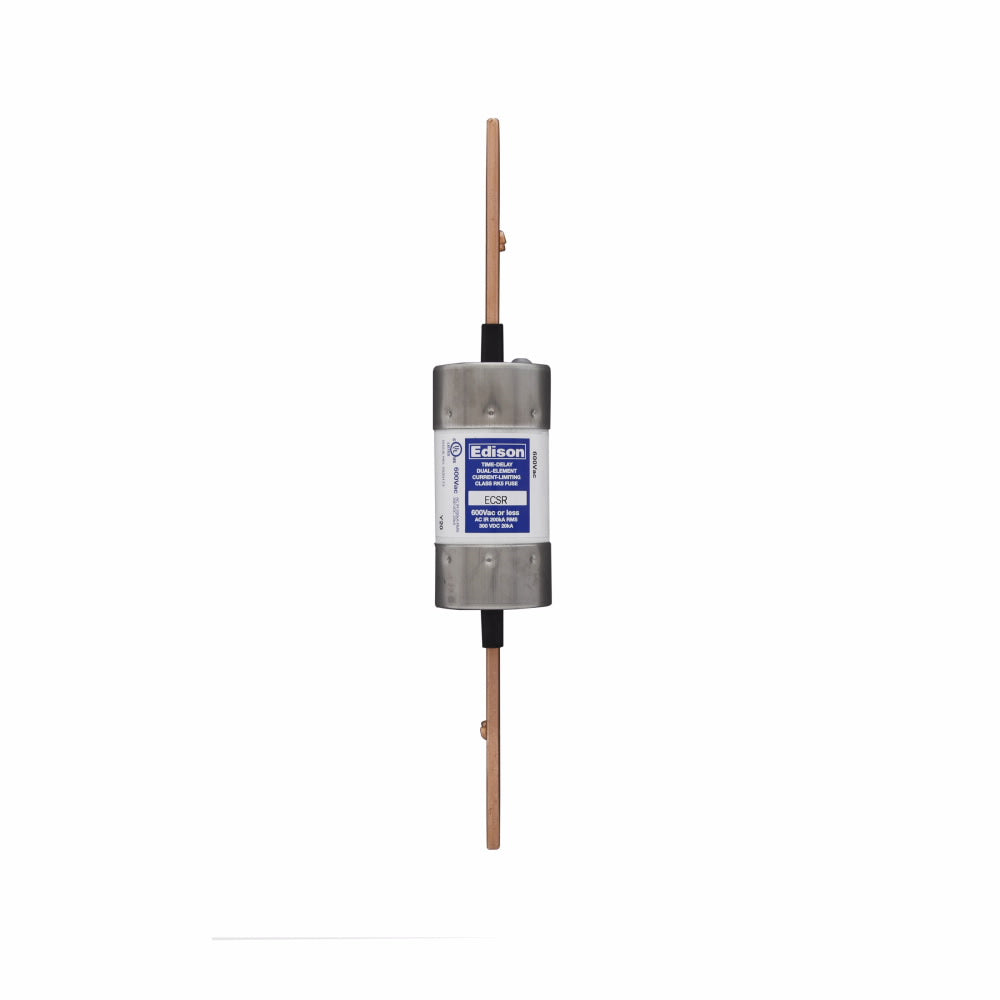

Edison Fuses ECSR150 - Class CC Fuse 150A@600V (200kA AIC Rating)

Edison Fuses ECSR150 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 150A current capacity and a high interrupting rating of 200kA@600V for reliable fault protection. The compact cylindrical design measures 5" in length with a 0.41" diameter, constructed with a single-barrel configuration and weighing 1 lb. Compliant with industry standards for Class CC fuses, it provides precise overcurrent protection for control circuits, transformers, and motor branch circuits in commercial and industrial applications.

Key Features & Specifications

• Type: Class CC low-voltage current-limiting fuse
• Voltage Rating: 600V AC
• Current Rating: 150A
• Dimensions: 5"L x 0.81"W x 0.81"H
• Diameter: 0.41"
• Weight: 1 lb
• Barrels: 1
• AIC Rating: 200kA@600V
• Standards: Class CC fuse specifications
• Applications: Industrial control circuits, transformers, motor protection

Product Identification

• UPC: 078263450846
• GTIN: 00782634508465
