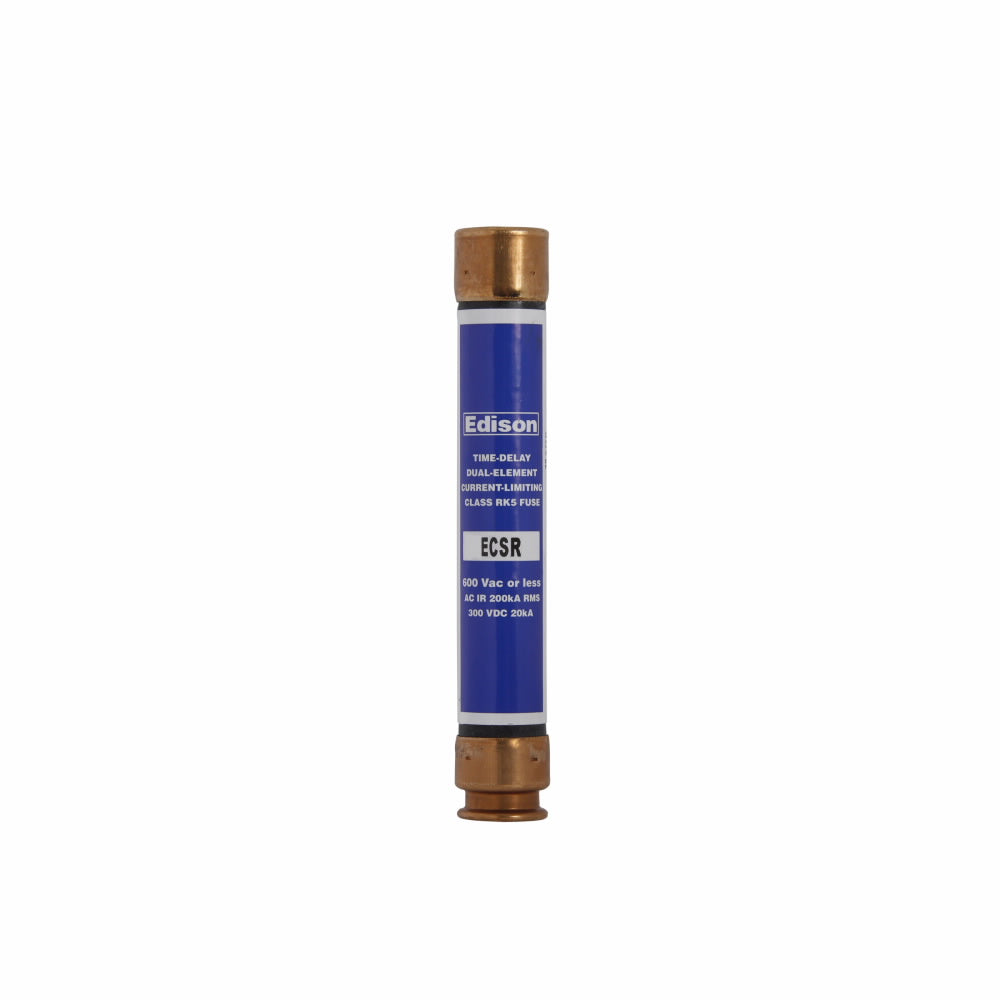

Edison Fuses ECSR15 - RK5 Class Fuse 600V/15A (200kA AIC)

Edison Fuses ECSR15 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. This RK5-class fuse features a 600V AC rating with a 15A current capacity and 200kA interrupting rating at 600V for robust short-circuit protection. The ferrule-connected fuse measures 9.63 inches in length with a 0.81-inch diameter, constructed with a single-barrel design for reliable operation. Compliant with UL/CSA standards, this US-made fuse is engineered for motor branch circuits, transformers, and power distribution panels requiring high interrupting capacity.

Key Features & Specifications

• Type: ECSR series current-limiting fuse (RK5 class)
• Voltage: 600V AC
• Current: 15A
• Dimensions: 9.63" length x 0.81" diameter
• Weight: 2.5 lb
• Standards: UL/CSA compliant
• Applications: Motor circuits, transformers, panel protection
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@600V
• Class Rating: RK5
• Country of Origin: United States

Product Identification

• UPC: 782634508304
• GTIN: 00782635000000
