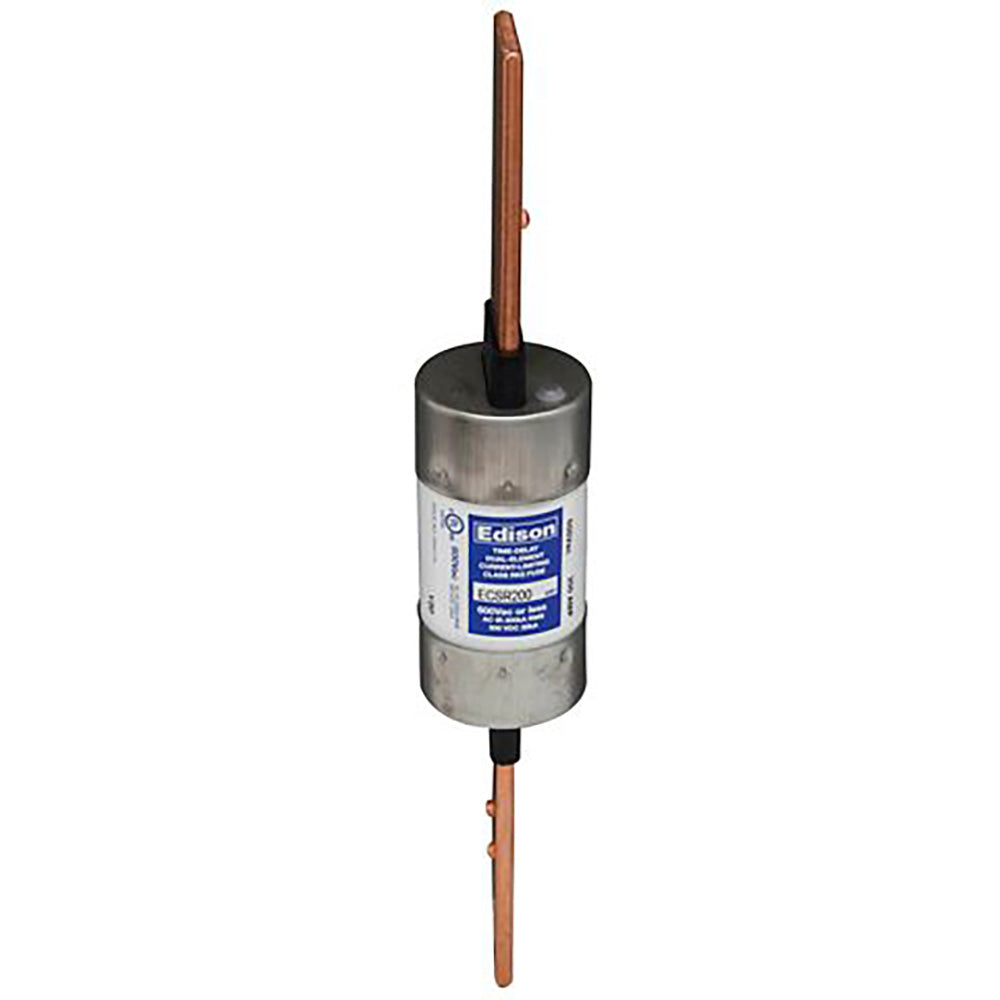

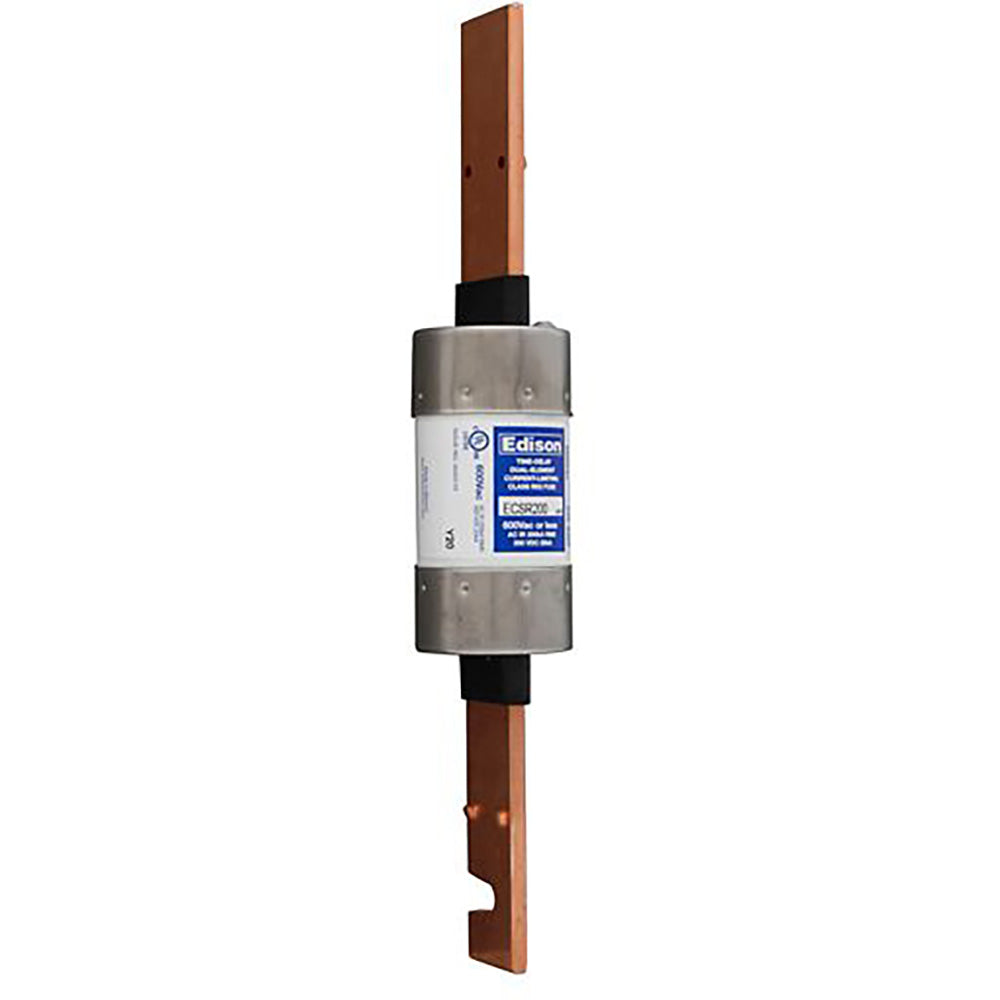

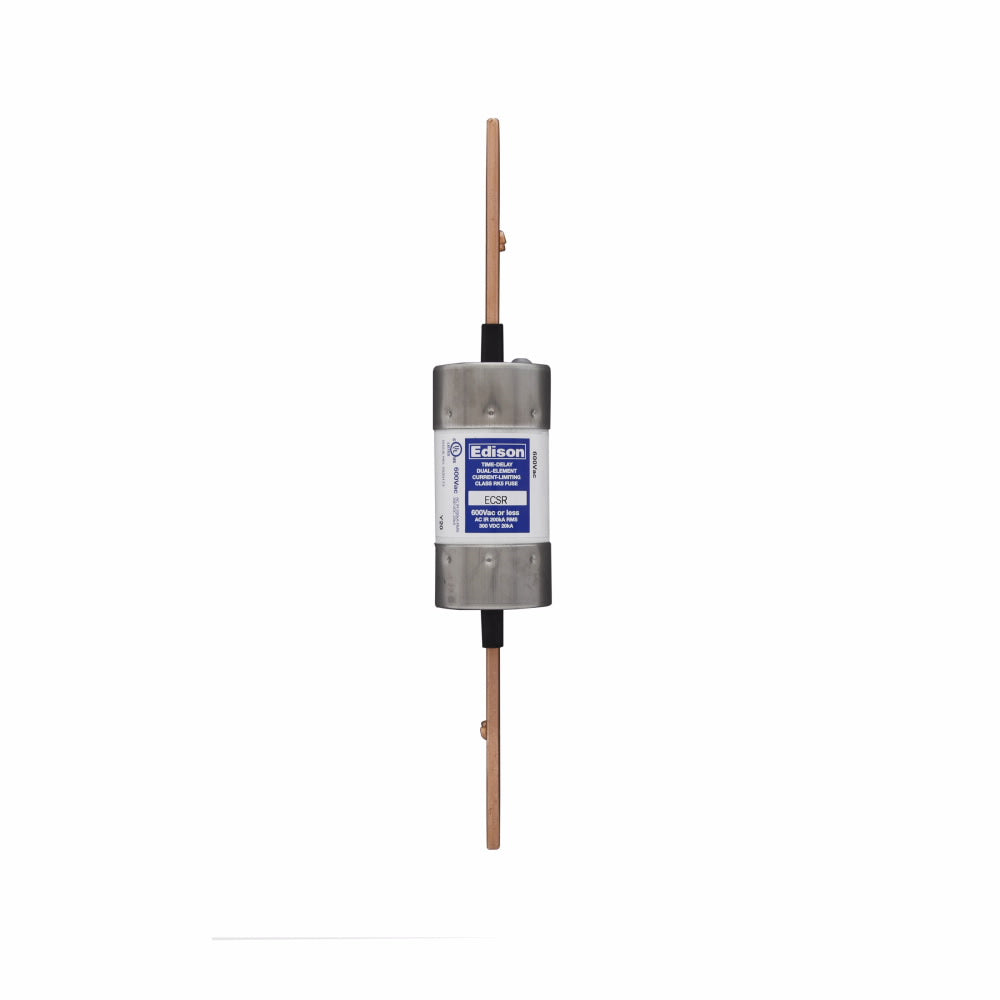

Edison Fuses ECSR110 - RK5 Class Fuse 110A@600V (200kA AIC)

Edison Fuses ECSR110 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. Rated for 600V AC/DC operation with a 110A current capacity, it features an RK5 class rating and 200kA interrupting capacity at 600V for high-fault protection. The compact cylindrical design measures 5" in length with a 1.61" diameter, constructed with durable materials for reliable performance. Compliant with industry standards for low-voltage fuses, it is commonly used in motor control centers, switchgear, and power distribution panels where robust short-circuit protection is required.

Key Features & Specifications

• Type: ECSR Series current-limiting fuse, single barrel construction
• Voltage: 600V AC/DC
• Current: 110A
• Dimensions: 5"L x 0.81"W x 0.81"H (127mm x 20.6mm x 20.6mm)
• Weight: 1 lb (0.45 kg)
• Diameter: 1.61" (40.9mm)
• Class Rating: RK5
• AIC Rating: 200kA@600V
• Standards: UL/CSA recognized
• Applications: Industrial power distribution, motor protection, switchgear

Product Identification

• UPC: 782634508441
• GTIN: 00782635000000
