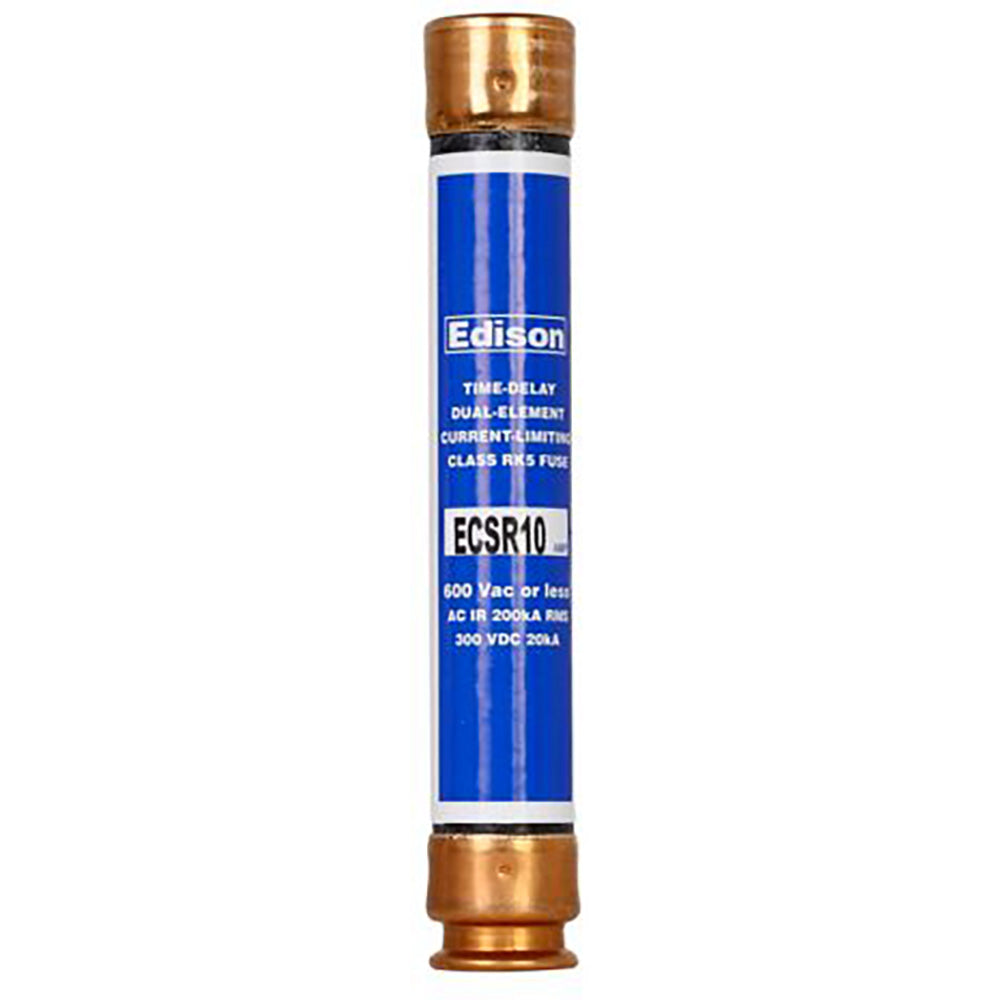

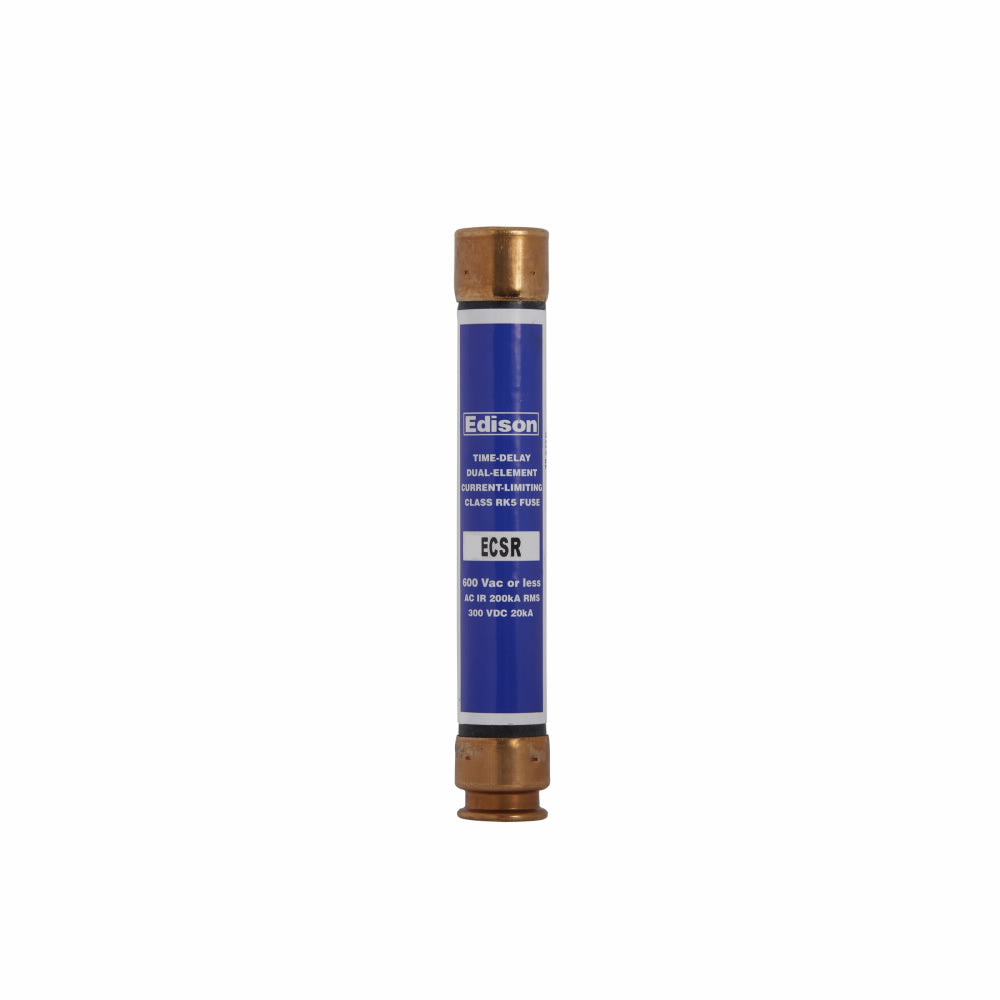

Edison Fuses ECSR10 - RK5 Fuse 10A 600V (200kA AIC)

Edison Fuses ECSR10 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. This 600VAC/VDC-rated fuse features a 10A current rating with a 200kA interrupting capacity at 600V, housed in a compact ferrule-style construction measuring 5" L x 1.11" W x 0.81" H with 0.81" diameter. Compliant with industry standards for RK5 fuses, it provides reliable overcurrent protection for motor control centers, panelboards, and industrial power distribution equipment.

Key Features & Specifications

• Type: RK5 time-delay fuse with ferrule connection
• Voltage Rating: 600V AC/DC
• Current Rating: 10A
• Dimensions: 5" L x 1.11" W x 0.81" H (0.81" diameter)
• Weight: 1.38 lb
• Standards: RK5 class rating
• AIC Rating: 200kA @ 600V
• Connection: Ferrule (single barrel)
• Applications: Motor protection, industrial power distribution, panelboards

Product Identification

• UPC: 78263450828
• GTIN: 00782634508281
