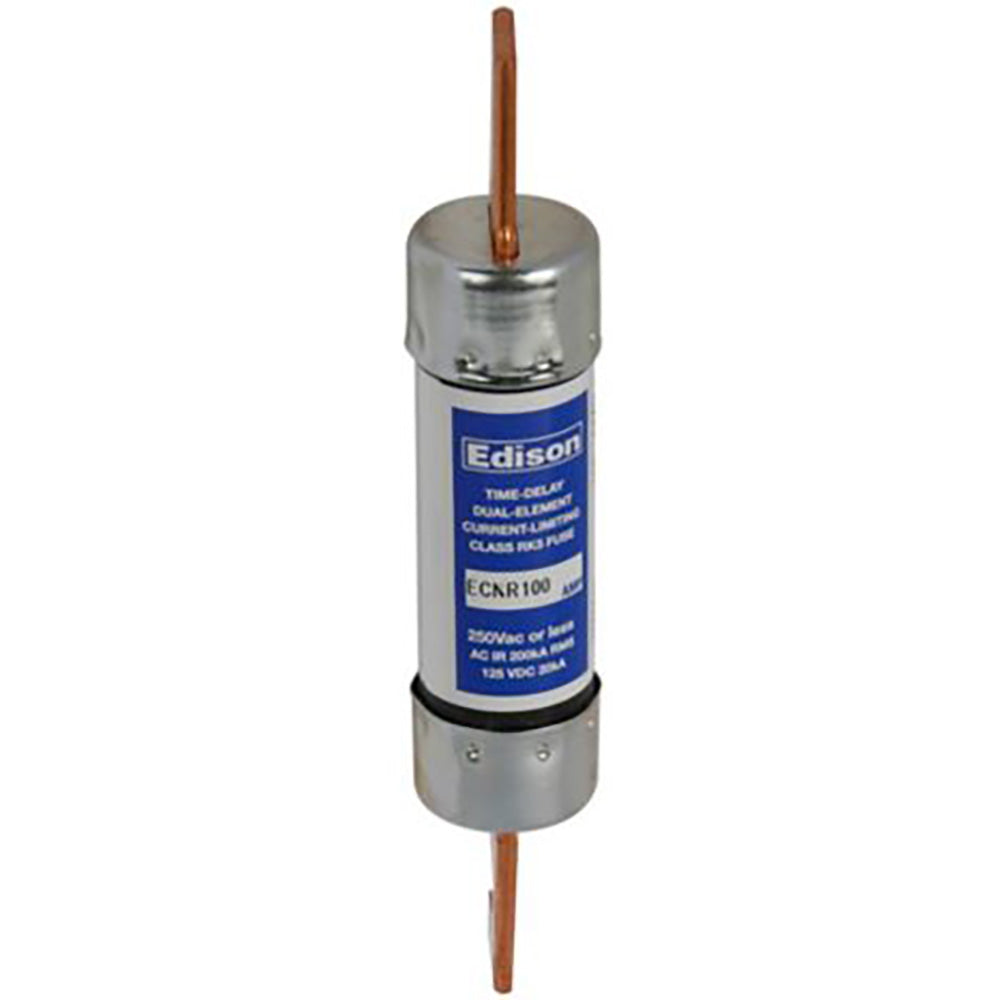

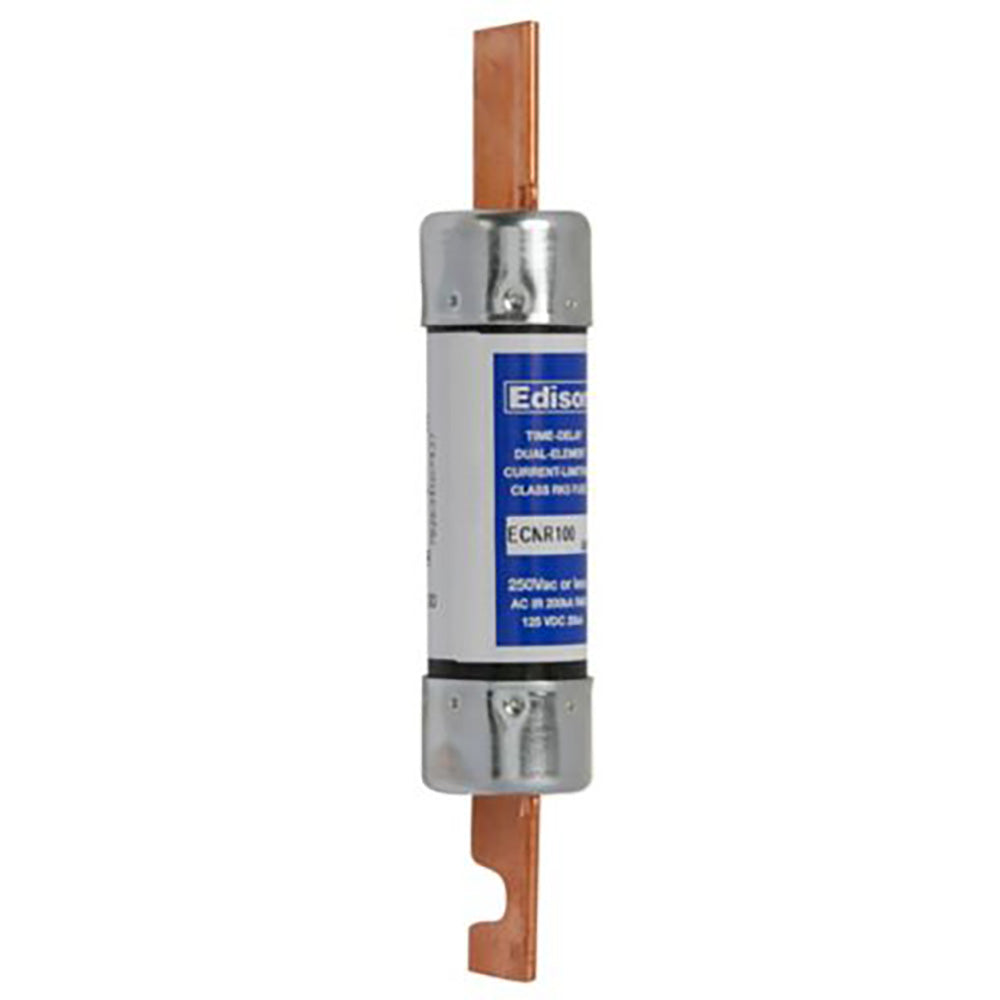

Edison Fuses ECNR90 - Class CC Fuse 90A@250V (200kA Interrupt Rating)

Edison Fuses ECNR90 is a Class CC low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 250V AC rating with a 90A current capacity and a high interrupting rating of 200kA@250V for reliable overcurrent protection. The fuse measures 5" (127mm) in length with a compact 0.81" (20.6mm) square profile and 0.41" (10.4mm) diameter, constructed with a single-barrel rejection blade connection for secure installation. Compliant with industry standards for Class CC fuses, it provides robust protection for control circuits, transformers, and motor branch circuits in commercial and industrial applications.

Key Features & Specifications

• Type: Class CC rejection blade fuse, single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 90A
• Dimensions: 5" L × 0.81" W × 0.81" H (127mm × 20.6mm × 20.6mm)
• Diameter: 0.41" (10.4mm)
• Weight: 1.4 lb
• AIC Rating: 200kA@250V
• Connection: Rejection blade
• Standards: Class CC fuse compliance
• Applications: Industrial control circuits, transformers, motor protection

Product Identification

• UPC: 78263450742
• GTIN: 00782634507420
