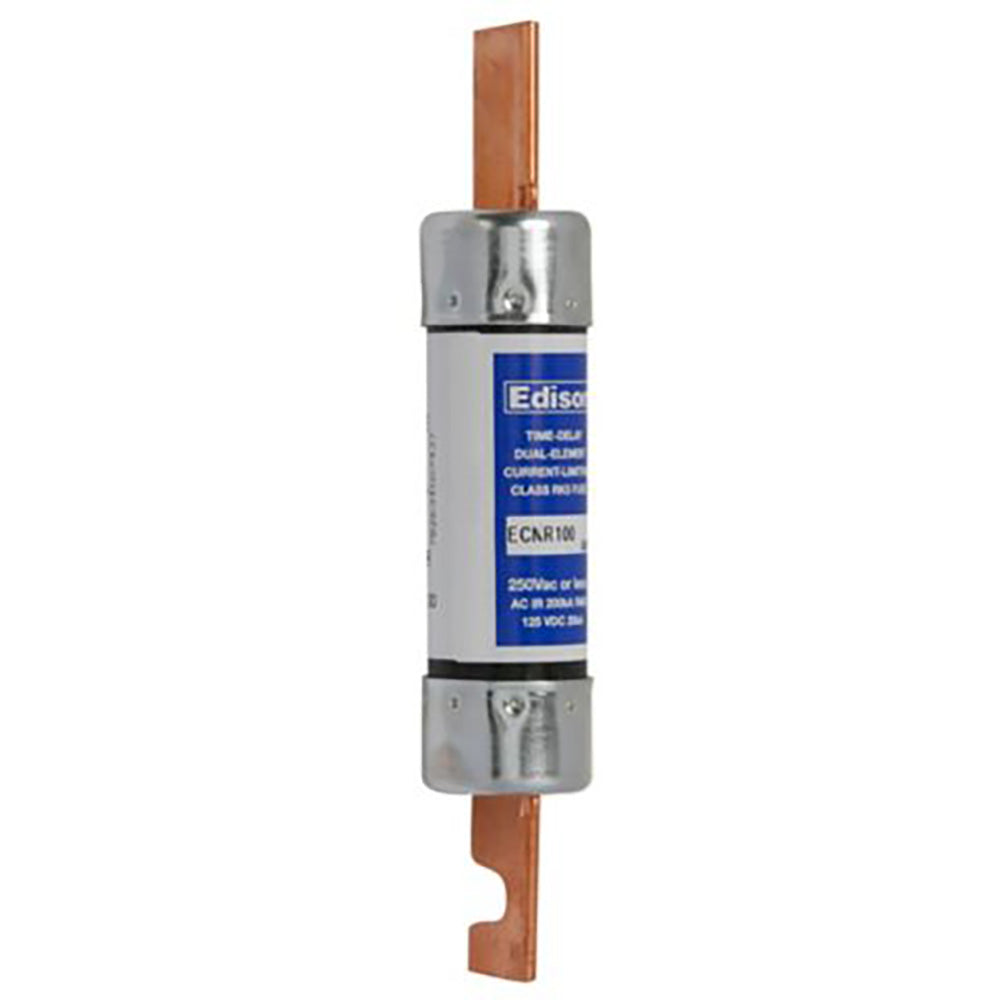

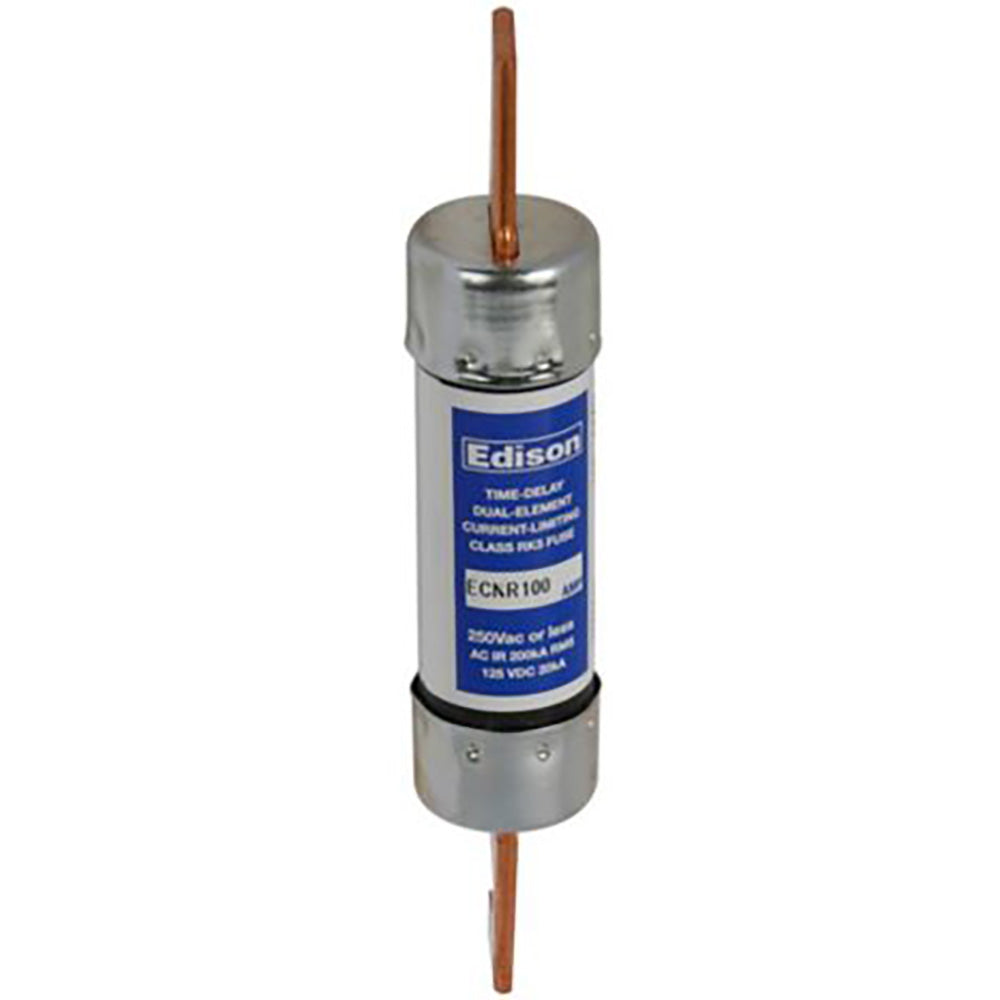

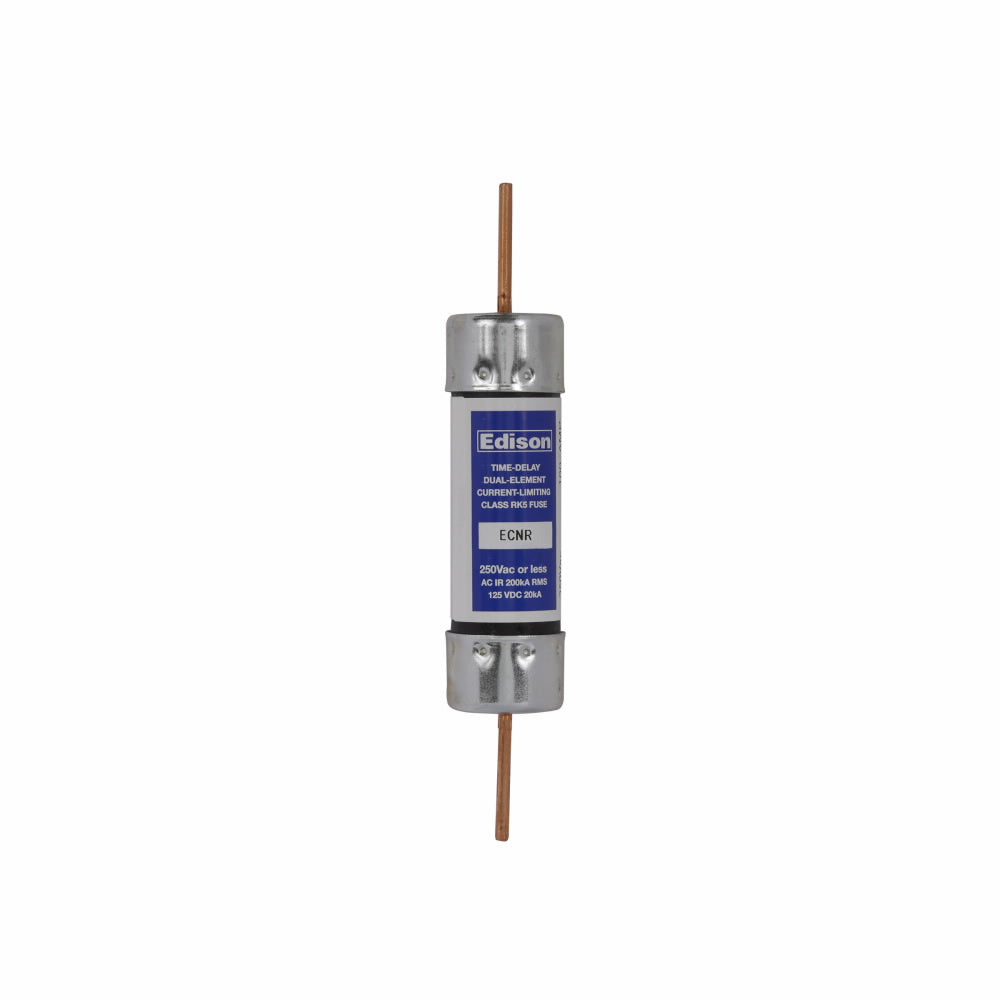

Edison Fuses ECNR70 - RK5 Time-Delay Fuse 70A (200kA@250V Interrupt Rating)

Edison Fuses ECNR70 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 70A current rating with a high interrupting capacity of 200kA at 250V. The fuse measures 5.88in in length with a 1.11in diameter rejection blade connection, constructed with a single-barrel design weighing 1.3 lb. Compliant with industry standards for RK5 fuses, it provides reliable protection for motor control centers, panelboards, and other power distribution equipment requiring time-delay characteristics.

Key Features & Specifications

• Type: Low-voltage time-delay fuse with rejection blade connection
• Voltage Rating: 250V AC
• Current Rating: 70A
• Dimensions: 5.88"L x 1.6"W x 1.6"H
• Standards: RK5 class rating
• Applications: Motor protection, panelboards, industrial power distribution
• AIC rating: 200kA@250V
• Connection: Rejection blade
• Barrels: 1
• Diameter: 1.11in
• Weight: 1.3 lb

Product Identification

• UPC: 78263450740
• GTIN: 00782634507406
