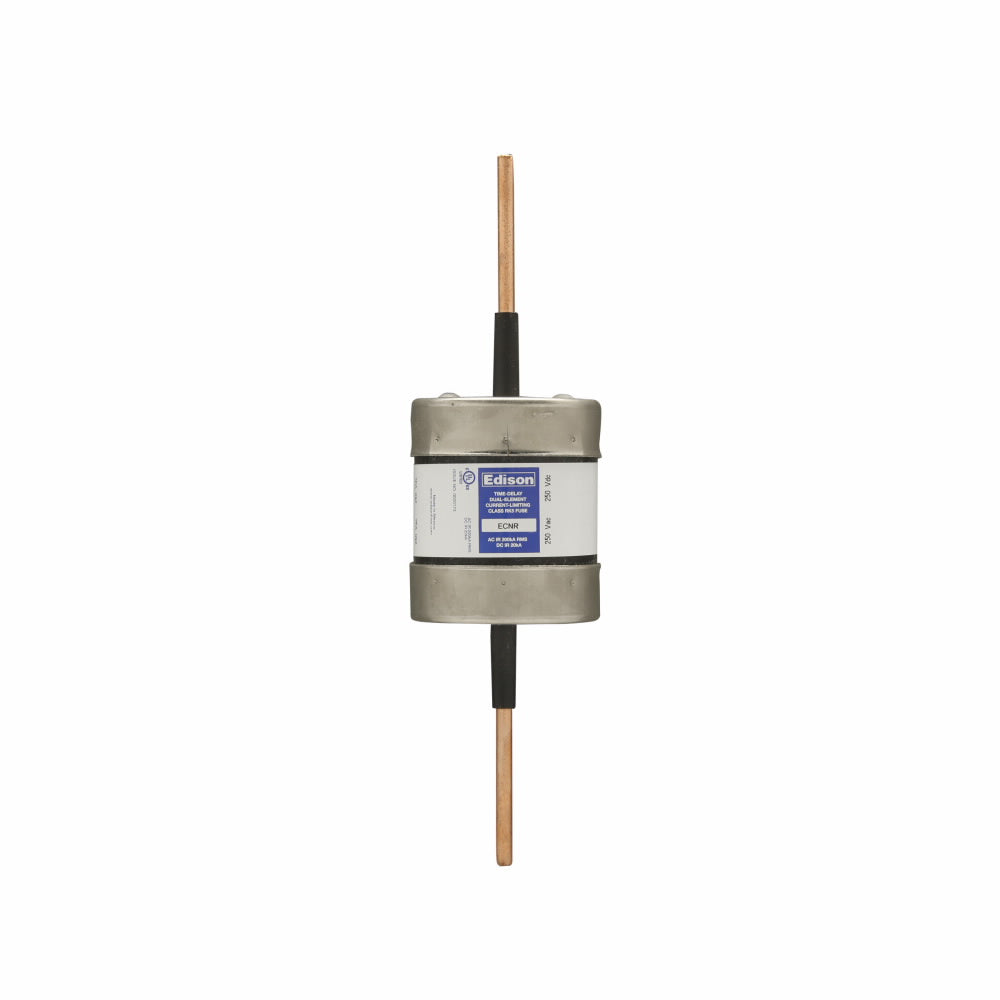

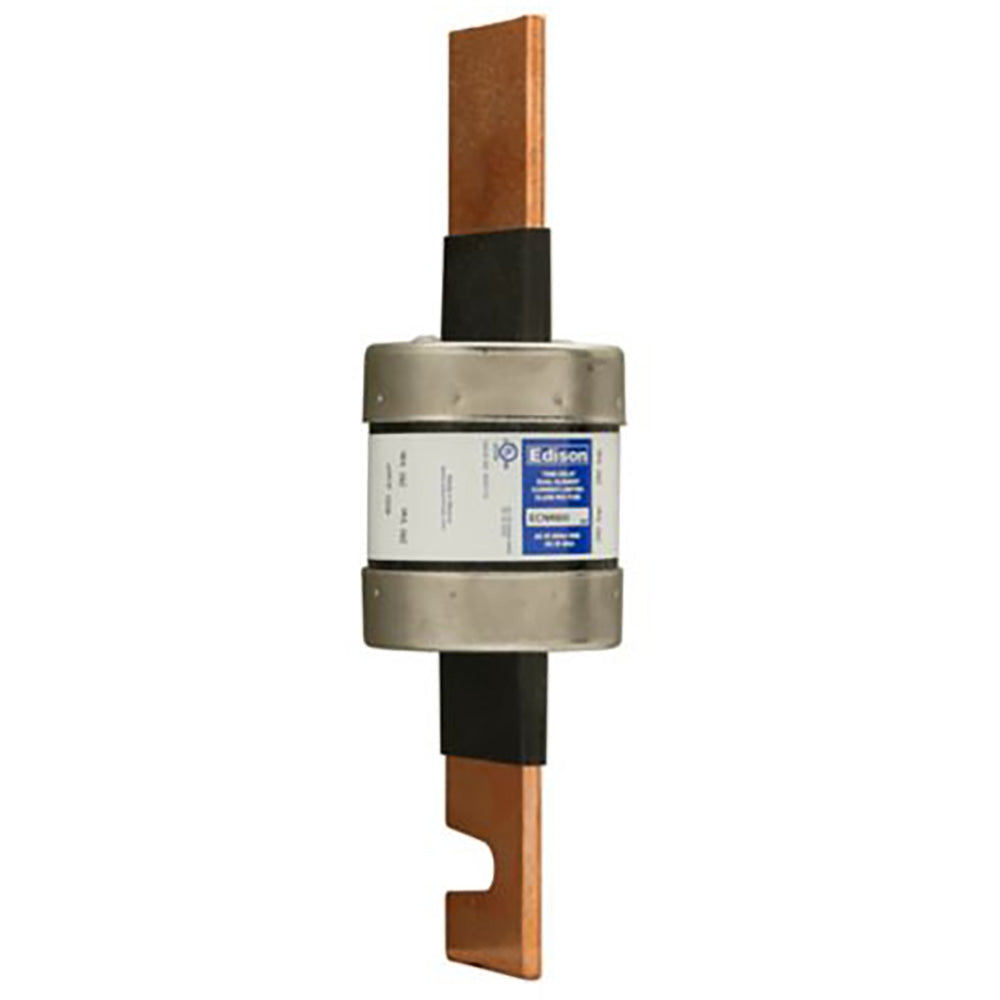

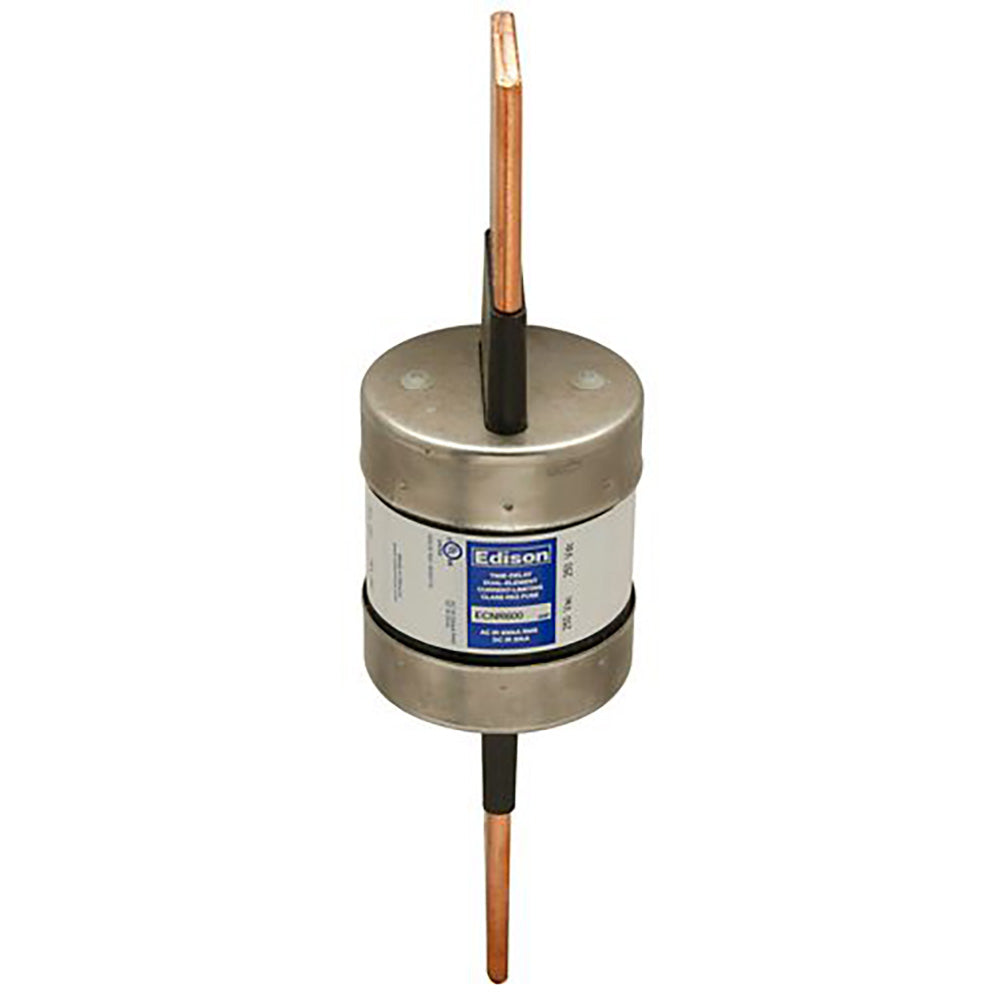

Edison Fuses ECNR600 - RK5 Current-Limiting Fuse 600A@250V (200kA AIC)

Edison Fuses ECNR600 is a low-voltage current-limiting fuse designed for industrial circuit protection with high interrupting capacity. This RK5-class fuse operates at 250V AC with a 600A current rating, featuring a compact 2in x 0.56in x 0.56in ceramic body construction weighing 3 lb. It meets industry standards with a 200kA interrupting rating at 250V and single-barrel design for reliable overload protection in demanding environments. Typical applications include motor control centers, switchgear, and industrial power distribution systems requiring fast-acting fault protection.

Key Features & Specifications

• Type: ECNR series current-limiting fuse with ceramic body
• Voltage Rating: 250V AC
• Current Rating: 600A
• Dimensions: 2" L x 0.56" W x 0.56" H (50.8mm x 14.2mm x 14.2mm)
• Standards: RK5 class rating
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@250V
• Barrels: 1
• Diameter: 2.88" (73.15mm)
• Weight: 3 lb (1.36kg)
• Country of Origin: Mexico

Product Identification

• UPC: 00782634507567
• GTIN: 00782634507567
