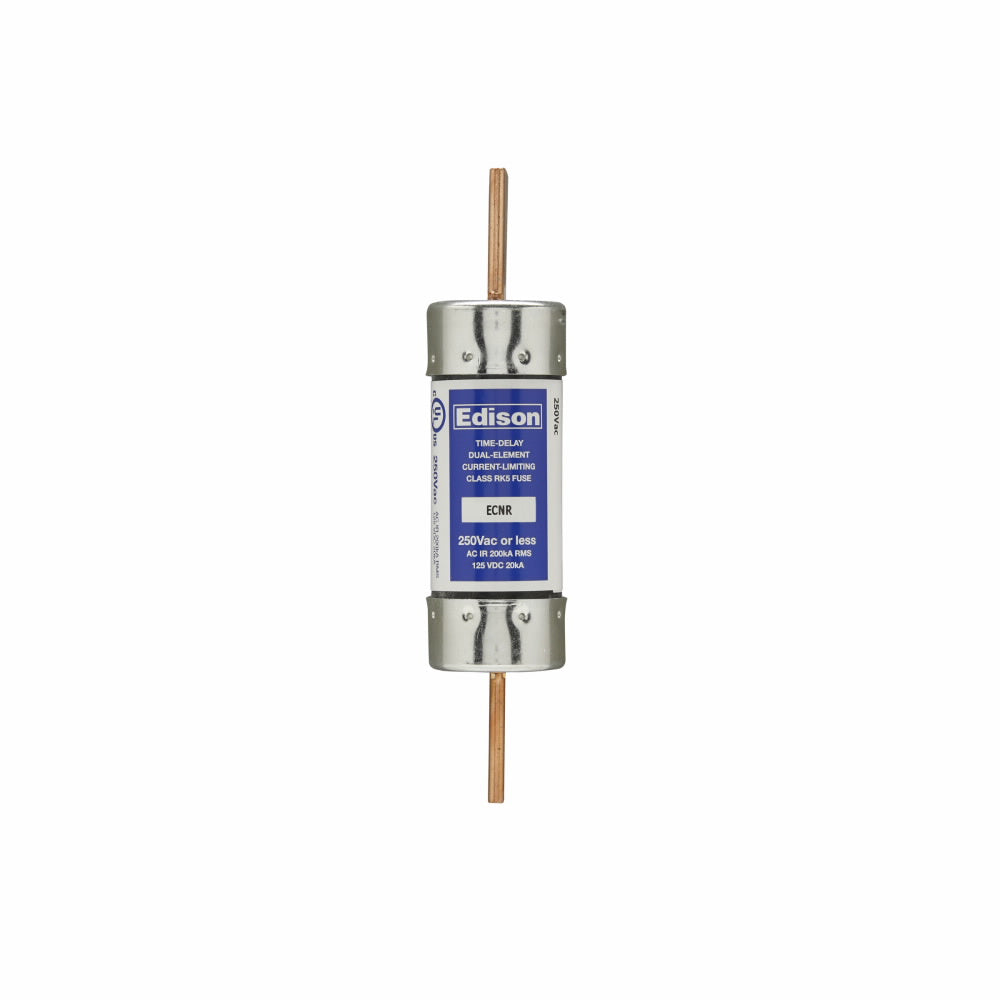

Edison Fuses ECNR200 - RK5 Current-Limiting Fuse 200A (200kA@250V Interrupt Rating)

Edison Fuses ECNR200 is a low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. It features a 200A current rating and 200kA interrupting capacity at 250V AC, housed in a compact RK5-class fuse body with rejection blade terminals for secure connections. The unit measures 8.63" x 2.38" x 2.38" (LxWxH) with a 1.56" diameter barrel construction, weighing 2.95 lb for robust mechanical stability. Compliant with industry standards for current-limiting fuses, it provides reliable protection against short circuits and overloads in motor control centers, switchgear, and industrial control panels.

Key Features & Specifications

• Type: ECNR Series current-limiting fuse with rejection blade connection
• Voltage Rating: 250V AC
• Current Rating: 200A
• Dimensions: 8.63" L x 2.38" W x 2.38" H
• Standards: RK5 class rating
• Applications: Motor control centers, industrial switchgear, power distribution
• AIC rating: 200kA@250V
• Connection: Rejection blade
• Barrels: 1
• Diameter: 1.56"
• Weight: 2.95 lb

Product Identification

• UPC: 782634507482
• GTIN: 00782634507482
