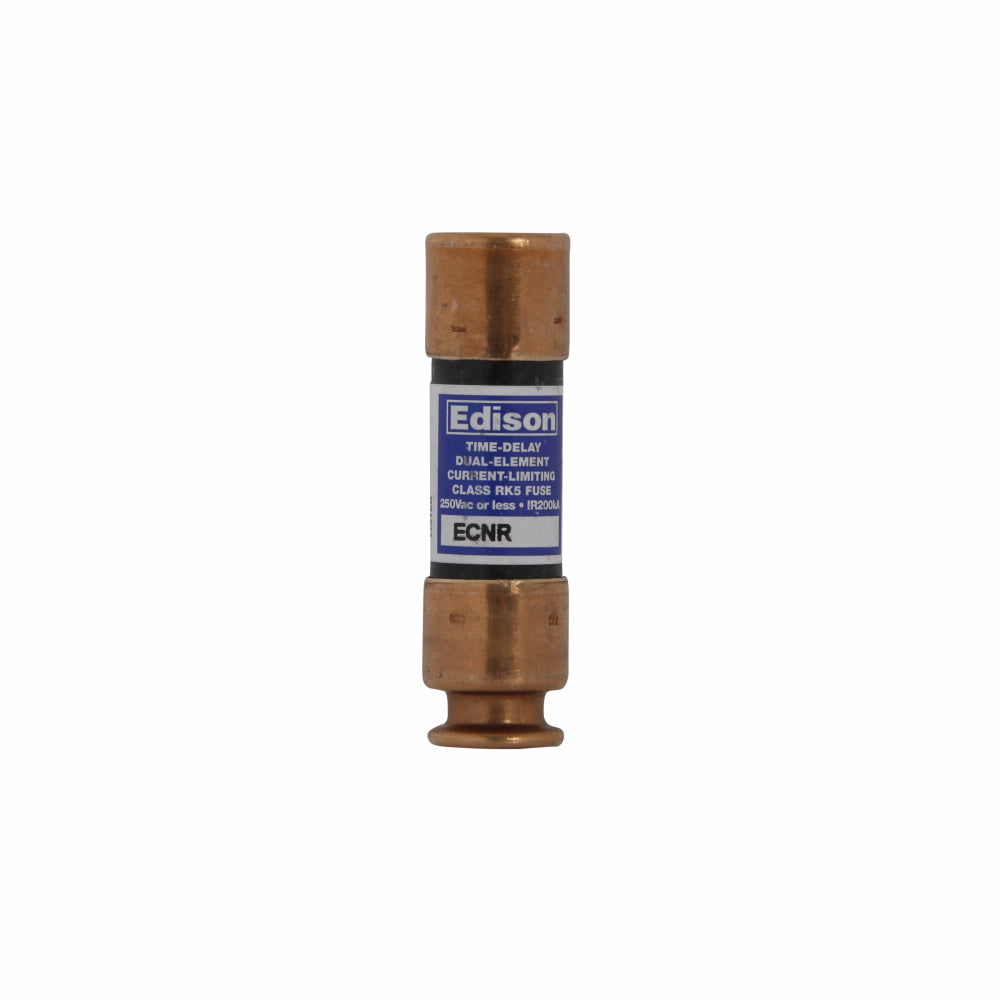

Edison Fuses ECNR2.8 - RK5 Time-Delay Fuse 2.8A (200kA AIC @250V)

Edison Fuses ECNR2.8 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. Rated for 250V AC/DC operation with a 2.8A current capacity, it features a compact ferrule connection design measuring 2" in length and 0.56" in diameter. The fuse meets industry standards with a 200kA interrupting capacity at 250V and is constructed for reliable performance in motor control centers, transformers, and power distribution panels.

Key Features & Specifications

• Type: RK5 time-delay fuse with ferrule connection
• Voltage Rating: 250V AC/DC
• Current Rating: 2.8A
• Dimensions: 2" (L) x 0.56" (H) x 0.56" (W)
• Standards: UL/CSA listed
• Applications: Motor protection, transformers, power distribution
• Class Rating: RK5
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@250V
• Weight: 1.5 lb

Product Identification

• UPC: 78263450717
• GTIN: 00782634507178
