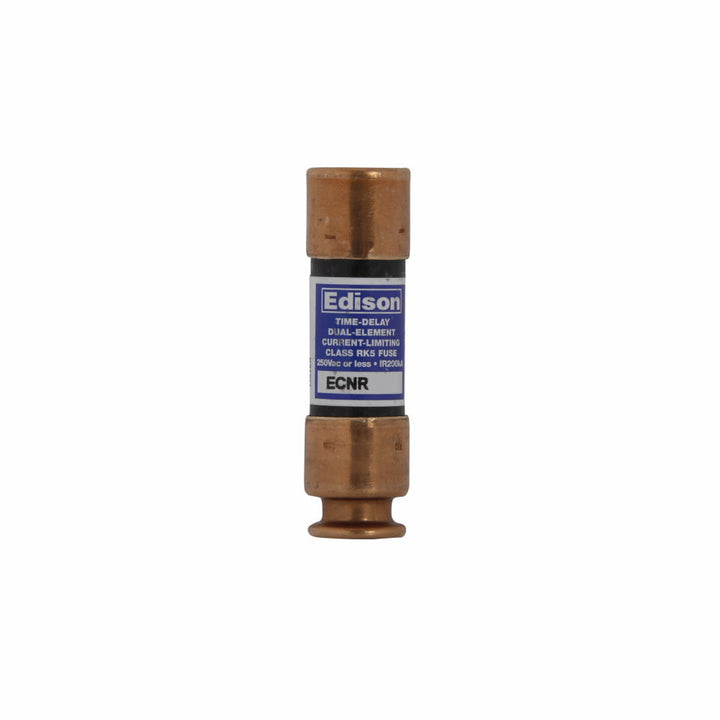

Edison Fuses ECNR15 - RK5 Time-Delay Fuse 15A 250V (200kA AIC)

Edison Fuses ECNR15 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 15A current rating with a high interrupting capacity of 200kA at rated voltage. The fuse has a compact cylindrical design with ferrule connections, measuring 7.13in in length and 0.56in in diameter, constructed to meet RK5 time-delay characteristics for motor circuit protection. It complies with industry standards for low-voltage fuses and is commonly used in panelboards, switchgear, and motor control centers for overload and short-circuit protection.

Key Features & Specifications

• Type: ECNR series time-delay fuse with ferrule connections
• Voltage Rating: 250V AC
• Current Rating: 15A
• Dimensions: 7.13"L x 1.56"W x 1.56"H
• Weight: 1.85 lb
• Diameter: 0.56"
• Class Rating: RK5
• Connection: Ferrule
• Barrels: 1
• AIC rating: 200kA@250V
• Standards: UL/CSA recognized
• Applications: Motor circuits, industrial control panels

Product Identification

• UPC: 782634507307
• GTIN: 00782634507307
