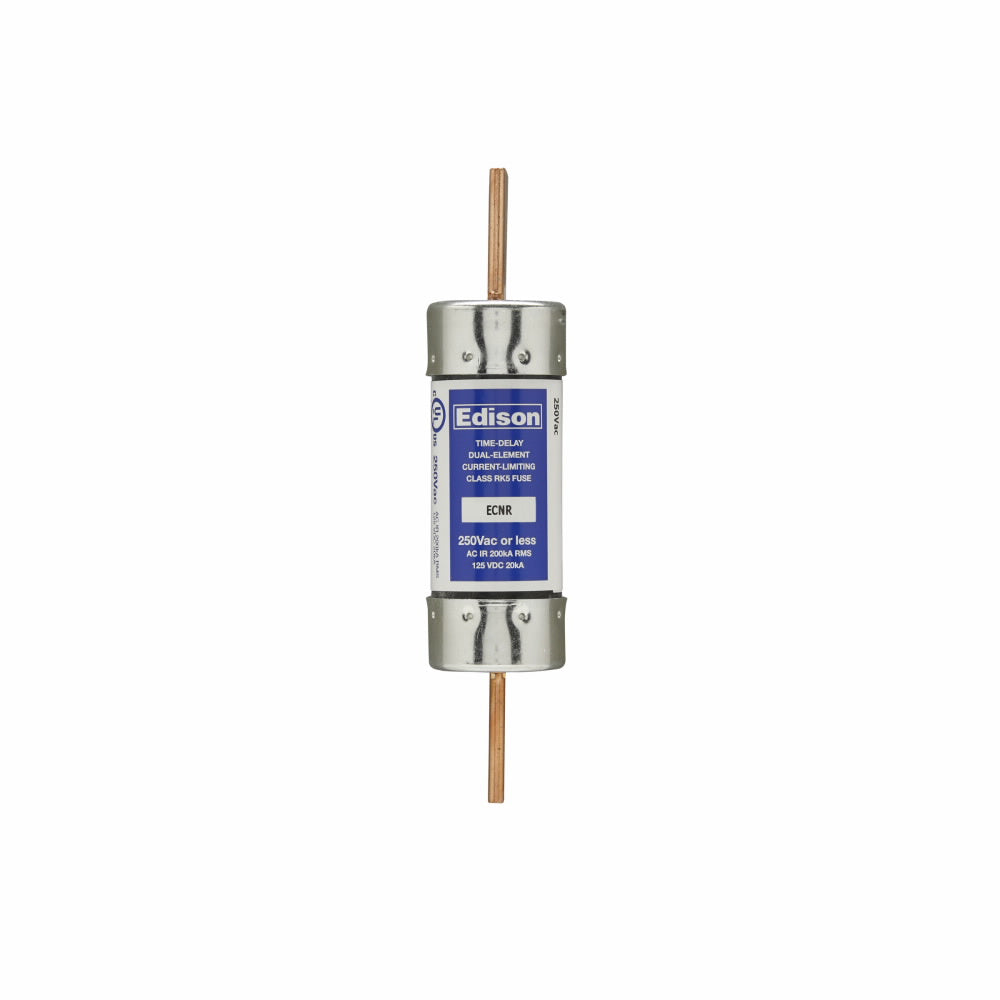

Edison Fuses ECNR125 - RK5 Fuse 125A (200kA@250V Interrupt Rating)

Edison Fuses ECNR125 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 125A current rating with a high interrupting capacity of 200kA@250V for reliable overload protection. The compact fuse (2"L x 0.56"W x 0.56"H) utilizes a single-barrel rejection blade connection design with durable construction meeting industry standards. Compliant with UL/CSA requirements, this fuse is engineered for motor control centers, panelboards, and other demanding applications requiring precise current limitation.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse (RK5 class)
• Voltage Rating: 250V AC
• Current Rating: 125A
• Dimensions: 2"L x 0.56"W x 0.56"H (50.8mm x 14.2mm x 14.2mm)
• Weight: 1.5 lb (0.68 kg)
• Diameter: 1.56" (39.6mm)
• Standards: UL/CSA listed
• Applications: Industrial panelboards, motor control centers
• Connection: Rejection blade
• Barrels: 1
• AIC Rating: 200kA@250V
• Class Rating: RK5

Product Identification

• UPC: 78263450745
• GTIN: 00782634507451
