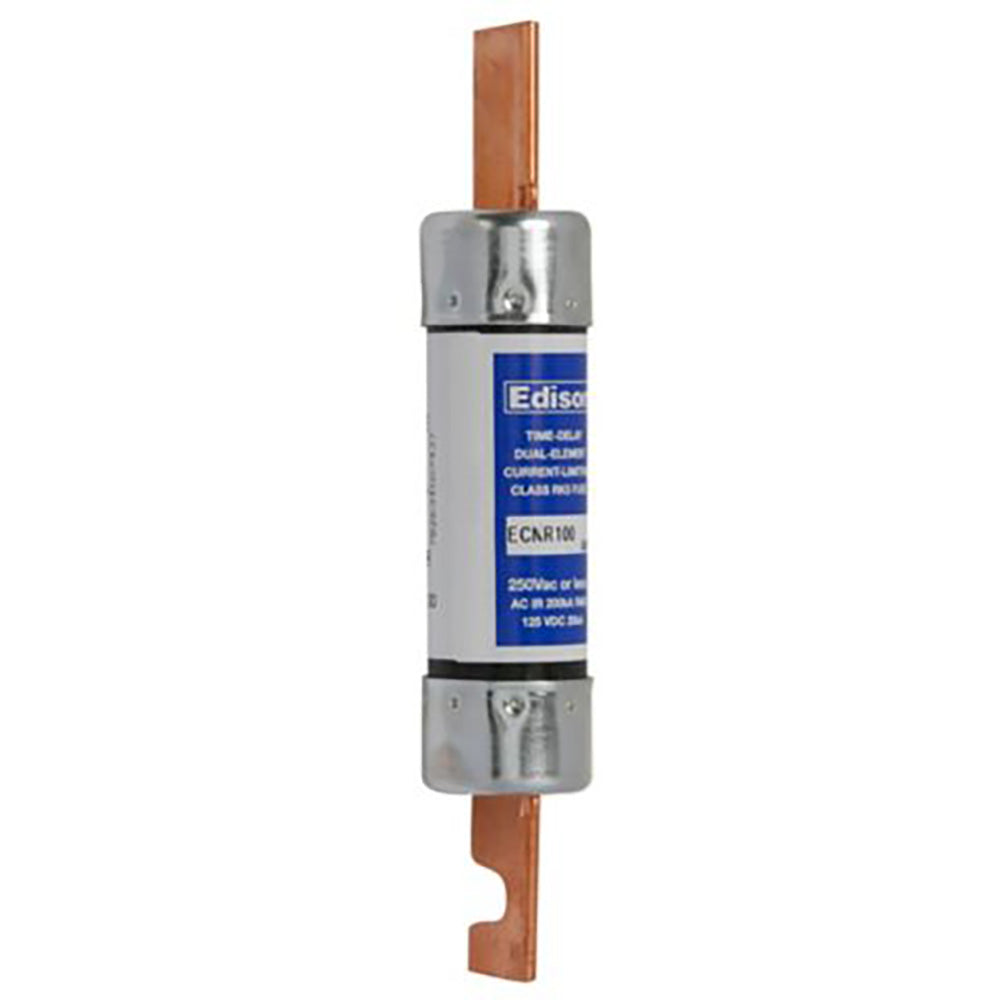

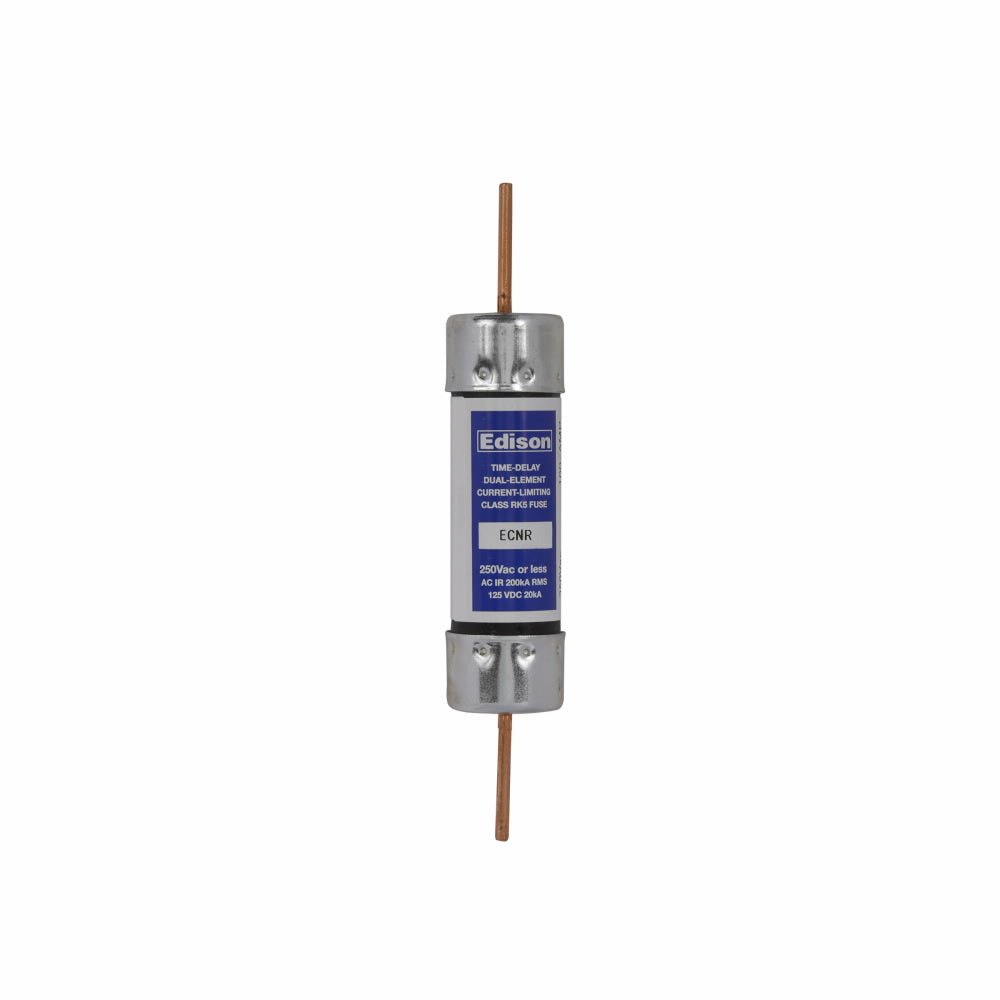

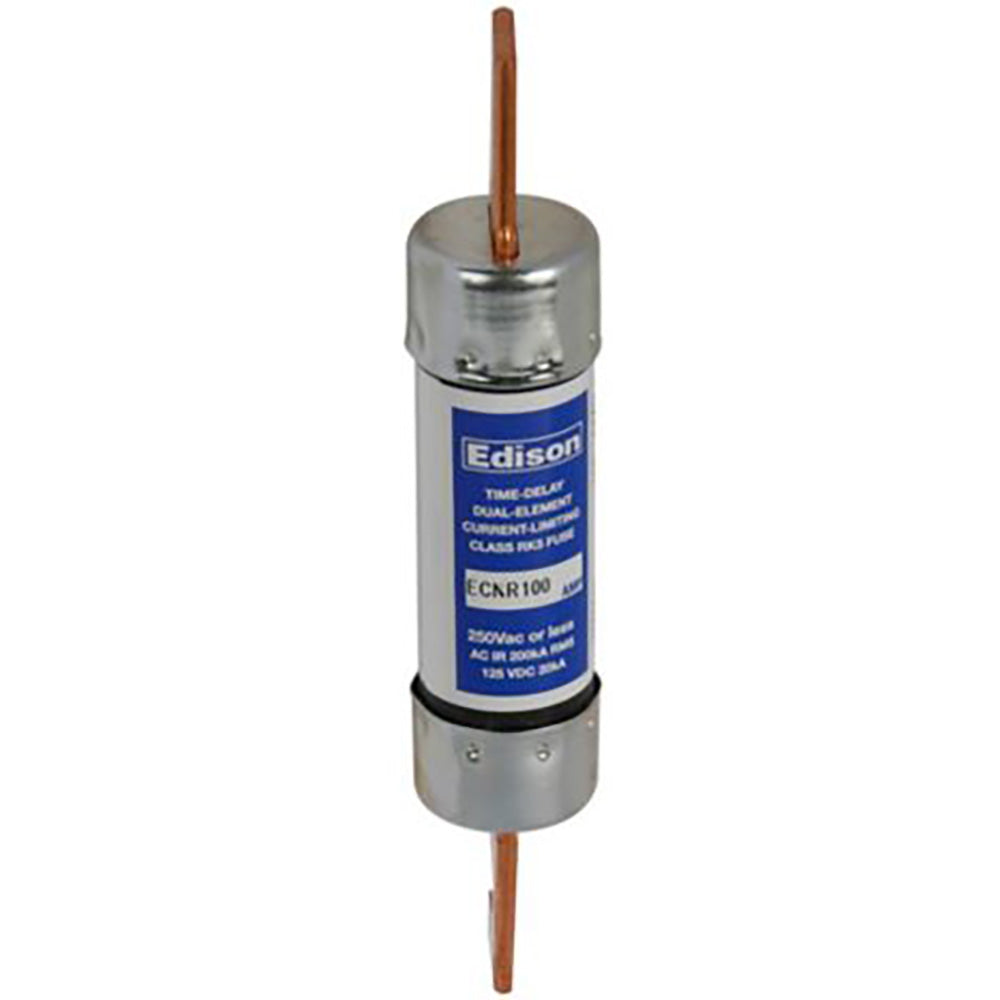

Edison Fuses ECNR100 - RK5 Class Fuse 100A@250V (200kA AIC)

Edison Fuses ECNR100 is a low-voltage RK5 class fuse designed for circuit protection in industrial electrical systems. It features a 250V AC voltage rating and 100A current rating with a high interrupting capacity of 200kA at 250V. The fuse measures 7.13in in length with a 0.56in diameter rejection blade connection in a compact 1.56in x 1.56in form factor weighing 1.85 lb. Compliant with industry standards for RK5 fuses, it provides reliable protection for motor control centers, panelboards, and industrial power distribution equipment.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse with single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 100A
• Dimensions: 7.13"L x 1.56"W x 1.56"H
• Standards: RK5 class rated
• Applications: Industrial power distribution, motor protection
• Connection: Rejection blade
• Barrels: 1
• AIC rating: 200kA@250V
• Diameter: 0.56in
• Weight: 1.85 lb

Product Identification

• UPC: 78263450743
• GTIN: 00782634507437
